Ultrasound scanner
An ultrasound scanner is a piece of medical equipment that provides images of most soft tissues without subjecting patients to ionizing radiation. In other words, it obtains diagnostic images from echoes obtained by emitting ultrasonic waves (the most common). A small instrument called a transducer, very similar to a microphone, emits ultrasound waves. These high-frequency sound waves are transmitted to the area of the body being studied, and their echo is received. The transducer picks up the echo of the sound waves and a computer converts it into an image that appears on the screen.
Ultrasound is a high-frequency sound wave (over 20,000 cycles per second, or 20 kHz) that cannot be heard by humans. Different tissues modify the waves in different ways, some reflecting them directly and others scattering them as echoes before they reach the transducer.
Types of Ultrasound Scanners that a Laboratory may require
Ultrasonic diagnostic equipment
This hand-held ultrasound device is small and very inexpensive, and has the advantages of making ultrasound scans simpler, plus it allows you to be anywhere inside the hospital, facilitating the doctor's visit to the patient's body; it is used in a variety of applications in different departments, the widest for a single ultrasound probe, making it a diagnostic imaging device for the whole body, in urological, abdominal, fetal, cardiovascular, gynecological and musculoskeletal applications, among others.
Ultrasonic Color Doppler Diagnostic System
Ultrasound refers to sound waves emitted at frequencies beyond the range of human hearing. Frequencies ranging from 2 to 15 megahertz (MHz) are generally used for diagnostic imaging. Ultrasonic waves are mechanical (acoustic) vibrations that require a transmission medium and, as they exhibit the normal wave properties of reflection, refraction and diffraction, they can be directed, focused and reflected in a predictable manner.
ULTRASOUND SCANNER KALSTEIN
At Kalstein, you'll find the ideal Ultrasound Scanners for the Medical Sector
Color Doppler Ultrasound 128 Elements Good Quality YR05151
Model CF+B simultaneously, PDI, DPDI, TDI, TSI, supports trapezoidal images, convex
matrix...

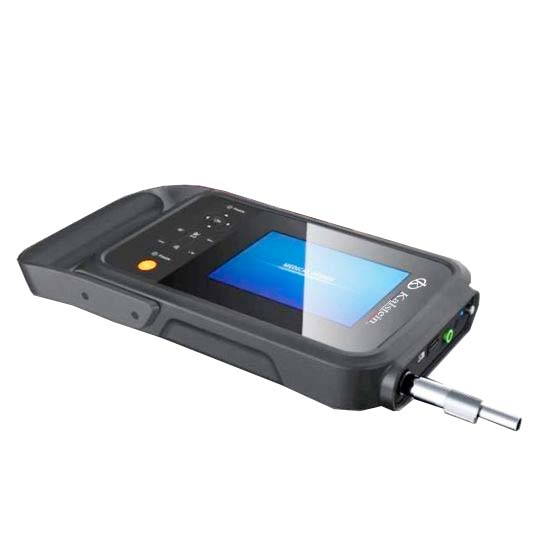

Veterinary Ultrasound with Professional Rectal Probe YR05146
The rest of the performance is the same as that of the notebook, such as the...

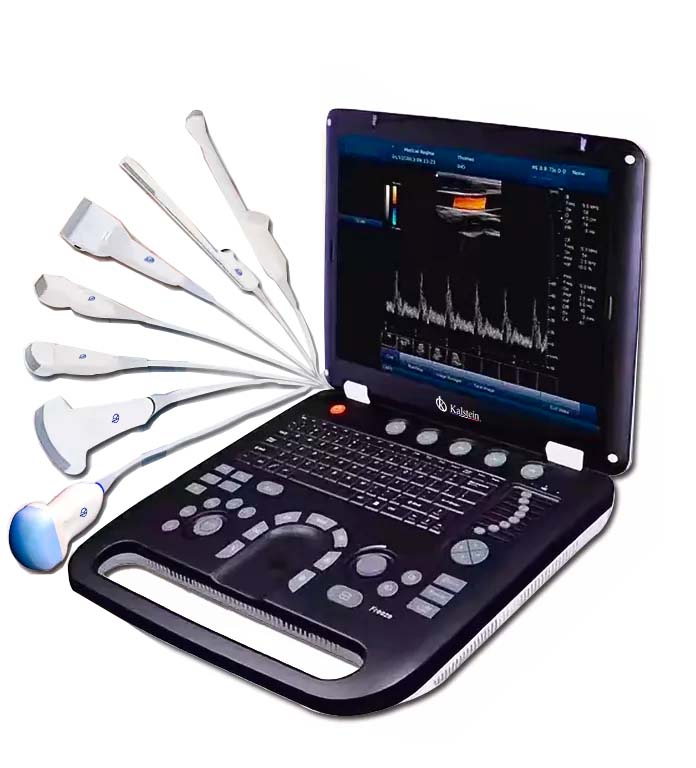

Color Doppler ultrasound screen 15 inch Heart Test, Pregnancy YR05152
CF+B model simultaneously, PDI, DPDI, TDI, TSI, supports trapezoidal images, virtual...

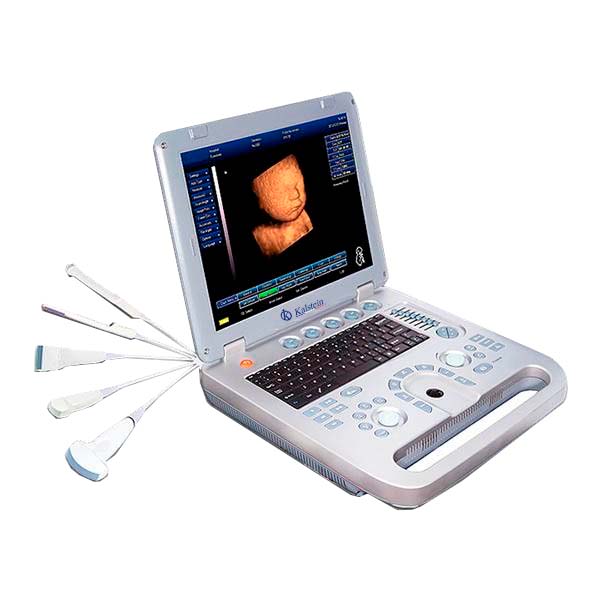

Obstetric ultrasound 3D4D GYN YR05147
6 types of reports and automatic measurements for obstetrics/gynecology, cardiology, urology...
Our best-selling Ultrasound scanner
- Large 15" color LED displayReal Doppler function USB and VGA ports and 2 probe connectors.
Application: - Abdomen/cardiac/gynecology/urology/andrology/small parts/vascular/pediatric/musculoskeletal
- Image modes: B 2B... 4B M B/C/B/D/B/C/D/B/CFM/D PDI Dual color
- Simultaneous color 2D/Color composite PW duplex/Triplex... CFM... CDE Directional PD CD
- Computer-based Doppler Color with Windows system, which can be connected to any brand of printer.
Model | YR05153 | |
Physical specifications | ||
Packing Size | 96cm×75cm×135cm | |
Packing Weight |
165kg |
|
Connectivity/Media/Peripherals | ||
Port Transducer |
two | |
USB ports | two | |
128 hard drive |
128GB (SSD) 120G/200GB SSD (optional) |
|
Printing area | Image, report, image + report | |
Ethernet port | 2(100Mb/1000Mb) | |
External screen | hdmi-vga | |
printer (optional) | USB Printer, Digital Laser Printer, Digital Thermal Printer B/W | |
Hardware specifications of the LED monitor | ||
Size |
fifteen” | |
Contrast Ratio | 800: 01: 00 | |
Resolution | 1024 * 768 pixels | |
Brightness | 230 cd / m2 | |
Depth of color | 24bit | |
Rotate angle | ± 90 ° | |
Gray Levels | 256 | |
General performance |
Digital broadband | 12288 channels |
Haz-ex. | Re-programmable | |
Transmit tension | Adjustable (15 steps) | |
Beam-frequency range above |
1 ~ 40 MHz |
Catalog of Ultrasound Scanner models on offer
-

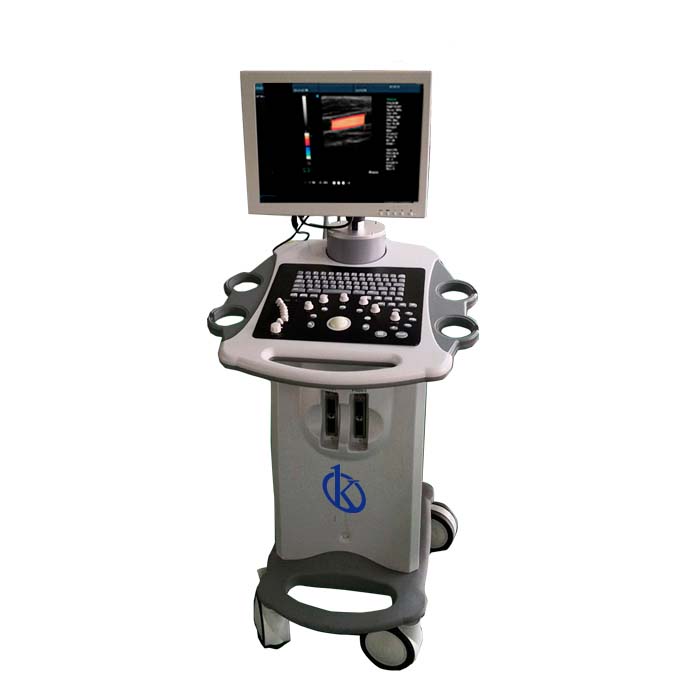

Portable Ultrasound Scanner Cart, Color Doppler Ultrasound Machine YR05153
-
Color Doppler Ultrasound 128 Elements Good Quality YR05151
-
Color Doppler Ultrasound Cart with Wheels 3D Model YR05149
-

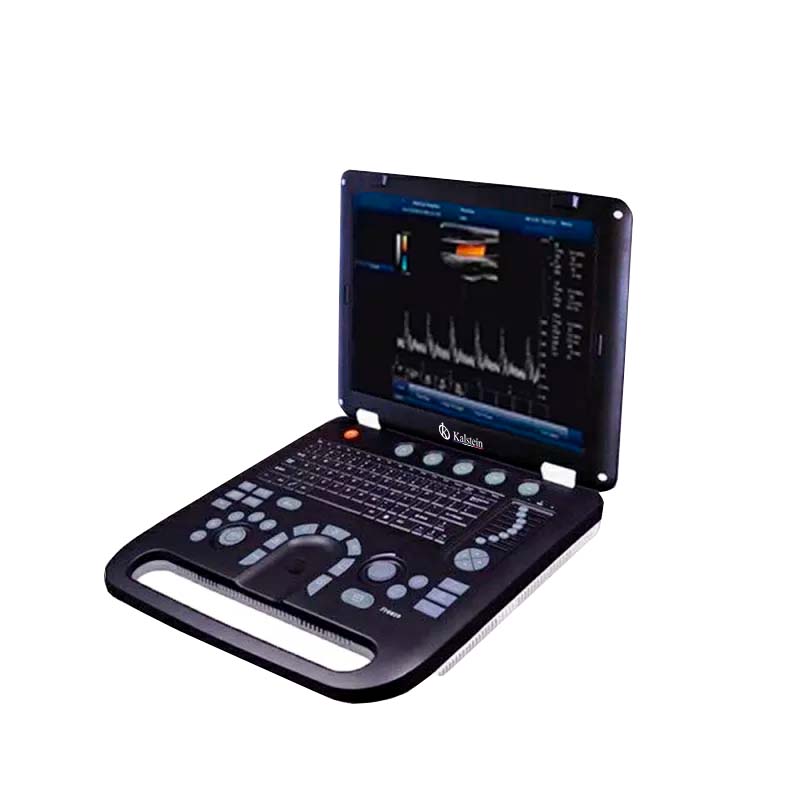

128 Item 3D Medical THI Ultrasound Machine For Sale With Convex Probe YR05148
-

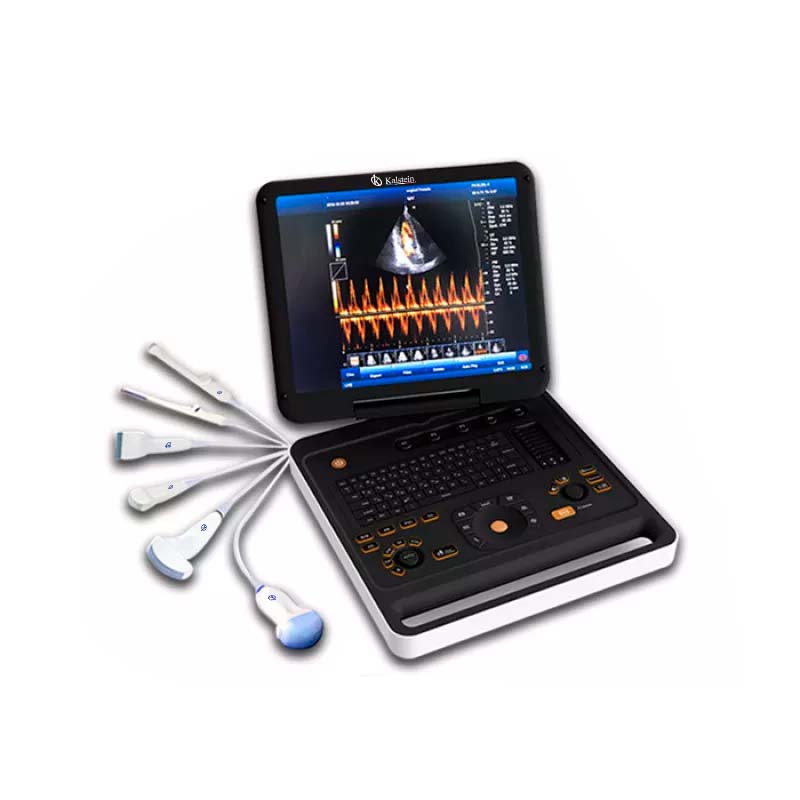

Color Doppler YR05150
-
Color Doppler ultrasound screen 15 inch Heart Test, Pregnancy YR05152
-
Veterinary Ultrasound with Professional Rectal Probe YR05146
-
Obstetric ultrasound 3D4D GYN YR05147
Guides to becoming an Ultrasound Scanner expert
Importance of Ultrasound Scanner in the diagnosis of endocrine diseases
The ultrasound scanner has become one of the most valuable diagnostic tools
How to Use an Ultrasound Scanner to Detect Fetal Abnormalities?
Ultrasound scanners use powerful ultrasounds to take pictures of the inside of
Use of Ultrasound Scanning in the Diagnosis of Kidney Diseases
Ultrasound is a diagnostic imaging technique that uses high-frequency sound
The Application of Ultrasound in Cancer Diagnosis
Medical ultrasound is an extremely useful tool for diagnosing cancer. Ultrasound can be
Frequently asked questions from our customers about Ultrasound Scanners
How can I find out about Ultrasound Scanner prices?
For Ultrasound Scanner prices, please send us an e-mail with your request via the contact form.
What are the delivery times for Ultrasound Scanners?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to buy an Ultrasound Scanner?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
All Kalstein equipment has a 1-year warranty against manufacturing defects. The warranty does not cover damage caused by poor installation or operation by the user, transport defects or by uses other than those specified by the manufacturer. Warranty excludes electrical or consumable parts. For more information visit our “Terms and Conditions ” by clicking HERE
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our channel Youtube (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
