Electrosurgical Unit
The electrosurgical unit is a medical equipment that uses heat-generating electrical phenomena; to achieve effects such as clotting, flushing, drying or cutting tissues, depending on the action desired by the medical operator. This is achieved, thanks to heat production by the passage of an oscillatory electric current, concentrated in a small area.
The use of this medical equipment during electrosurgeries gives rise to precise incisions without the need to exert pressure on the tissues, as well as its use allows easy access to difficult or compromised areas, offer excellent comfort in lifting hypertrophic tissues, facilitate the containment of hemorrhages and the healing of gingival tissues, and also prevent the infiltration of microorganisms in the incision line caused in surgery.
Types of Electrosurgical Unit that may be needed in a Medical Sector
Electrosurgical Generators YR02144
The electrosurgical generator has an easy to use interface...

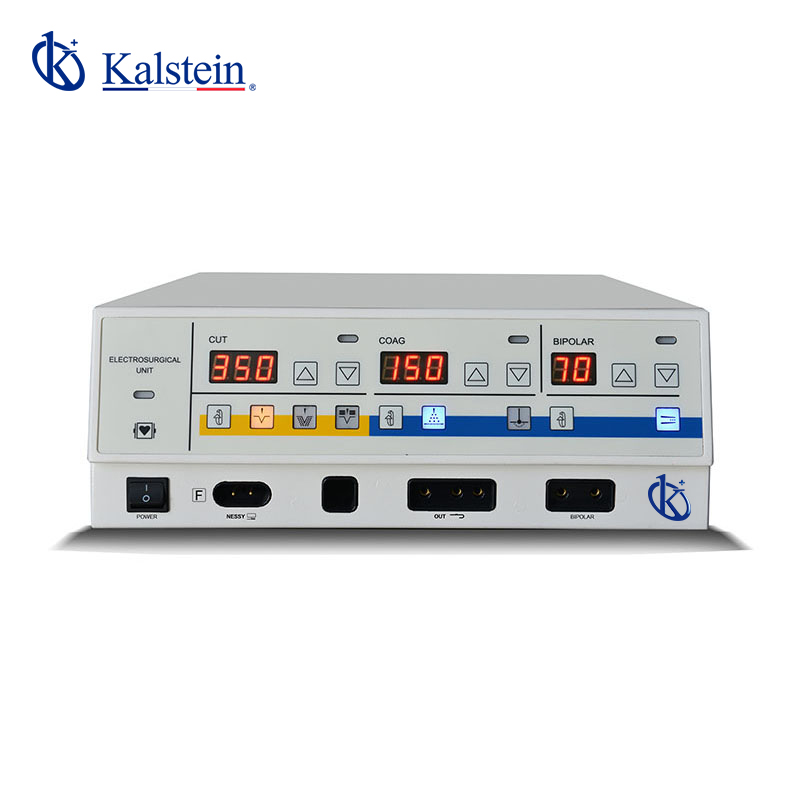

Electrosurgical Generators YR02145
YR is applicable in various surgeries such as...

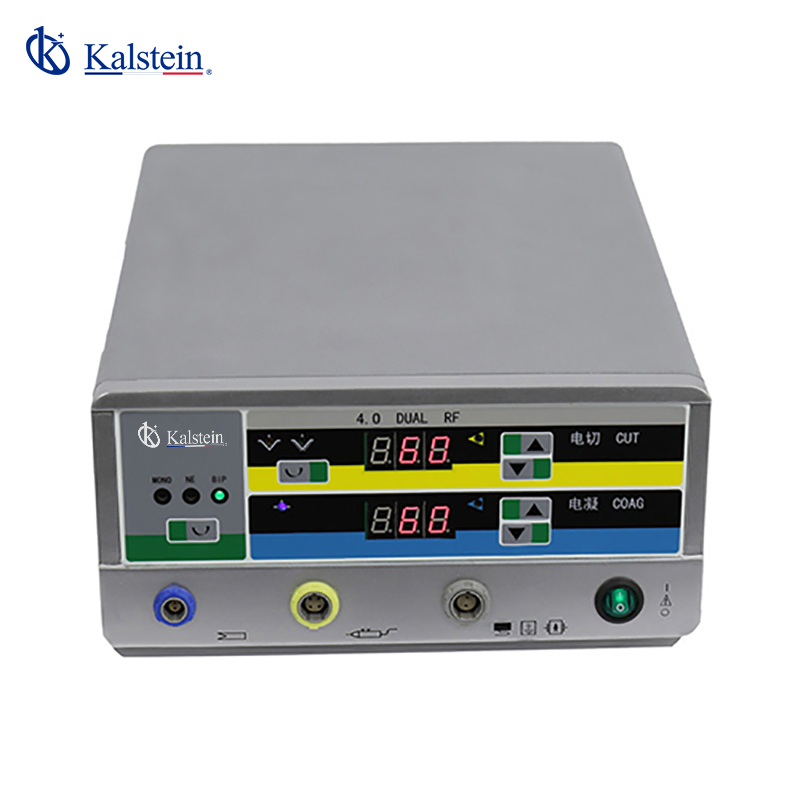

Electrosurgical Generators YR02147
It features isolated output, all floating...
Our best-selling Electrosurgical Unit
- It realizes automatic recognition of return electrode, whether solid or spilt.
- It offers automatic current monitoring and program memory functions.
- The argon module is optional for enhanced cutting and coagulation.
- Optional adaptor for laparoscopy and thoracoscopy application.
- The electrosurgical generator has an easy to use interface.
- It features isolated output, all floating.
Model | YR02144 | |||
Monopolar | ||||
Cutting mode | Max. Output power (watts) | Load (ohms) | Open circuit Vp-p | Crest factor |
Pure | 400 watts | 500 Ω | 2,300v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Mix 1 | 300 watts | 500 Ω | 2,700v | Sun Jan 02 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Mix 2 | 200 watts | 500 Ω | 3,200v | Mon May 02 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Mix 3 | 150 watts | 500 Ω | 3,700 v | Mon Jan 03 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Coagulation mode | ||||
Point | 120 watts | 500 Ω | 5,600v | Thu Jan 06 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Gentle | 120 watts | 500 Ω | 3,400 v | Thu Jan 06 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Spray | 120 watts | 500 Ω | 8,500 v | Tue Mar 08 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Bipolar | ||||
Cutting mode | ||||
Standard | 70 watts | 200 Ω | 1,450v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Coagulation mode | ||||
Standard | 70 watts | 500 Ω | 240v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Precise | 70 watts | 200 Ω | 360v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Connecting accessories and supplies | ||||
Finger pencil | two | |||
Foot switch pencil | one | |||
Patient return electrode | one | |||
Foot switch | one | |||
Ac power supply | one | |||
Potential equalization | one | |||
Power characteristic | ||||
Rate frequency | 512 kHz (110 / 240vAC, 60 / 50Hz) | |||
Isolated output | YES | |||
Quantitative visualization of the contact area | YES, for the «Split» type of neutral electrode | |||
Contact area indicator lamp | 10 lamps (one for 10% contact), alarm beep and flash if contact <20% | |||
Definition of Solid / Split Neutral Electrode | YES, the ‘Split’ or ‘Solid’ indicator light comes on | |||
Adjustable alarm volume | YES | |||
Operating duty cycle | 10 seconds ON, 30 seconds OFF | |||
Cooling method | Convection | |||
Regulation | ||||
Type According to EN 60601-1 | CF | |||
Protection class according to EN 60601-1 | class I | |||
Classification acc. According to MDD 93/42 / EEC | IIb | |||
Physical | ||||
Dimension (WxDxH) | 460 x 410 x 160 mm | |||
Weight | 11.2 kg |
