Ph meters
A pH meter is a laboratory instrument for scientific use, which measures the activity of the hydrogen ion in aqueous solutions, indicating its degree of acidity or alkalinity expressed as pH, is used in laboratories and in multiple other fields or areas; a pH measurement can be obtained using pH indicators or tapes, or meters such as pH meters, portable meters or pH electrodes.
This pH meter instrument makes a measurement of the pH by a potentiometric method, based on the fact that between two solutions with different H + a potential difference is established, which determines when the two solutions come into contact a flow of electric current occurs, in practice the pH measurement is relative, since the pH of a sample is compared with that of a known pH standard solution.
Types of pH meters a Laboratory may need
Portable
Portable pH/ion meter: calibration from 2 to 5 points, selectable ion concentration units and is required to measure pH, mV and ion concentration, accuracy 0.5% FS. (there are a variety of models).
You should keep in mind that the most accurate measurements are obtained using a pHmeter. The measurement system is made up of three parts: a pH measurement electrode, a reference electrode and a high input impedance meter. The pH electrode can be considered as if it were a battery, with a voltage that varies according to the pH of the measured solution. The electrode that measures pH is a glass bulb sensitive to hydrogen ions, with an output in millivolts that varies according to changes in the relative concentration of hydrogen ions inside and outside the bulb. The output of the reference electrode does not change with the activity of the hydrogen ions.
Table pH meters
Desktop pH meter: it is equipped with a 7-inch TFT screen, 1 to 5 point calibration with automatic recognition for USA, NIST and DIN buffers; temperature coefficient of the solution compensates for pure water samples and refers to the pH at 25° C. (variety of models).
The calibration is carried out with at least two standard buffer solutions that cover the range of pH values to be measured. For general purposes, buffers at pH 4.00 and pH 10.00 are suitable. The pH meter has a calibration control to set the meter reading equal to the value of the first standard buffer and a second control that is used to adjust the meter reading to the value of the second buffer. A third control allows to adjust the temperature. More precise measurements sometimes require calibration at three different pH values.
In Kalstein you can find the ideal PH Meters for your Laboratory

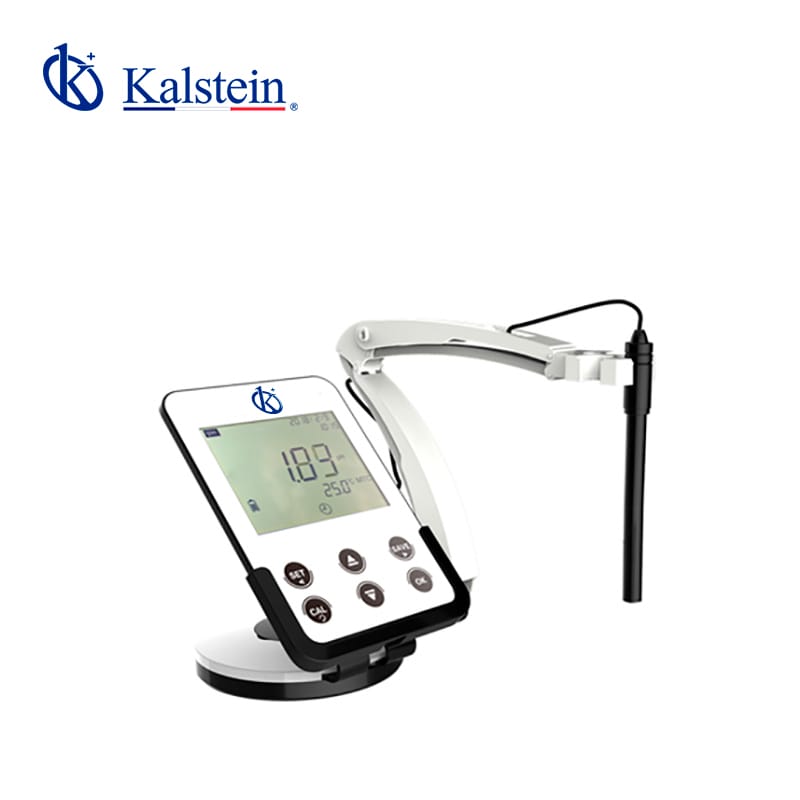

Benchtop pH / Ion Meter YR01826
Precision benchtop pH/ion meter, 1 to 5 points calibration, selectable concentration units...

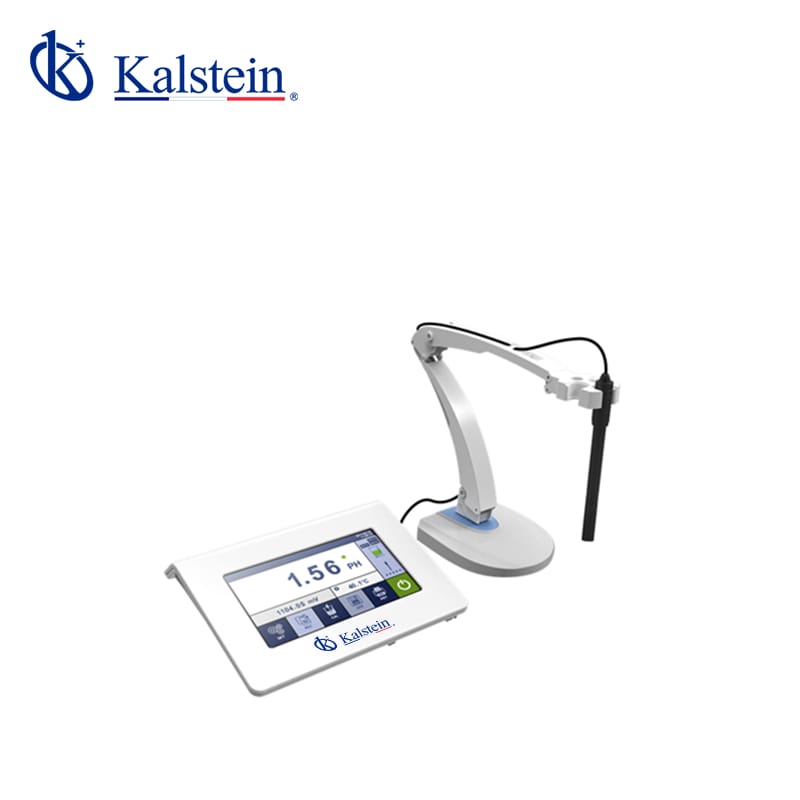

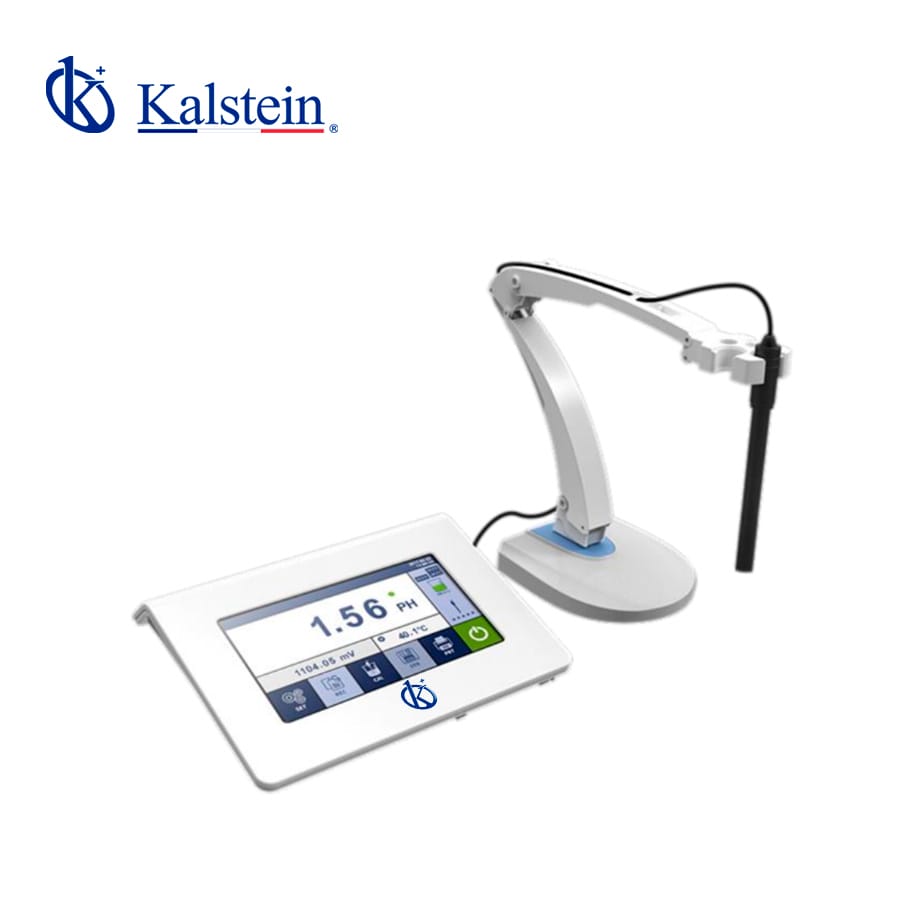

Benchtop pH Meter YR01823
This sophisticated measurement device is equipped with a 7-inch colored capacitive touch screen...

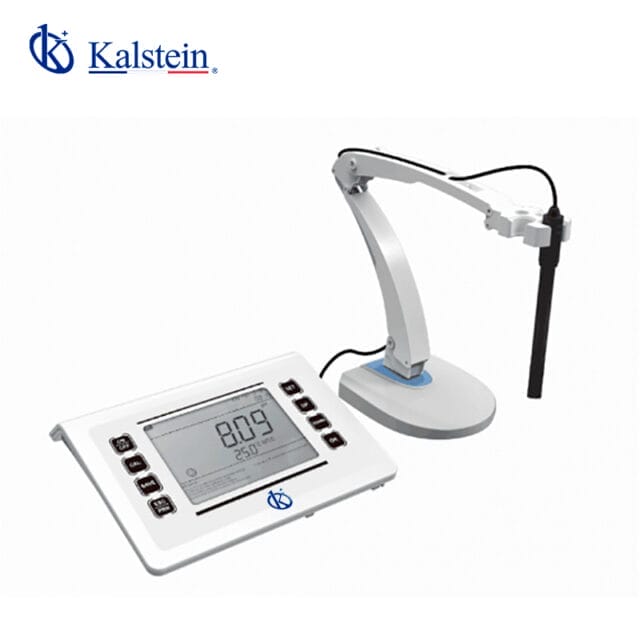

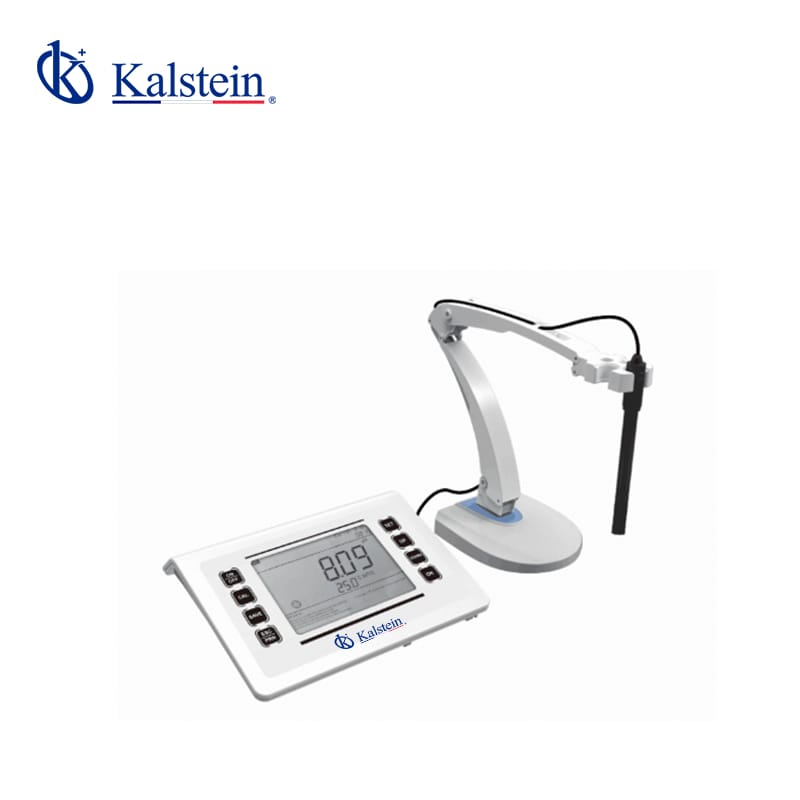

YR01822 Benchtop pH Meter
Automatic electrode diagnosis helps the user decide whether to replace the pH electrode,Automatic....

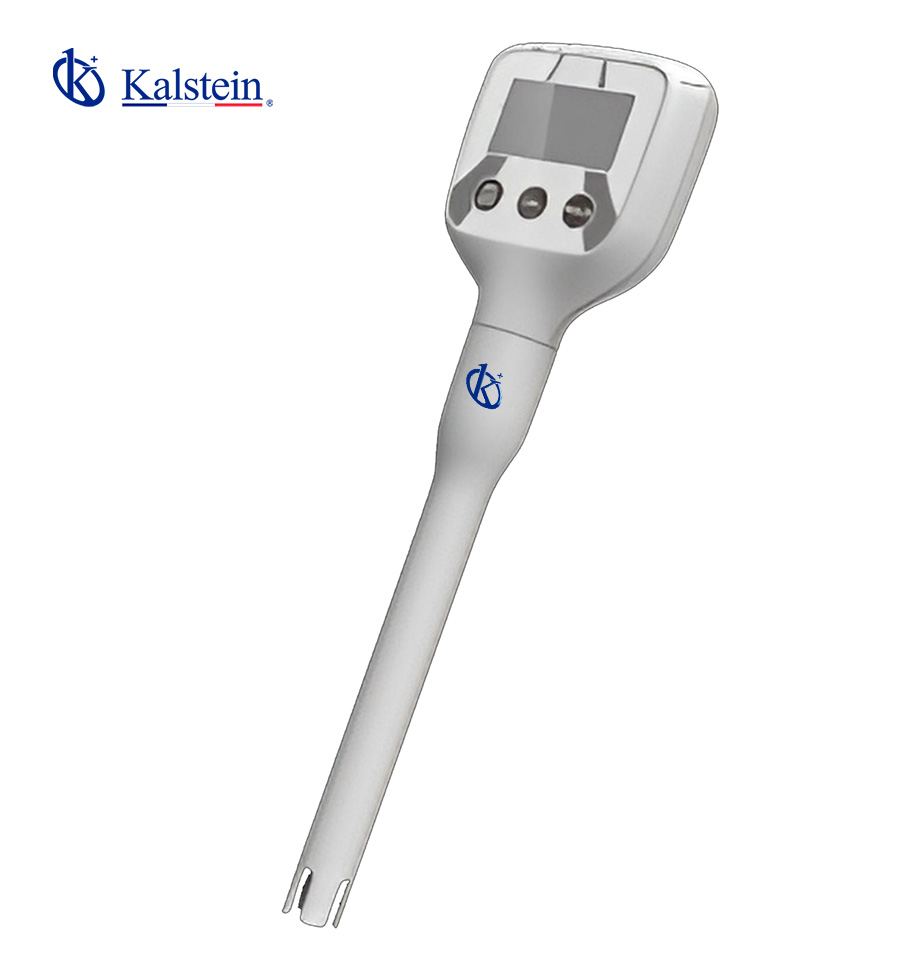

Pocket pH Meter – ° C / ° F YR01800 – YR01800-1
Series-Pen Type- pH Meter YR01800 is Compact mini design, making it highly...
Our Best Selling pH Meters
• High-accuracy pocket pH meter with a dual display LCD.
• Circular glass bulb electrode fully senses the pH of liquids.
• 1 to 3 points calibration with automatic recognition for USA and NIST buffers.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the pH buffer group, number of calibration points, temperature
unit, etc.
Model | YR01800 |
pH | |
Range | -1.00 to 15.00pH |
Resolution | 0.01pH |
Accuracy | ±0.01pH |
Calibration Points | 1 to 3 points |
pH Buffer Options | USA (pH4.01/7.00/10.01), NIST (pH4.01/6.86/9.18) |
Temperature | |
Range | 0 to 60°C/32 to 140°F |
Resolution | 0.1°C/0.1°F |
Accuracy | ±1°C/±1.8°F |
Offset Calibration | 1 point |
Calibration Range | Reading ±10°C |
General Specifications | |
Temperature Compensation | 0 to 60°C/32 to 140°F, automatic |
Hold Function | Manual or auto-endpoint |
Auto-Power Off | 8 minutes after last key pressed |
Display | Dual-line LCD (21×21mm) |
Power | 2×1.5V AAA batteries |
Battery Life | Approximately 200 hours of continuous use |
Dimensions | 185(L)×40(Dia.)mm |
Weight | 100g |
Catalog of pH Meters models on offer
-
YR01822 Benchtop pH Meter
-
Benchtop pH / Ion Meter YR01826
-
Pocket pH Meter – ° C / ° F YR01800 – YR01800-1
Select options This product has multiple variants. The options may be chosen on the product page -
YR01825 Benchtop pH / Ion Meter
-
PH Meter YR01821
-
YR01823 Benchtop pH Meter
Guides to becoming an expert in pH Meters
PH meter vs. dissolved oxygen meter
The pH is the unit of measurement that describes the degree of acidity or alkalinity and is measured on a scale ranging...
Care and Calibration of your pH meter
A pH meter or pH meter is a scientific instrument that measures the activity of the hydrogen ion in aqueous solutions, indicating...
Calibrate A Laboratory pH Meter?
pH meters are an essential tool in the laboratory, used to measure the level of acidity and basicity of a solution, which is...
PH meter: what is it used for?
A pH meter is a laboratory instrument for scientific use, which measures the activity of the hydrogen ion in aqueous solutions, indicating its degree of acidity or alkalinity expressed as pH, is used in laboratories and in multiple other fields or areas; a pH...
Videos of Working pH Meters
In this section you can find, our pH meters in operation, packaged, receiving service, etc.
PH Meters in Operation
The pH is the unit of measurement that describes the degree of acidity or alkalinity and is measured on a scale ranging from 0 to 14. An approximate indication of pH can be obtained using pH indicators or tapes, which change color depending on the variation of the pH level. But these indicators have limitations in terms of accuracy and can be difficult to interpret correctly in dark or colorful samples.
A pH meter is an instrument used to measure the acidity or alkalinity of a solution. The quantitative information given by the pH value expresses the degree of acidity of an acid or a base in terms of the activity of the hydrogen ions.
Frequently Asked Questions about pH Meters
How to know the prices of pH Meters?
To know the price of pH meters we invite you to send us an email with your request through the contact form.
What are the delivery times of the pH Meters?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of pH Meters?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
