Patient and Fetal Monitor
This MedicalEequipment, needed in clinics and hospitals, is used to control and Monitor the Vital Signs of the Patient connected to the device and who requires continuous monitoring; this device detects, processes and records the patient’s physiological and cardiac parameters, the design of this equipment must be simple to facilitate its use by medical staff, nurses and paramedics.
The function of these electronic devices is to collect, display and store all the vital constants of the pediatric patient…
PATIENT AND FETAL MONITOR KALSTEIN
At Kalstein you can find the ideal Patient and Fetal Monitors for The Medical Sector

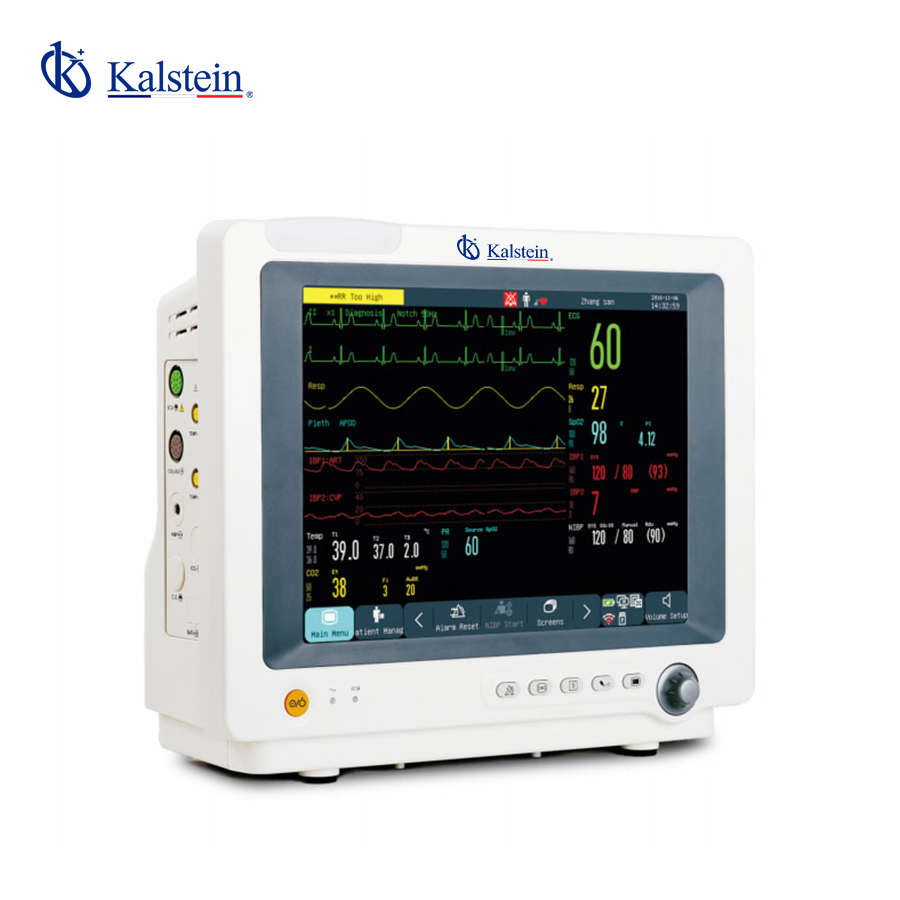

Bedside Monitor YR02173
12.1 inch touch screen 5-lead ECG, RESP, Temp (Single Channel), COMEN SpO2, NIBP, HR Dual-IBP, EtCO2, AG, ICG, C.O., BIS, Nellcor/Masimo SpO2, 3/12-lead ECG, Thermal Recorder, Dual-Temp, Suntech NIBP, Trolle...

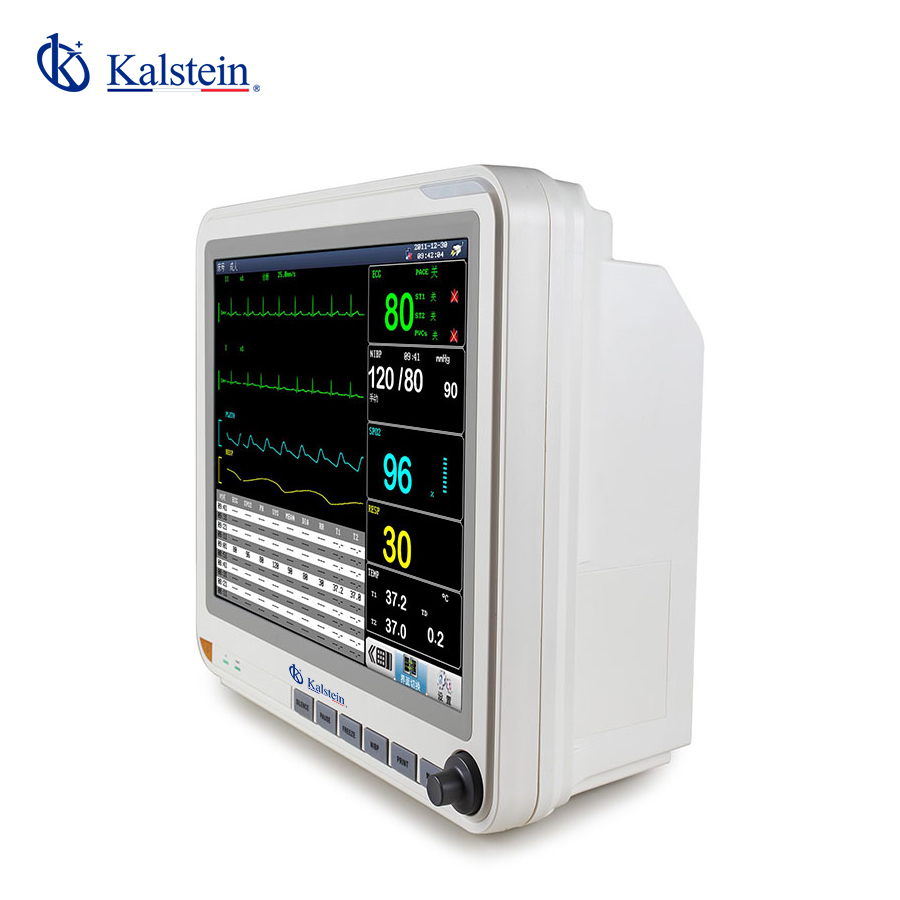

Bedside Monitor YR02174
15 inches Multi-parameter Patient Monitor Standard Configuration: SpO2, RESP, NIBP, PR/HR, ECG, 2-TEMP Options: 12 lead ECG, IBP, 2-IBP, ETCO2, Printer, Wall mount, Trolley, Touch screen Technical Specifi...

Multi-parameter patient monitor YR02178 // YR02179
LCD screen 2 slots Semi-Modular Parameter Patient monitor can be used in OT and ICU. Standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR Standard Configuratio...

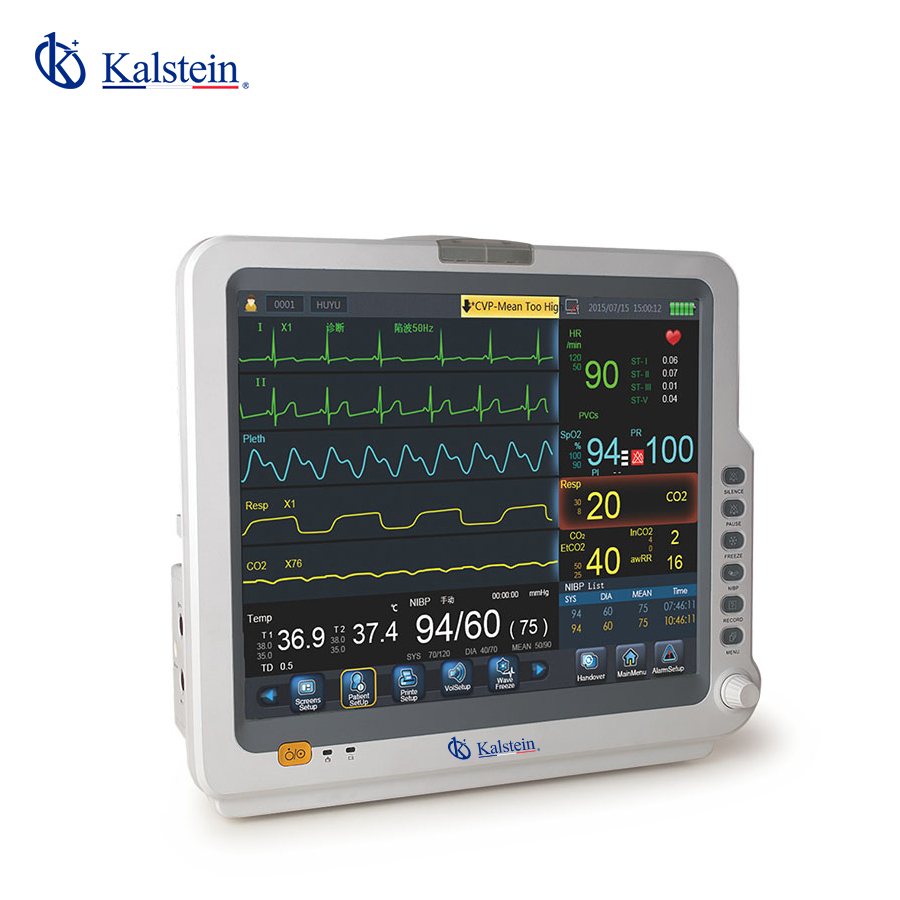

Doppler Fetal Monitor YR02180
17-inch LCD screen 2 slots Semi-Modular Parameter Patient monitor can be used in OT and ICU. 6 standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR Standard Configuration: 5-lead ECG, RESP, Dual-Tem...
Our Patient and fetal Monitor best seller

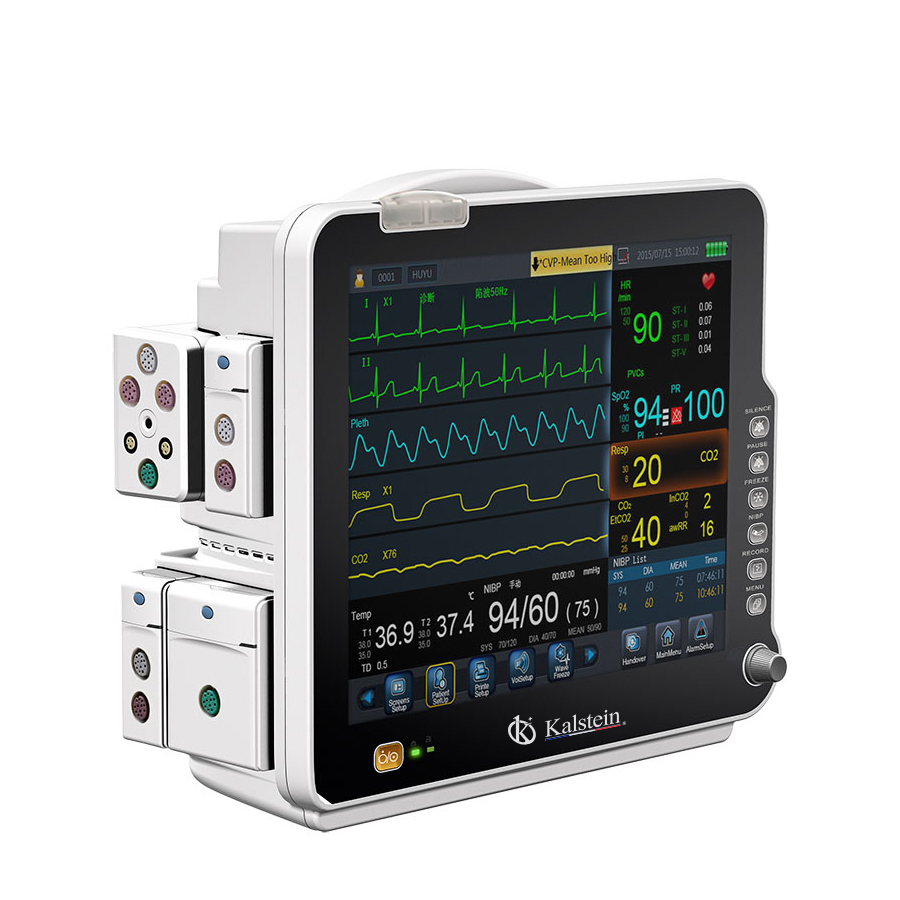

17 inch LCD screen full Modular Parameter Patient monitor can be used in OT and ICU.
Standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
Standard Configuration: 5-lead ECG, RESP, Dual-Temp, SpO2, NIBP
Optional: Masimo/Nellcor SpO2, Dual-IBP, AG, C.O., BIS, 3/12-lead ECG, Suntech NIBP, EtCO2, Thermal Recorder, ICG, Trolley, Wall mount
| Model | YR02177 | |
ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
Heart Rate | Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
Analysis of the best Patient and Fetal Monitors for The Medical Sector

Patient monitor: rules for use
A patient monitor is a medical device that collects and stores the patient’s vital signs, which, linked to alarm systems, process and record the patient’s parameters. They are equipment capable...

How does a vital signs monitor work?
A vital signs monitor is a device that allows you to detect, process and continuously display the physiological parameters of the patient. It also has an alarm system that alerts ...

Diabetes insipidus: diagnosis and treatment
Diabetes insipidus is a rare but treatable condition that usually occurs with polydipsia and polyuria. But distinguishing these symptoms from the symptoms...

Antiphospholipid syndrome and pregnancy
The antiphospholipid syndrome (AS) was first described 27 years ago in patients with systemic lupus erythematosus (SLE) and presence of anticardiolipin antibodies...
Catalog of models of Patient and Fetal Monitors on offer

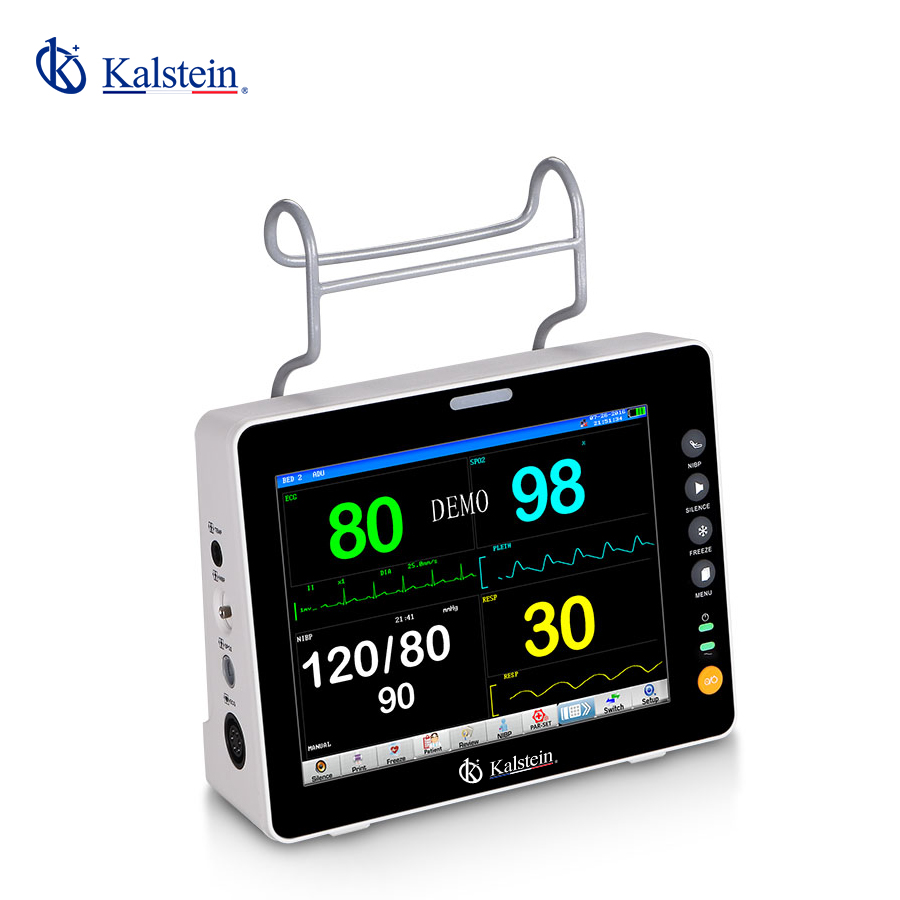

Patient Monitors YR02170 // YR02171 // YR02172
Select options
Bedside Monitor YR02174
Add to cart
Patient Monitor YR02175
Add to cart
Bedside Monitor YR02173
Add to cart

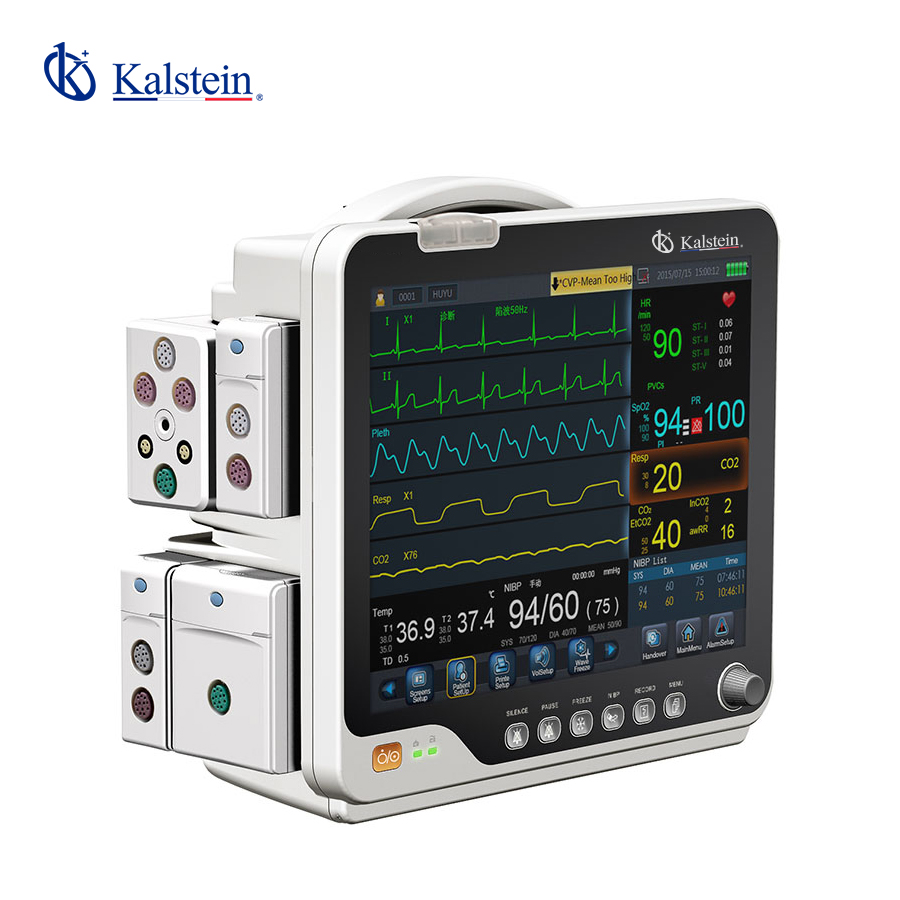

Patient Monitors YR02176
Add to cart
Multi-parameter Patient Monitor YR02177
Add to cart
Doppler Fetal Monitor YR02180
Add to cart

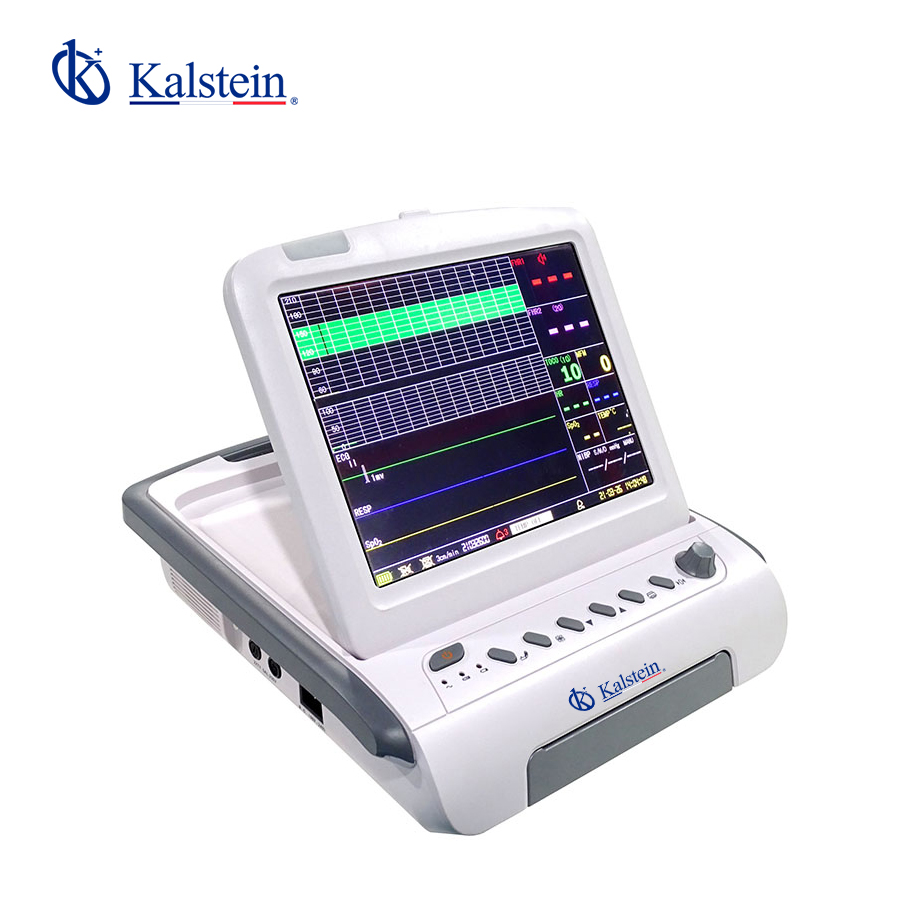

Doppler Ultrasound Fetal Monitor YR02181
Add to cart
KALSTEIN UPDATED
Guidelines for you to become an expert in Patient and Fetal Monitors
The Patient and Fetal Monitors equipment are essential products in the medical sector, we provide you with guidance and recommendations for a better use, so you can work like an expert.
Features of a pediatric vital signs monitor
A pediatric vital signs monitor, also known as a child monitor, is an electronic piece of equipment…
Patient Monitor, How To Read On A Vital Signs Monitor?
This medical equipment, required in clinics and hospitals, is used to control and monitor…
How do you explain a patient monitor?
The patient monitor is a multifunctional instrument designed to monitor…
How do I interpret vital signs on a vital signs monitor?
Monitors that record patients’ vital signs, such as pulse, temperature, respiration, oxygen saturation and blood pressure, are overwhelming because of all the numbers, abbreviations, wavy lines and alarms. To understand the mechanism of the monitors, it is necessary to consult a physician and to indicate the meaning of each recording.
Frequently asked questions from our customers about Patient and Fetal Monitors
To know the price of the patient and fetal monitors we invite you to send us an email with your request using the contact form. HERE
The delivery time of your Kalstein product will depend on the following:
- Whether the equipment you are interested in is in stock or if it needs to be manufactured.
- The type of freight you have chosen, which can be either air or sea.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Sea): 45-60 days.
- Equipment not in stock:
– Delivery Time (Air): 30-60 days.
– Delivery Time (Sea): 60-90 days.
You can make your purchase through:
- By email: [email protected]
- By phone: +33 (0) 1 70 39 26 50
- Online shopping: Through the official Kalstein website in your country.
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damages caused by improper installation or operation by the user, transportation defects, or uses other than those specified by the manufacturer. The warranty excludes electrical parts or consumables. For more information, visit our terms and conditions by clicking HERE.
At Kalstein, we provide our customers with inductions and technical support through new online methods. You can visit our induction videos, technical assistance, and guidance provided by a Kalstein team through our Youtube channel (Kalstein English). HERE
Certainly, you can request a quote for the Kalstein equipment you’re interested in, directly from our official website. Once you have identified the model of your preference, click HERE
