Operation Table
Types of Operating tables that an Operating room needs

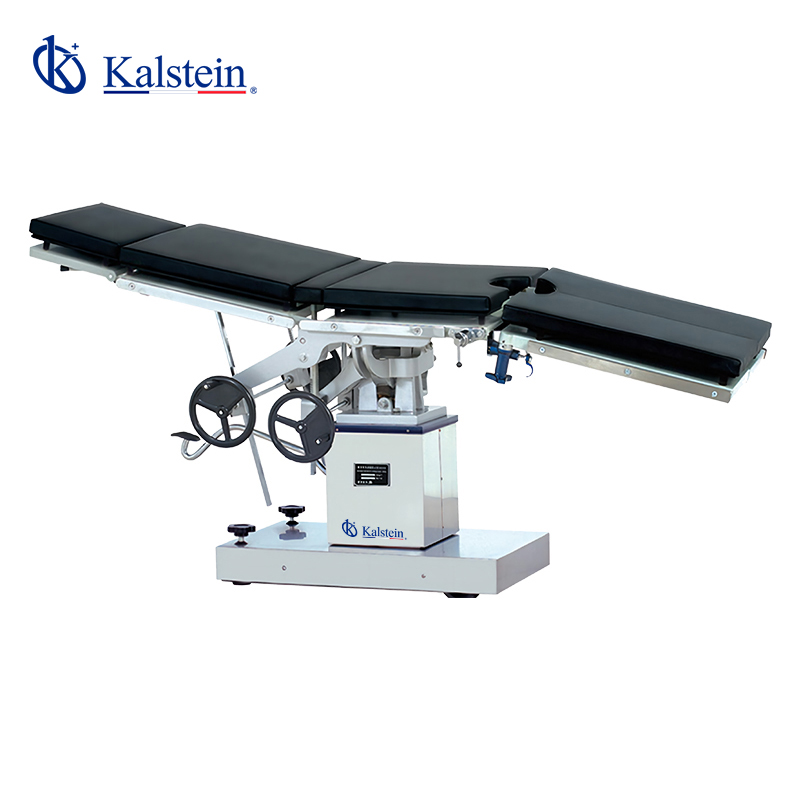

Operating Tables YR02154
With integrated one key reset function, handheld panel, standby control panel in the column and foldable head plate for greater rest, the surgical operating table...

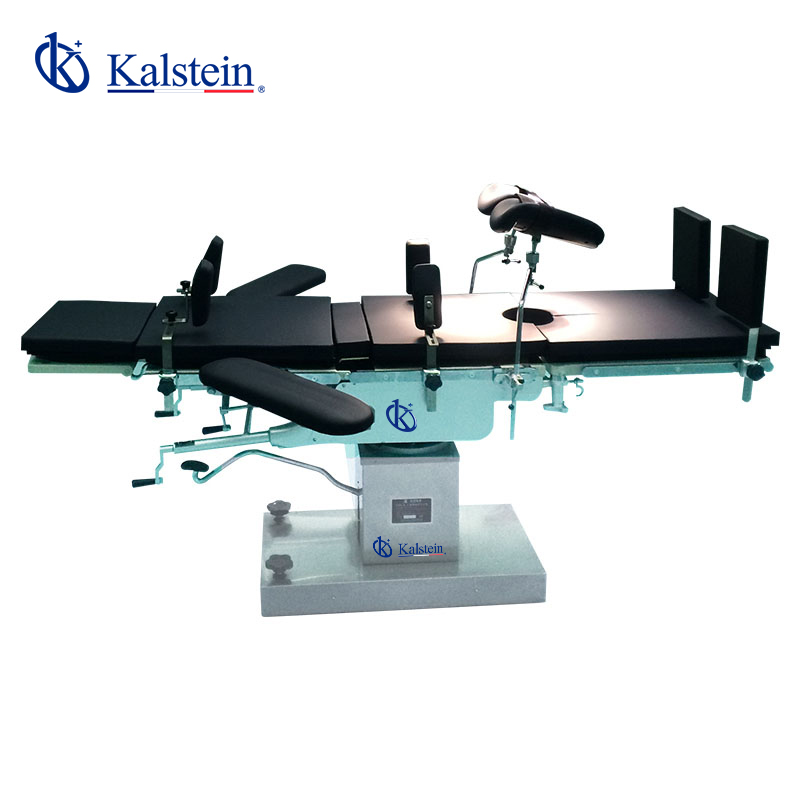

Operating Tables YR02155 // YR02156 // YR02157
YR Series operating tables are tailered to a variety of positioning requirements from different suigical disciplines.You always find...
Operating Tables YR02158
The YR02158 surgery table is a Hydraulic manual control operating table with a load capacity of 200 kg. It can be easily configured and positioned to meet all...

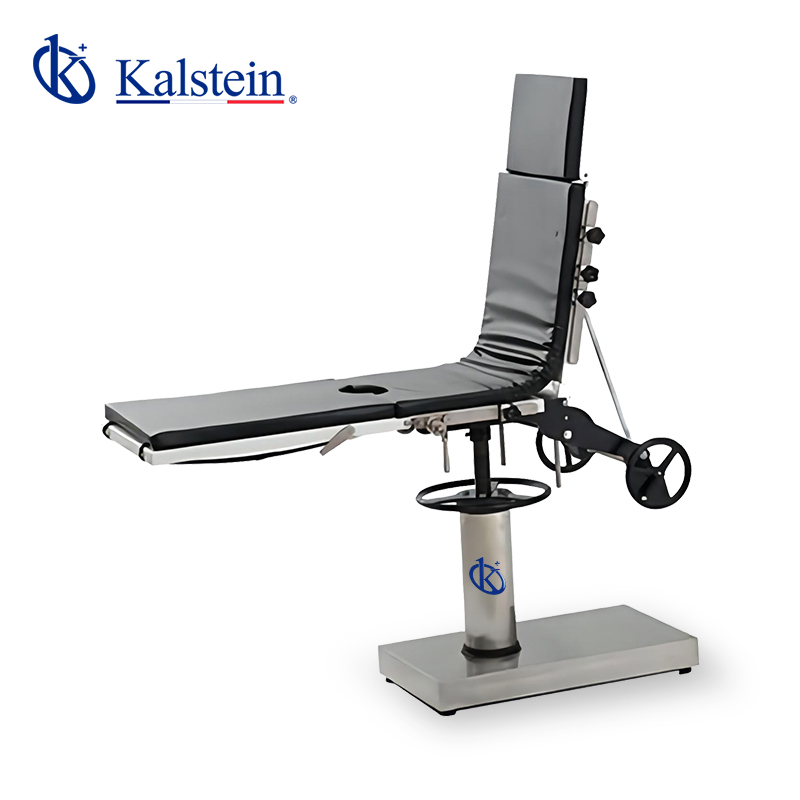

Operating Tables YR02153
Impressive improvements on functional performance, user interaction and opeartional safety make YR02153 a truely universal operating table, which offers...

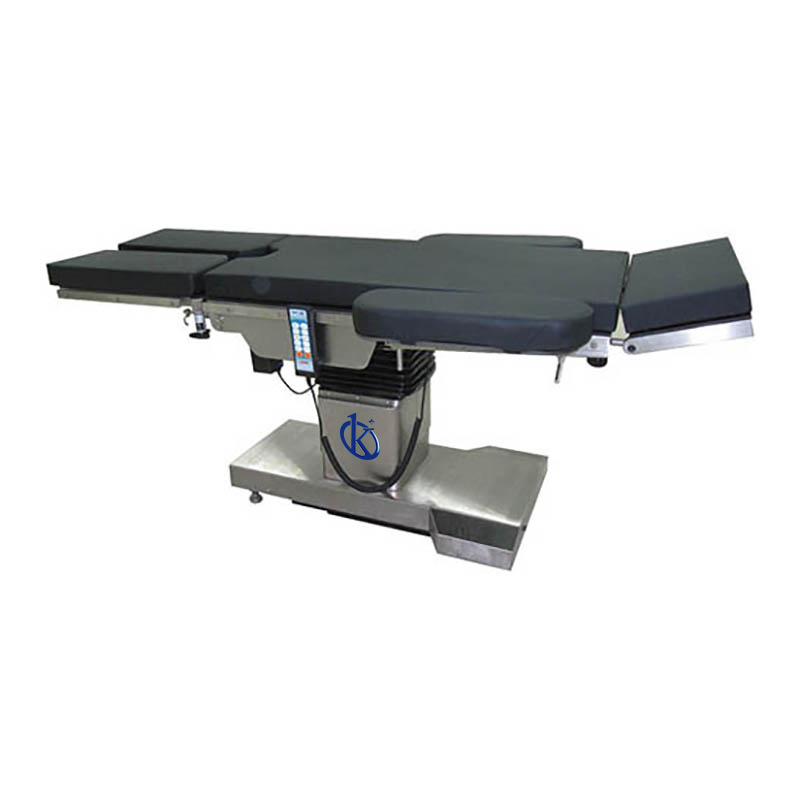

Our Best Selling Operation Table
- YR02154 surgical operating table features X-ray radiolucent surface and allows convenient use of C-arm.
- It uses conformable pads that are easy to replace and clean.
- The surgical operating table is highly maneuverable with a central brake.
- It adopts the integrated rechargeable battery that allows 50 nonstop batches of surgical operations after one full charge.
- Longitudinal shift of up to 296 mm is available
Model | YR02154 |
Table length | 2100 mm |
Table width | 500mm (not include side rail) |
Table height (up / down) | 1030mm / 700mm |
Trendelenburg / Reverse Trendelenburg | 30 ° / 30 ° |
Lateral tilt (right / left) | 20 ° / 20 ° |
Back plate (down) | 68 ° / 42 ° |
Head plate (down) | 57 ° / 72 ° |
Leg plate (downlsplit) | 96 ° / 65 ° x 2 |
Flexion / Reflection | 220 ° / 115 ° |
Longitudinal displacement | 296 millimeters |
Patient weight | 200Kg (during positioning) |
Input power | AC 110 / 220V, 60 / 50Hz |
Catalog of models of Operating Table on offer
-
Electric Gynecological Obstetric Table YR06242
-
Hydraulic Gynecological Obstetric Table YR06241
-
Electro-Motor Operation Table YR06230
-
Electric Gynecological Obstetric Table YR06243
-
Electro Hydraulic Operating Table YR06236
-
Head-Surgical Table Electrical Chair YR06238
-
Mechanical Hydraulic Gynecology Obstetric Table YR06239
-
Operating Tables YR02153
Guides to becoming an Operations Table expert
How the use of the operating table can improve safety in the operating Room?
Using the operating table can improve safety in the operating room in a significant way. The operating table is one of the key tools for a...
Making the Most of Your Operating Room Table - Medical Sector
Modern operating theaters have evolved a lot in the last 15 years. Modern technology has changed the way surgeons perform their...
What are the measures of an Operating Table? Medical Sector
For a successful surgical intervention, it is developed in the best way with respect to the correct realization of different positions on the...
Differences between a manual surgical Table and an automatic surgical Table?
In any medical procedure, patient safety is paramount, and health care failures affect 1 in 10 patients, which is why it is important to...
Frequently Asked Questions about Operating Tables from our customers
How to know the prices of the Operating Tables?
What are the delivery times of the Operating Tables?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase from the Operations Table?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
