ECG-Digital Electrocardiograph
This device captures and amplifies the electrical activity of the heart through electrodes, this device represents the electrical activity of the myocardial fibers, produced when the cardiac muscles change their electrical properties with each heartbeat, then electrodes attached to the body can be used to measure changes in body voltage, and this is called electrocardiogram.
The electrocardiogram is a zero invasive test, safe and very useful for a diagnosis, although not conclusive of the severity of the disease, it is important to know how to read and interpret correctly an electrocardiogram, as it gives indications of underlying causes of disease, and for this it is necessary to know the role of ECG and its characteristics…
ECG-DIGITAL ELECTROCARDIOGRAPHS KALSTEIN
At Kalstein you can find the ideal ECG-Digital Electrocardiograph for The Medical Sector
YR05159 Medical Ecg Machine 12 derivations 6 Channel
The 06-channel ECG machine is an electrocardiograph that can collect 12-lead ECG signals simultaneously and print ECG waveforms with thermal printing system. T...
YR05158 03 Channel Electrocardiograph Touch Screen ECG Machine
As the name suggests, the 3-channel ECG machine prints 3 waveforms / channels at a time. On 3-channel machines, the ECG signa...
12-lead ECG monitor USB / RS232 interface YR05160
The 12-channel ECG machine is an electrocardiograph that can collect 12-lead ECG signals simultaneously and print ECG waveforms with thermal printing system. T...
6 Channel Smart Hospital ECG Manufacturing Machine Monitoring Dynamic Holter ECG Systems YR05161
This new 6-channel YR ECG will bring you the power of advanced and easy-to-u...

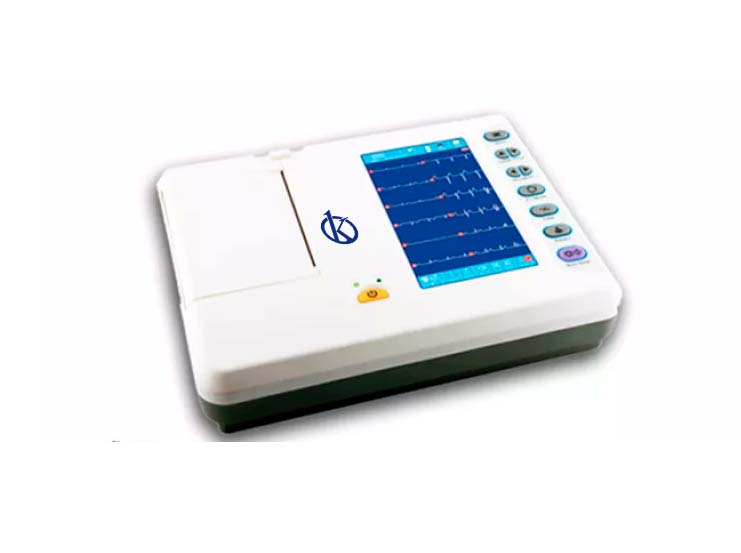

Our ECG-Digital Electrocardiograph best seller
This new 6-channel YR ECG will bring you the power of advanced and easy-to-use technologies, multiple forms of data management, as well as accurate measurements and interpretations, which can improve the diagnostic confidence of cardiologists.
| Model | YR05161 |
| Guide | 12 standard conductors |
| Input dynamic range | ± 10Vpp |
| Patient current leak | <10μA |
| Calibration Voltage | 1mV ± 2% |
| Tension Tolerance | : ≥ ± 500mV |
| Time constant | ≥3.2s |
| Frequency response | 0.05 ~ 160Hz (-3db) |
| Noise level | <15μVp-p |
| Input circuit current | 0.050.05 μA |
| Sensitivity | 2.5, 5.10, 20mm / mV |
| Interchannel interference | ≤0.5mm |
| Paper speed | 6.25,12.5, 25.50mm / s (± 3%) |
| Patient current leak | <10μA |
| AC filter | 50Hz / 60Hz |
| EMG filters | 25Hz / 45Hz |
| Anti-drift filter | 0.15 Hz (adaptive) |
| CMMR | ≥120dB (with AC filter) |
| Sensitivity Valve | ≤20μV |
| Input impedance | ≥50MΩ |
| Work Modes | MAN, AUTO, ANALYSIS modes |
| Acquisition of Potential Customers | 12 bits / 1000 Hz (synchronously 12 leads) |
| Input Circuit | floating; protection circuit against defibrillator effect |
| Screen | 7 inch LCD |
Analysis of the best ECG-Digital Electrocardiograph for The Medical Sector
Use of electrocardiographic equipment to monitor patient response to medical therapy
Electrocardiographic equipment is the essential tool to efficiently monitor the health status of patients, these devices allow...
Digital ECG Electrocardiograph: Advanced Diagnosis of Cardiac Abnormalities in Real Time
In the field of medicine, the precise and timely diagnosis of heart conditions is crucial to preventing serious complications...
Digital Electrocardiograph: High-Precision Cardiac Monitoring
The digital electrocardiograph is an indispensable tool for the precise and detailed monitoring of the heart’s electrical activity. As technology...
What are the criteria for selecting your ideal electrocardiograph?
Electrocardiographs are vital medical equipment to provide good health services, so it is an indispensable element in any medical...
Catalog of models of ECG-Digital Electrocardiograph on offer
YR05158 03 Channel Electrocardiograph Touch Screen ECG Machine
Add to cart
6 Channel Smart Hospital ECG Manufacturing Machine Monitoring Dynamic Holter ECG Systems YR05161
Add to cart
YR05159 Medical Ecg Machine 12 derivations 6 Channel
Add to cart
12-Lead ECG monitor USB / RS232 interface YR05160
Add to cart
KALSTEIN UPDATED
Guidelines for you to become an expert in ECG-Digital Electrocardiograph
The ECG-Digital Electrocardiograph equipment are essential products in the Medical Sector, we provide you with guidance and recommendations for a better use, so you can work like an expert.
What are the criteria for selecting your ideal electrocardiograph?
Electrocardiographs are vital medical equipment to provide good health services, so it is…
Accurate Cardiac Monitoring for Advanced Diagnostics
Cardiac monitoring is essential for the early and accurate detection of various heart…
What does electrocardiograph mean?
It is a specialized medical team that prints the record of cardiac activities, which reflects positive and negative waves, driven by electrodes located in the chest cavities on the patient’s body.
The Electrocardiograph to evaluate Hypocalcemia
Calcium (Ca) is an alkaline earth metal that has important functions in the body. This metal, which circulates in the blood, is 45% bound to plasma proteins, mainly albumin, and 15% to small anions. The remaining 40% of circulating calcium is in its ionic form. ..
Frequently asked questions from our customers about ECG-Digital Electrocardiograph
To know the price of the ecg-digital electrocardiograph we invite you to send us an email with your request using the contact form. HERE
The delivery time of your Kalstein product will depend on the following:
- Whether the equipment you are interested in is in stock or if it needs to be manufactured.
- The type of freight you have chosen, which can be either air or sea.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Sea): 45-60 days.
- Equipment not in stock:
– Delivery Time (Air): 30-60 days.
– Delivery Time (Sea): 60-90 days.
You can make your purchase through:
- By email: [email protected]
- By phone: +33 (0) 1 70 39 26 50
- Online shopping: Through the official Kalstein website in your country.
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damages caused by improper installation or operation by the user, transportation defects, or uses other than those specified by the manufacturer. The warranty excludes electrical parts or consumables. For more information, visit our terms and conditions by clicking HERE.
At Kalstein, we provide our customers with inductions and technical support through new online methods. You can visit our induction videos, technical assistance, and guidance provided by a Kalstein team through our Youtube channel (Kalstein English). HERE
Certainly, you can request a quote for the Kalstein equipment you’re interested in, directly from our official website. Once you have identified the model of your preference, click HERE
