Refrigerators and Freezers
A laboratory refrigerator is a piece of equipment that allows to efficiently conserve all kinds of substances that are cooled in it, whether they are liquid, solid or homogeneous substances. Reason why it is considered essential equipment within the laboratory.
It acts by lowering the temperature, thus allowing control of the effect it has on the substances whose composition and structure are to be preserved, this is because the lower the temperature, the lower the rate at which chemical reactions occur and metabolic, which deteriorate the compounds. That is why they are used in the conservation of blood and derivatives, biological fluids and tissues, reagents, chemicals, and bacterial strains.
Types of Refrigerators and Freezers a Laboratory may require
Ultra Freezer
Refrigerators and freezers are essential equipment in every laboratory, since these equipment guarantee the preservation of substances by generating and maintaining negative temperatures up to thermal levels. For optimal operation, they must meet certain characteristics, such as optimized thermal insulation, temperature maintenance and the ability to program and regulate the temperature with the support of electronic alarms that notify the laboratory staff of breakdowns or malfunctions.
For optimal operation, the refrigerator must be located in a cool and ventilated environment with at least one window, to avoid the concentration of hot air. In addition, it must be placed 15 cm away from the wall, which will promote air circulation. The sun’s rays should not hit the refrigerator directly, since ultraviolet rays could inactivate the vaccines. It is also recommended to place it on a wooden base to avoid electricity leakage.
Upright Freezer
A laboratory freezer is a freezer used to store samples for scientific or medical purposes. These freezers are designed to maintain a constant temperature and prevent samples from thawing or freezing. They come in a variety of sizes and shapes to meet the needs of different laboratories.
Upright freezers are common in laboratories because they take up less space and are easier to access than horizontal freezers. Some are equipped with features such as alarms and automatic shutoffs to prevent samples from thawing or freezing.
In Kalstein you can find the ideal Refrigerators and Freezers for your Laboratory

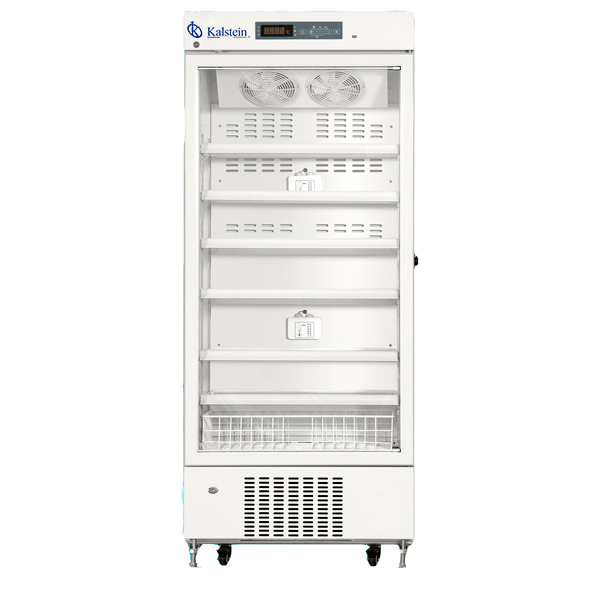

1006L Pharmacy Medical Refrigerator YR05087-1
Microprocessor control, digital display, and temperature adjustment with an increment of 0.1ºC...
588 Liters Laboratory Upright Freezer YR05303
-86ºC ULT freezer is specially designed and manufactured for long term storage of various biological product...
408 Liter Ultra Low Temperature Freezer YR05302
The dual System’s microprocessor control with 2 separate interior doors that can be opened independently...
368L Free Standing Deep Freezer YR05320
This products designed to Top refrigerator and bottom freezer, two different cooling temperature to store...
Our best-selling Refrigerators and Freezers
- Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 12 hours without AC power.
- Visual and audible alarm system:High/low temperature,Sensor error, Thermostat failure alarm,power failure alarm
- Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
- Keyboard lock, password protection to avoid set parameter randomly.
- Wide available voltage range: 198V~242V.
| Model | YR05318 |
| Performance | |
| Temperature Range | -10~-25°C |
| Ambient Temperature | +10~+32°C |
| Controller | Microprocessor |
| Display | Digital Display |
| Refrigeration System | |
| Compressor/Brand | 1 |
| /CUBIGEL | |
| Refrigerant | R290 |
| Cooling Type | Direct cooling |
| Defrost Type | Manual |
| Electrical Data | |
| Power Supply(V/Hz) | 220~240V/50~60;115/60 |
| Rated Power(W) | 295 |
| Electrical Current(A) | 2.45 |
| Power Consumption | 3.45 kWh/24h |
| Dimensions | |
| Capacity | 485L/17.12 cu.ft |
| Interior Size(W*D*H) | 1455*525*665mm |
| Exterior Size(W*D*H) | 1655×755×915mm |
| Package Size(W*D*H) | 1710×885×1020mm |
| N.t./G.t.(approx) | 124/138KG |
| Loading Qty(20’/40’/40’H) | 12/26/26 |
| Alarm | |
| High/Low Temperature | Y |
| Sensor Error | Y |
| Power Failure | Y |
| Accessories | |
| Caster | 6 |
| Remote alarm port | / |
| Test hole | 1/25MM |
Catalog of models Refrigerators and Freezers on offer
-
‘-86℃ Digital display Ultra low temperature upright freezer for Lab/Hospital YR05107
-
Manual Defrost 588L Ultra Low Temperature Freezer YR05109
-
Standing Deep Freezer With Color Sprayed Steel YR05307
-
‘-30°C Forced Air Cooling Biomedical Freezer YR05308-1
-
728L Ultra Low Temperature Upright Freezer Digital Display YR05110
-
Chest Freezer YR05102
-
1006L Pharmacy Medical Refrigerator , Hospital Grade Refrigerator YR05087-1
-
Blood Bank Refrigerator YR05094
Guides for you to become an expert in Refrigerators and Freezers
Laboratory Refrigerators and freezers, temperature ranges
A laboratory refrigerator is a piece of equipment that allows to efficiently conserve all kinds of substances that...
Food Preservation with the Use
of Combination Freezers
Food freezing is a process used to preserve food for an extended period of time. The objective of freezing...
Kalstein - What applications do Refrigerators have in the healthcare sector?
The refrigerator is an equipment whose function is to maintain, in a controlled environment (refrigerated space)
Do you want to know what Refrigerator do you need? and why?
The needs of refrigeration can vary from holding a sample for intense study and exams during a period at a steady temperature...
Videos of Refrigerators and Freezers at work
In this section you will be able to find, our Refrigerators and Freezers in operation, packed, being serviced, etc.
Refrigerators and Freezers in Operation
The process of storing hematological plasmas with the use of laboratory freezers is very effective in preserving the quality and quantity of the cellular components of blood plasma. Frozen blood plasma can be stored for several years. However, it is important to note that frozen blood plasma is not stable indefinitely.
After frozen blood plasma has been stored for a period of time, it should be thawed and used immediately. If blood plasma is thawed and stored again, it degrades rapidly. Therefore, it is important to note that frozen blood plasma can only be stored for a limited period of time.
