Hotplates and Hotplate Stirrers
A magnetic stirrer is a device used to create a rotating magnetic field. The magnetic stirrer creates a rotating field based on a rotating magnet bar or a plate containing the rotating magnet. In general, the bar magnet is coated with plastic and plate contains a rotating magnet. It is possible to create a rotating magnetic field with the help of a rotating magnet.
The magnetic stirrers are also known as magnetic stir plates and quite commonly used for experiments in chemistry and biology. They are very useful when you need to mix component, either solids or liquids and get a homogeneous liquid mixture. Some of the common samples include bacterial growth media as well as buffer solutions. The main function of a stirrer is to agitate the liquid for speeding up the reactions or improving mixtures. A magnetic stirrer is often used with hot plates.
Types of Hotplates and Hotplate Stirrers that a Laboratory may need
Magnetic Stirrer With Hotplate YR02951-YR02952
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven...
Five – Point Magnetic Stirring Hot Plate for Laboratory
Very compact and simple to operate, digital display temperature and speed...

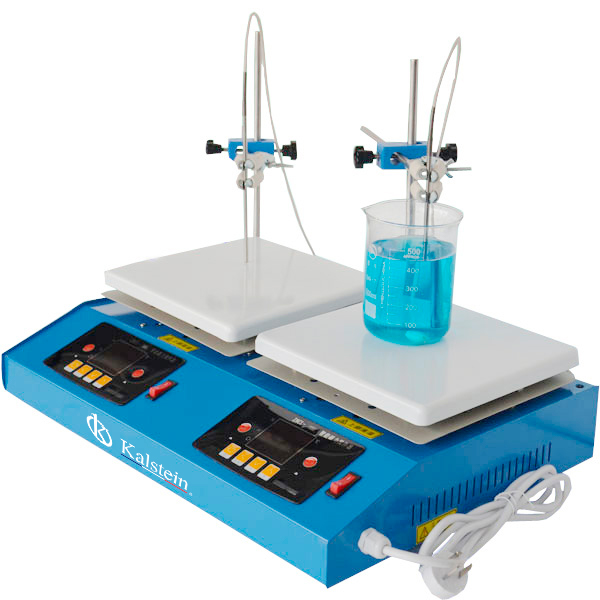

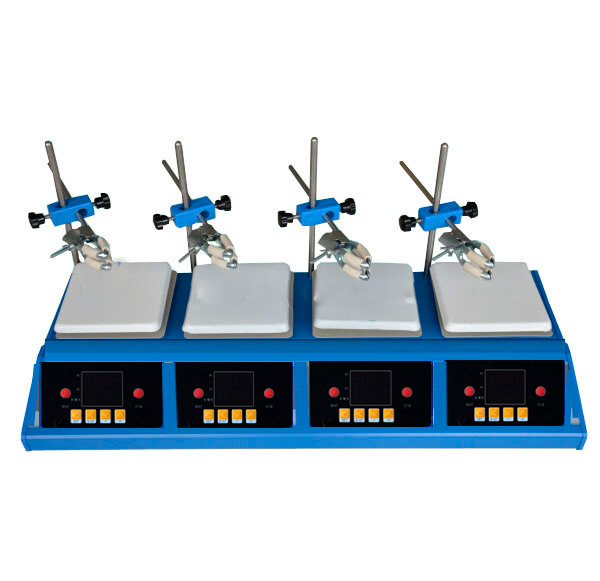

Multi-Position Thermostatic Hotplate Magnetic Stirrer YR02947
Magnetic stirrers are often used in chemistry and biology...
Hot plate Laboratory Magnetic Stirrer YR02944
Because of its small size, a stirring bar is more easily cleaned and sterilized ...
Our best selling Hotplate
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized stirrers because they are quieter, more efficient, and have no moving external parts to break or wear out (other than the simple bar magnet itself). Because of its small size, a stirring bar is more easily cleaned and sterilized than other stirring devices. They do not require lubricants which could contaminate the reaction vessel and the product. They can be used inside hermetically closed vessels or systems, without the need for complicated rotary seals. Magnetic stirrers may also include a hot plate or some other means for heating the liquid.
Product Features
- Very compact and simple to operate
- Digital Display temperature and speed, Heating temperature: Rt-380 Degree and mixing speed :100-1800 RPM
| Model | YR02942 |
| Top Plate Dimension (mm) | 180 x 180 (7.09 x 7.09inch) |
| Temperature Control | PID Auto control . |
| Temperature Range for machine | Ambient to 400 degree. |
| Max Temperature for top plate | 325 degree |
| Top Material | White ceramics and Black ceramics are both available . |
| Temperature Display (°C ) | Digital Display |
| Temperature control | PID Auto control |
| Temperature accuracy | |
| Thermocouple probe /sensor type | PT100 , with inner and outer thermocouple . |
| Stir Speed | 100- 1800 RPM |
| Stir Display | Digital display |
| Stir speed accuracy | |
| Permissible Ambient Temperature | Ambient Temperature to 40°C |
| Voltage | 160 – 240V , or 110- 130V. |
| Heating Power supply (w) | 550 |
| Motor Power supply | 40 W.DC 20 |
| Machine power supply | 600 |
| Stirring Flask Capacity (ml) | 50ML-5L |
| Overall Dimensions (mm) ( L × W × H ) | 391 x 245 x 120 |
| Packing Dimension (mm) | 440 x 290 x 170 |
| Shipping Weight (kg) | 5.1 |
| Shell material | Time molding waterproof and dustproof shell with Anti-static paint |
Catalog of models of Hotplates and Hotplate Stirrers on offer
-
Magnetic Stirrer With Hotplate YR02951-YR02952
Select options This product has multiple variants. The options may be chosen on the product page -
Constant Temperature Digital Magnetic Stirrer With Hot Plate YR02942
-

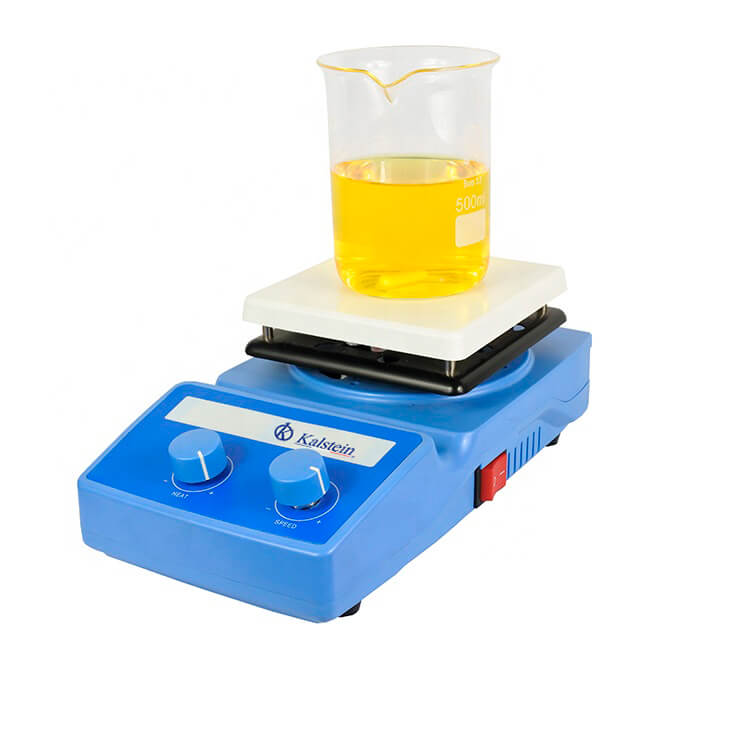

Control Magnetic Stirrer with Stir Bar YR02934
-
Digital Mini Laboratory Magnetic Hotplate Stirrer YR02937
-
Digital Mini Laboratory Magnetic Hotplate Stirrer YR02941
-
Five – Point Magnetic Stirring Hot Plate for Laboratory YR02945
-
Heater And Hotplate Thermostatic Digital Magnetic Stirrer YR02938
-
Hot plate Laboratory Magnetic Stirrer YR02940
Guides for you to become an expert in Hotplates and Hotplate Stirrers

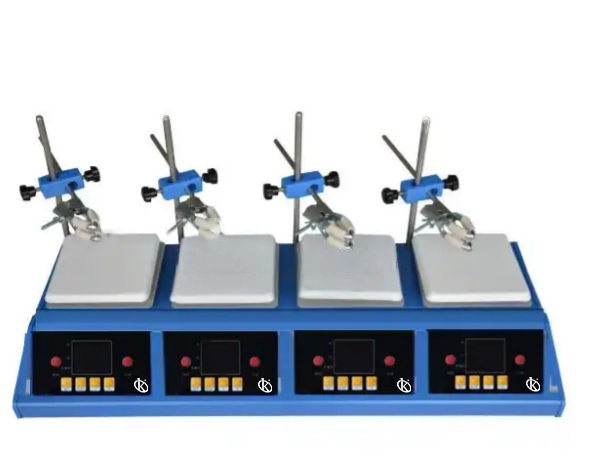

Why you should use Hot Plates in the Laboratory?
A hot plate is a flat, smooth surface that is in contact with a heat source. They can be used to keep objects warm or cool them. Most are made of metal, although you can also ...

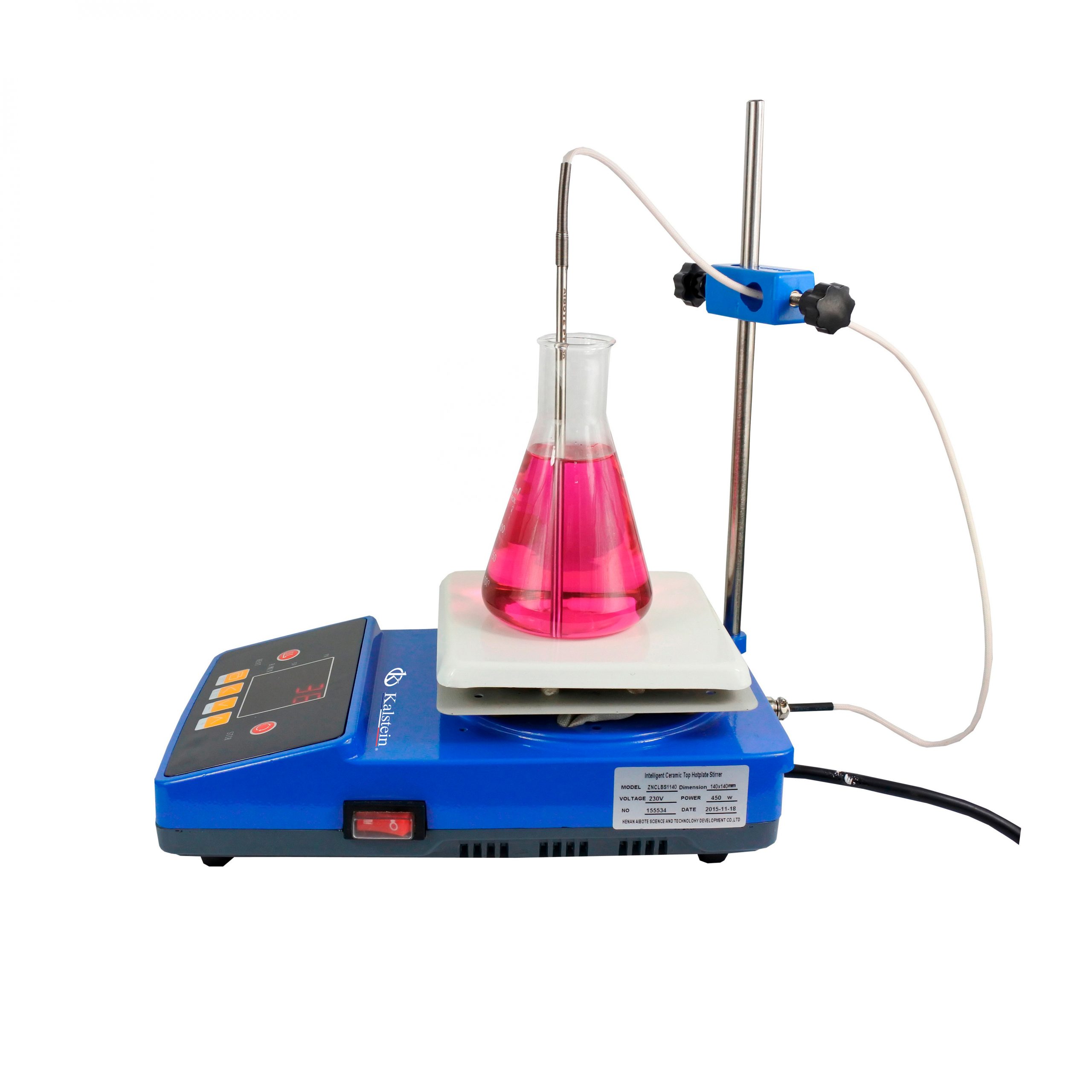

Features and uses of the Magnetic Hotplate Stirrer
A magnetic stirrer is a device used to create a rotating magnetic field. The magnetic stirrer creates a rotating field based on a rotating magnet bar...

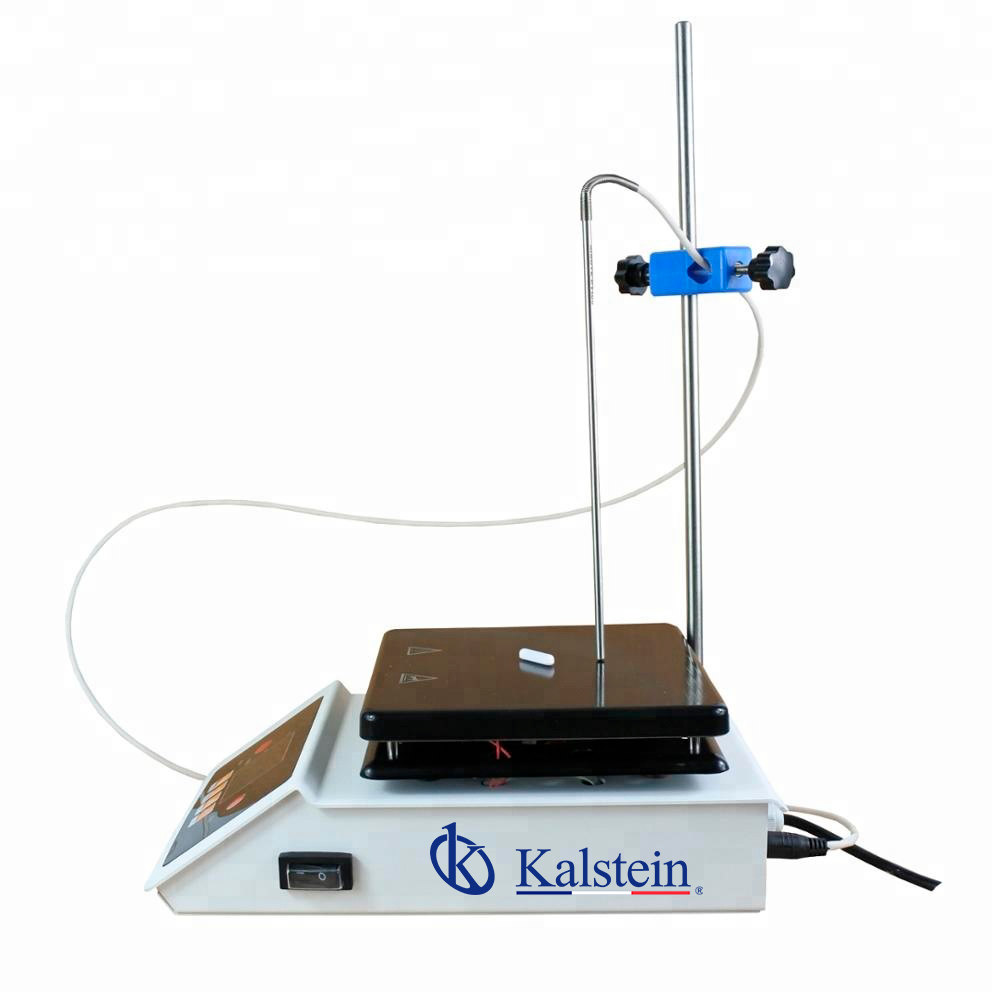

The basics of using heating plates in the laboratory
All laboratories use at least one heating plate for their daily operations. However, the use of heating plates in the laboratory is not limited to this. In fact ...

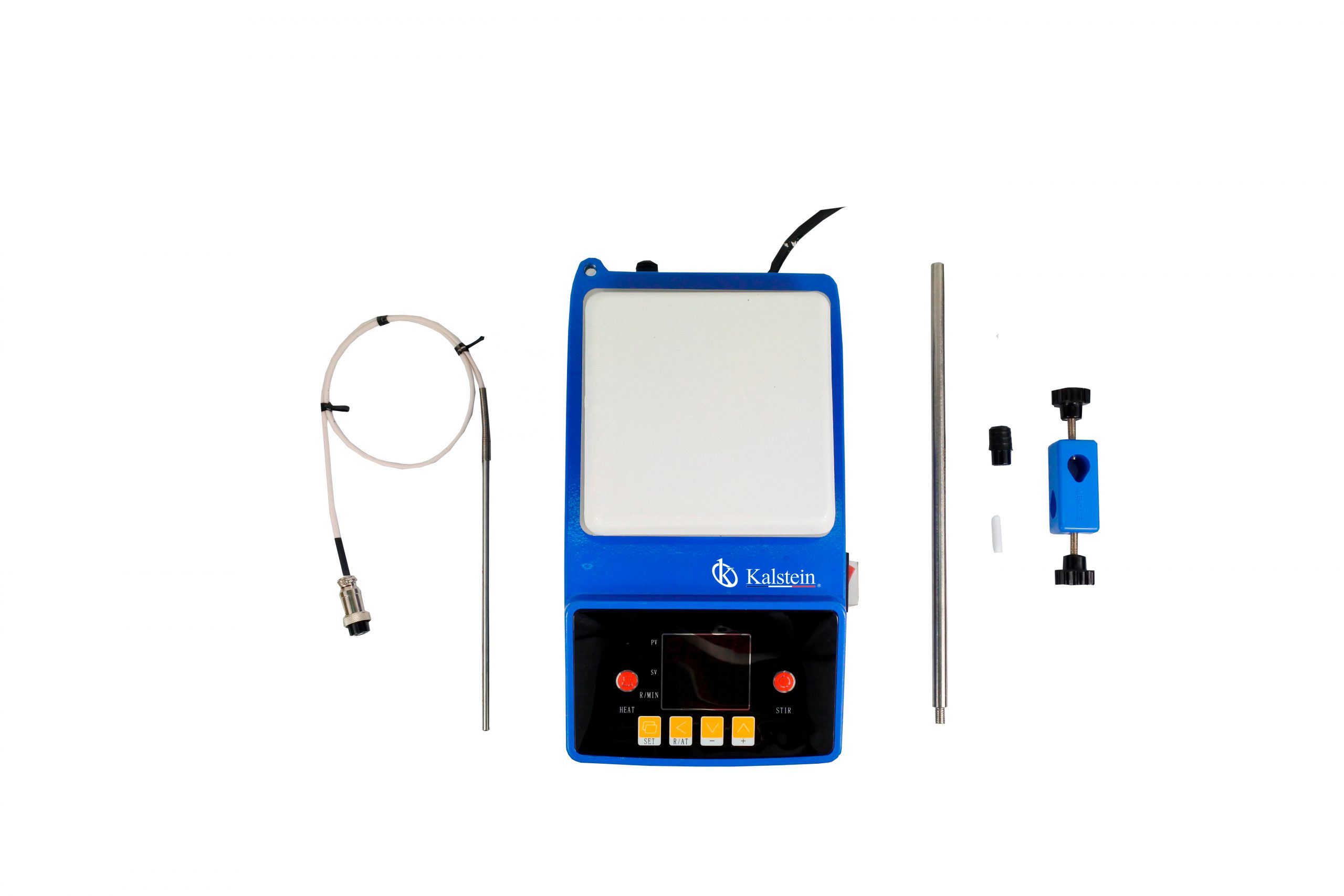

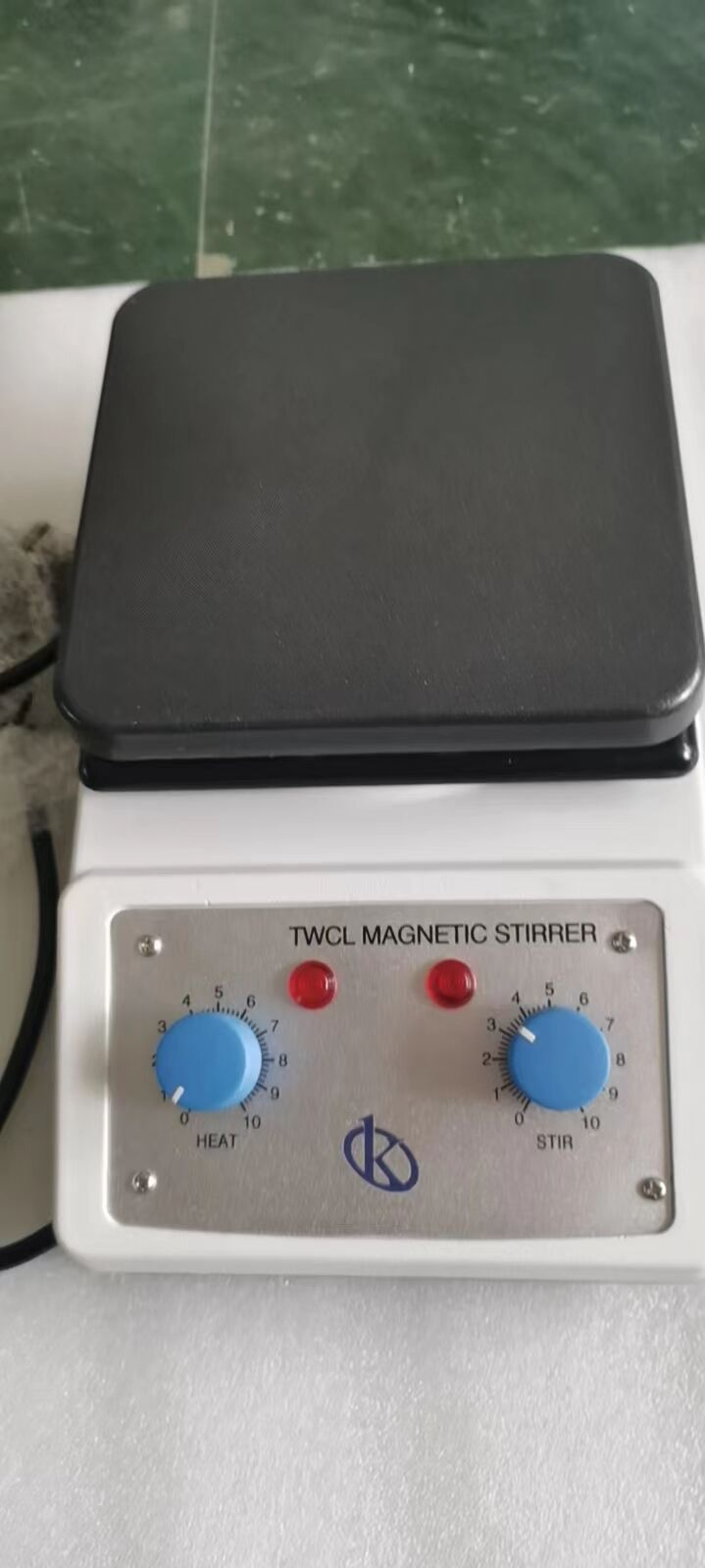

What is a Laboratory Magnetic Stirrer?
A magnetic stirrer is laboratory equipment that uses a rotating magnetic field to mix one or more solutes with a solvent in an automated way. It is considered the most widely used type of stirrer, since it is silent, efficient and does not have direct contact with the sample...
Hotplates and Hotplate Stirrers videos in operation
In this section you can find, our Hotplates and Hotplate Sirrers in operation, packaged, receiving service, etc.
Hotplate in operation
All laboratories use at least one heating plate for their daily operations. However, the use of heating plates in the laboratory is not limited to this. In fact, heating plates can be used for a variety of applications in the laboratory, such as sample preparation, testing and product storage.
Although heating plates are extremely useful in the laboratory, they can also be dangerous if not used correctly. It is important to note that the heat generated by a heating plate can be very intense and, if a hot surface is touched, a severe burn can occur. Therefore, it is important to ensure that they are used correctly and are kept out of the reach of children and people unfamiliar with their use.
