Anaesthesia Machines
Types of Anesthesia Machines for the Medical Sector

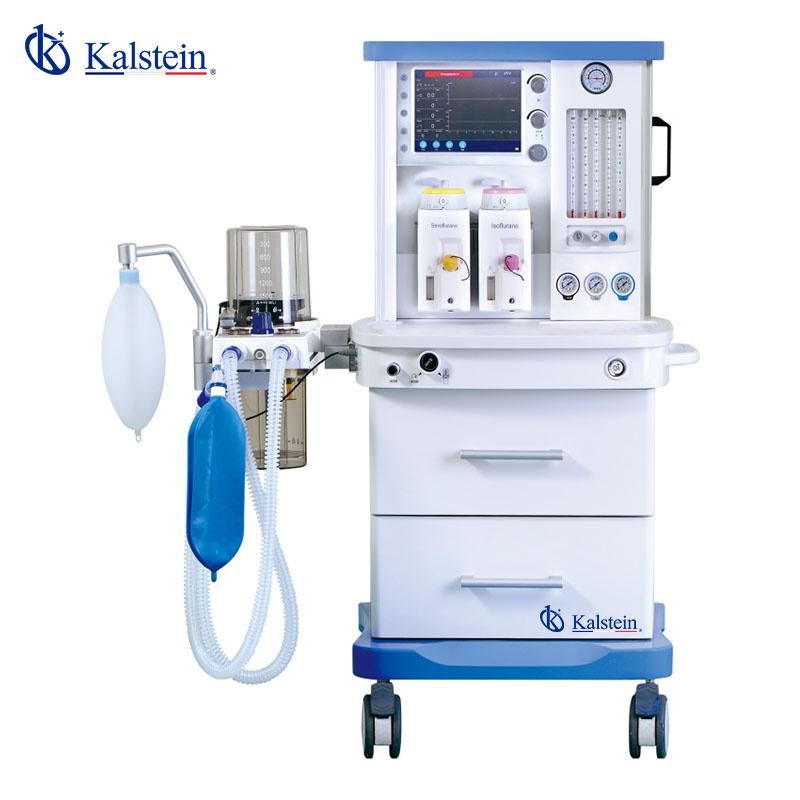

Anesthesia Machines YR02064-YR02069
Anesthesia machine has integrated all major ventilation modes such as assist, control and assist-control ventilation. It offers...

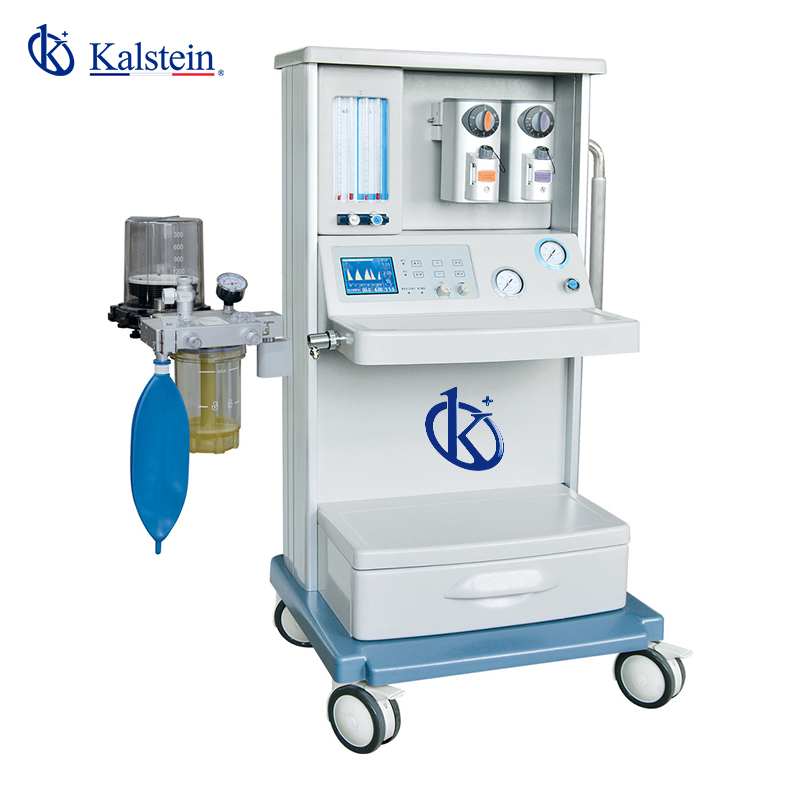

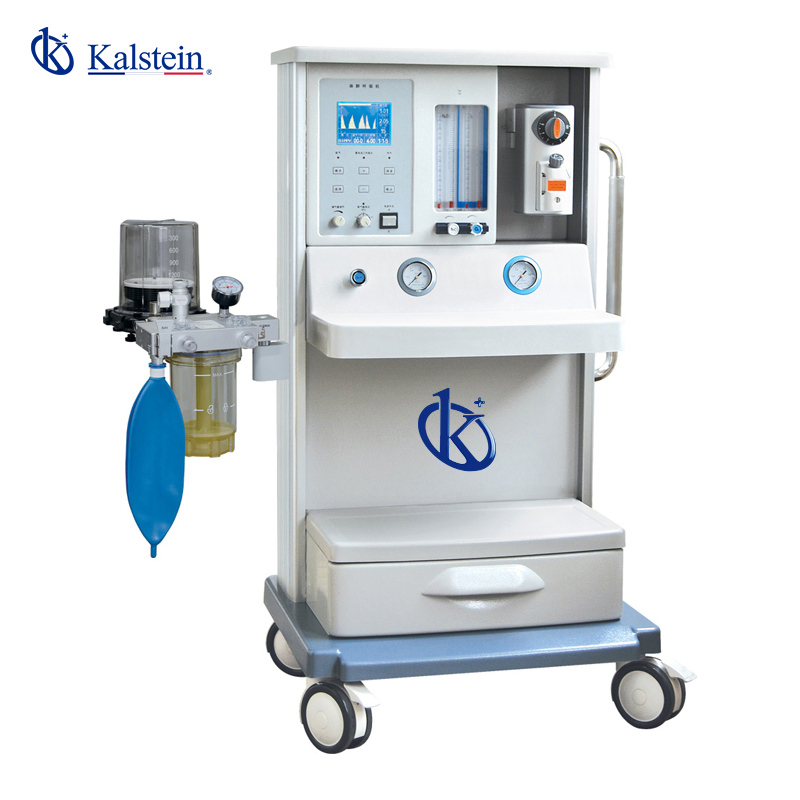

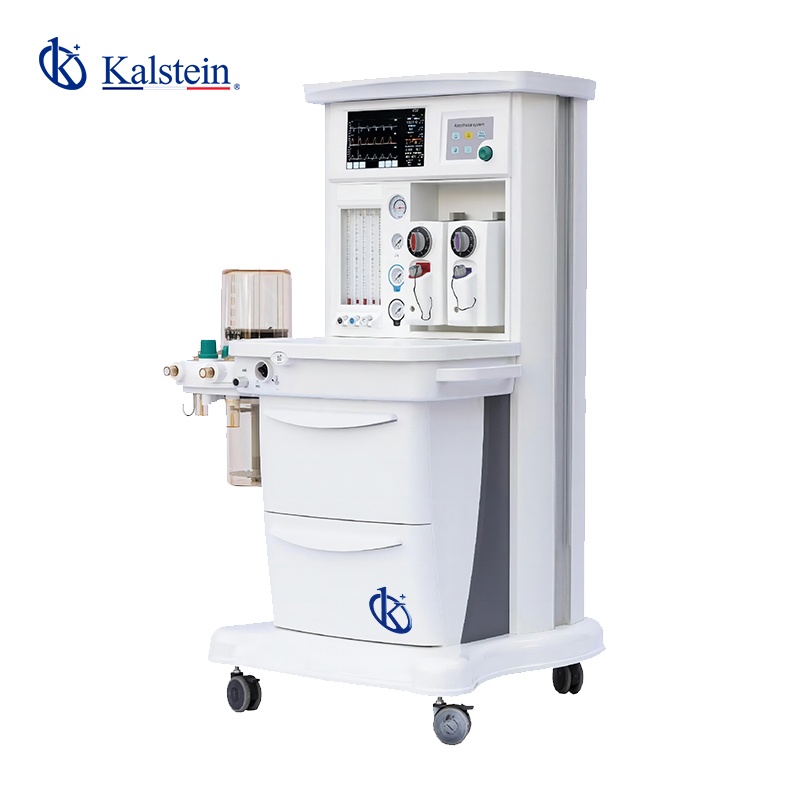

Anesthesia Machines YR02197 // YR02062 // YR02063
Anesthesia machine provides an affordable and flexible anesthesia solution for now and the future. Our customers...
Our best-selling Anesthesia Machine
Technical Description
- Anesthesia machine offers a high-precision output as low as 20ml.
- It has automatic tidal volume and compliance compensation.
- The anesthesia machine offers spontaneous and manual respiratory MV monitoring function.
- It has electronic PEEP function.
- The anesthesia delivery workstation uses autoclavable and latex free components.
- Users can benefit from the tool-free maintenance and cleaning of this equipment.
- The anesthesia machine is CE compliant, so clients can feel secure in purchasing it.
Model | YR02064 | YR02065 | YR02066 | YR02067 | YR02068 | YR02069 |
Dimension | 810x860x1360 mm (WxDxH ) | |||||
Weight | 110 kg | |||||
Type of anesthetic | Halothane, enflurane, isoflurane, sevoflurane, desflurane | |||||
Gas supply | O2 + N2O or O2 + N2O + Air | |||||
Inlet pressure | 280 ~ 650kpa (350 ~ 400kpa recommended) | |||||
Standard ventilation. mode | VCV, PCV, PLV, PSV, SIMV + VCV + PS, SIMV + PCV + PS | |||||
Visual display | 12.1 in color | |||||
Value visualization (configured and measured) | Tidal volume, minute volume, respiratory rate, I: E ratio, pressure limit | |||||
Graphic display | Airway pressure (Ppeak, Pmean, Pmax, Pplateau, PEEP), FiO2%, Compliance (ml / cmH2O), Pressure Support Level, Inspiratory, Window, P Trigger, Inspiratory End, EtCO2 and InCO2 (optional), CSI, BS%, SQI%, EMG% (optional) | |||||
Optional expansion | Waveforms PT, FT, VT, PV, PF, FV loops (for compliance, resistance, leak analysis), EtCO2 waveforms (when optional, EtCO2 module is present), CSI, BS%, SQI, EMG waveforms (when optional CSM is present)) | |||||
Additional functions | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM, 1x mainstream Et CO2 (Respironics) | 12.1 “external color LCD, E flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x AGCO, 1x Ohmeda Tec-7 isoflurane | External 12.1 ″ color LCD, E-flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM, 1xAGCO) | 12.1 “external color LCD, E flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 Isoflurane, 1xCSM, 1xAGCO, 1x Main Multigas Analyzer Phasein (CO2, N2O, 5 AA) |
Analysis of the best Anesthesia Machines for the Medical Sector
How is the Anesthesia Machine used in combination with drugs?
Drug Anesthesia is a surgical technique used to induce a state of general, regional or local anesthesia in patients...
The Anesthesia Machine, a whole invention - Kalstein
Becoming familiar with the Anesthesia apparatus for the anesthesiologist is one of its basic tasks, for which it...
What are the functions of an Anesthesia Machine? - Kalstein
This Machine is undoubtedly an indispensable piece of equipment in healthcare centers, clinics and hospitals...
How to understand and read an Anesthesia Machine? - Kalstein
The Anesthesia Machine is a hospital equipment essentially used for general, regional and intravenous sedation...
Catalog of Anesthesia Machine models for sale
Guides to becoming an Anesthesia Machine expert
How is the Anesthesia Machine Alarm System?
An Anesthesia Machine alarm system is a device that is responsible for warning anesthesiologists of sudden...
Risk management of Anesthesia Machines - Kalstein
The management of risks associated with Anesthesia Machines is one of the most important issues to ensure...
The Anesthesia Machine - Kalstein
Becoming familiar with the Anesthesia Apparatus for the Anesthesiologist is one of its basic tasks for which it requires not only...
Anesthesia Machine: Different types
Anesthesia Machines are specialized medical equipment used to administer an anesthetic agent to a patient during a surgical process. This gas, or anesthetic agent, promotes inhibition of skeletal muscle function. This equipment is a mixture of electrical, mechanical and pneumatic components, and incorporates all the components needed to perform general anesthesia, including vaporizers, ventilators, a respiratory system, monitors and scanning systems.Frequently asked questions about Anesthesia Machines
