Description

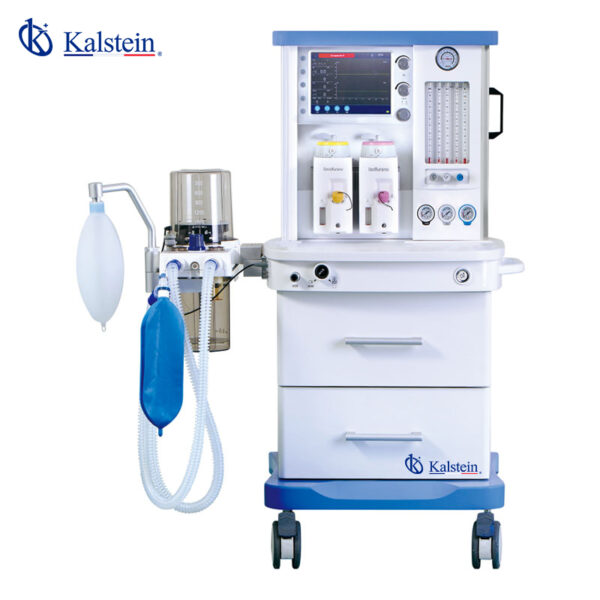

Anesthesia machine has integrated all major ventilation modes such as assist, control and assist-control ventilation. It offers comprehensive monitoring and has a clear display interface, to help perform high quality anesthesia delivery and management. The anesthesia machine is suitable for inhalational anesthesia delivery for adult, pediatric and neonatal patients.
Technical Description
- Anesthesia machine offers a high-precision output as low as 20ml.
- It has automatic tidal volume and compliance compensation.
- The anesthesia machine offers spontaneous and manual respiratory MV monitoring function.
- It has electronic PEEP function.
- The anesthesia delivery workstation uses autoclavable and latex free components.
- Users can benefit from the tool-free maintenance and cleaning of this equipment.
- The anesthesia machine is CE compliant, so clients can feel secure in purchasing it.
| Model | YR02064 | YR02065 | YR02066 | YR02067 | YR02068 | YR02069 |
| Dimension | 810x860x1360 mm (WxDxH ) | |||||
| Weight | 110 kg | |||||
| Type of anesthetic | Halothane, enflurane, isoflurane, sevoflurane, desflurane | |||||
| Gas supply | O2 + N2O or O2 + N2O + Air | |||||
| Inlet pressure | 280 ~ 650kpa (350 ~ 400kpa recommended) | |||||
| Standard ventilation. mode | VCV, PCV, PLV, PSV, SIMV + VCV + PS, SIMV + PCV + PS | |||||
| Visual display | 12.1 in color | |||||
| Value visualization
(configured and measured) |
Tidal volume, minute volume, respiratory rate, I: E ratio, pressure limit | |||||
| Graphic display | Airway pressure (Ppeak, Pmean, Pmax, Pplateau, PEEP), FiO2%,
Compliance (ml / cmH2O), Pressure Support Level, Inspiratory, Window, P Trigger, Inspiratory End, EtCO2 and InCO2 (optional), CSI, BS%, SQI%, EMG% (optional) |
|||||
| Optional expansion | Waveforms PT, FT, VT, PV, PF, FV loops (for compliance, resistance, leak analysis),
EtCO2 waveforms (when optional, EtCO2 module is present), CSI, BS%, SQI, EMG waveforms (when optional CSM is present)) |
|||||
| Additional functions | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM, 1x mainstream Et CO2 (Respironics) | 12.1 “external color LCD, E flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x AGCO, 1x Ohmeda Tec-7 isoflurane | External 12.1 ″ color LCD, E-flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM, 1xAGCO) | 12.1 “external color LCD, E flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 Isoflurane, 1xCSM, 1xAGCO, 1x Main Multigas Analyzer Phasein (CO2, N2O, 5 AA) |
