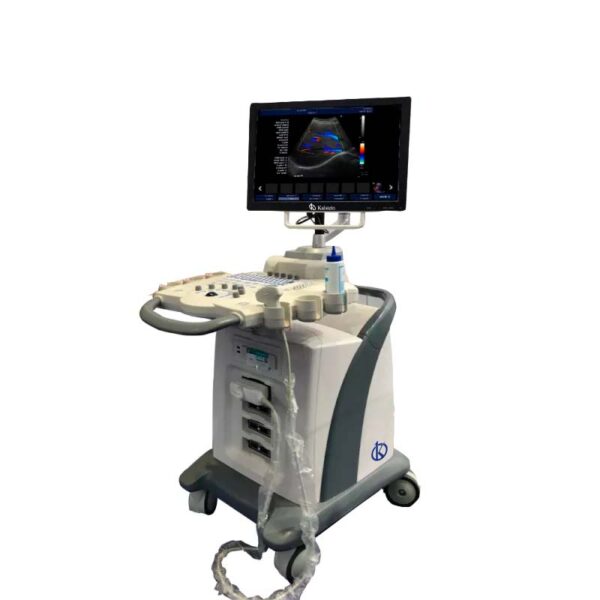

Color Doppler Ultrasound Cart with Wheels 3D Model YR05149

ManufacturerKalstein

Product Description

  • 15′ LED screen with multilingual function
  • Model CF+B simultaneously, PDI, DPDI, TDI, TSI, supports trapezoidal imaging, virtual convex matrix, and convex matrix expansion.
  • Anatomy M, Color mode M
  • pressure index
  • Complex model image
  • Automatic IMT measurement, automatic endometrial measurement, automatic quality assessment
  • Duplex and triplex PW can be switched freely
  • Automatic PW Tracking Measurements
  • Multiple Birth Measurements
  • Built-in DICIM 3.0 protocol, can print and send via DICOM 3.0
  • Integrated workstations, databases, image reports, fetal development curves, scoring standards, etc. can be inserted.
  • Online attention function, instruct the user how to operate in the next step.
  • The printed area is adjustable, which can be images, reports, or images + reports, etc.
  • User rights control, password can be set.
Technical description
Model YR05149
Connectivity/Media/Peripherals
Transducer Ports 4
USB ports 4
HDD 64GB (SSD), 120G/200GB SSD (optional)
foot switch USB
Ethernet port 2(100Mb/1000Mb)
External screen VGA,HDMI,
Printer (Optional) USB Printer, Digital Laser Printer, B/W Digital Thermal Printer
Printing area Image, report, Image+report
Cine/Picture Memory
Memory Cinema 1200 frames (max)
Film Review Speed 1, 2, 4, 8
Cinema Review Loop YES
Capture function YES
DICOM connectivity DICOM3.0 Compliant
3Dsoftware Built-in 3D software
Image Storage Storage Format: PNG, AVI, BMP, JPEG, DICOM

Export Video Format: AVI

Export Image Format: PNG, JPEG, BMP, DICOM

USB Flash Drive

Technology
Panoramic Imaging Technology

Full Digital Signal Processing Technology

Multi-Beamforming Technology

Spot Reduction Technology Tissue

Harmonic Imaging

Technology Dynamic Tissue Optimization Technology

Duplex and Triplex Synchronous Display

Directional Power Doppler Imaging

Parameters Imaging Parameters

special tissue presets

PW Auto Trace

Update online

CF+B mode on one screen

Complex model

imaging Automatic IMT measurements

Virtual Convex Array

Trapezoidal imaging

Overall Performance
Digital Broadband 12288 channels
Beam Former reprogrammable
Transmission voltage Adjustable (15 steps)
Beamformer Frequency Range 1~40MHz
Led monitor
Size (diagonal) fifteen”
Contrast Ratio 800: 01: 00
Resolution 1024×768 pixels
Brightness 230 cd / m2
Color Depth 24 bit
Rotation Angle ±90°
Gray levels 256
Imaging performance
Start Time (max.) Average < 90 seconds
Preset Switching Time Average < 1 second
Storage Time (Image to disk) Average < 0.5 seconds
transducers
Research Convex array probe Linear Array Probe intracavitary probe microconvex probe
Frequency Center 3.5MHz Central 7.5MHz Center 6.5MHz Center 4.0MHz
(2.0MHz to 10.0MHz) (6.0MHz to 10.0MHz) (5.0MHz to 9.0MHz) (2.0MHz to 5.5MHz)
field of play 0.516mm 0.352mm 0.216mm
Radio 60mm N/A 10mm

Additional Information

Weight 222 kg
Dimensions 162 × 72 × 95 cm
