Description

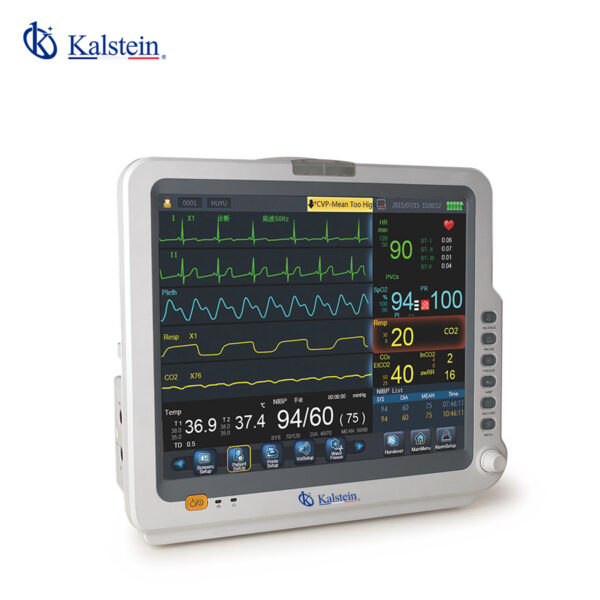

- 17-inch LCD screen 2 slots Semi-Modular Parameter Patient monitor can be used in OT and ICU. 6 standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Standard Configuration: 5-lead ECG, RESP, Dual-Temp, SpO2, NIBP
- Optional: Touch screen, Masimo/Nellcor SpO2, Dual-IBP, AG, C.O., BIS, 3/12-lead ECG, Suntech NIBP, EtCO2, Thermal Recorder, ICG, Trolley, Wall mount
Technical Specifications
| Model | YR02180 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Gain | x250, x500, x1000, x2000 | |
| Accuracy | ±5% | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -1.0~+1.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 40~240bpm |
| Accuracy | ±3bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 7~120BrPM | |
| Neo/Ped | 7~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
|
NIBP
|
Method | Oscillometric |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm / 40~150bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~99% (±2%) | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
