Description

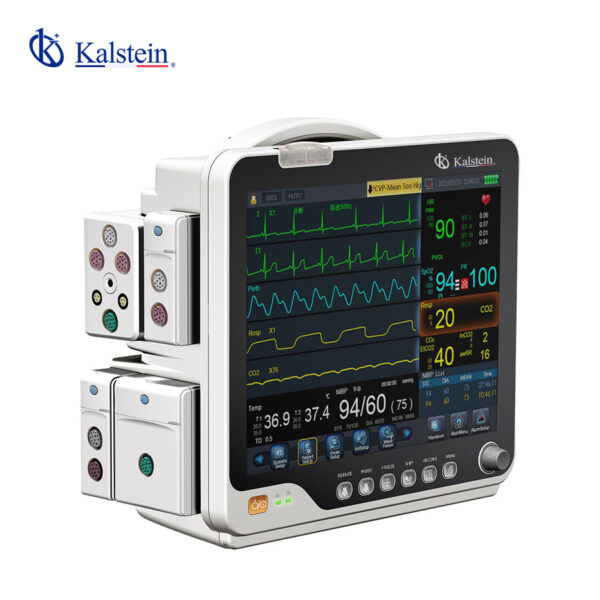

- 8.4 inch touchscreen; Embedded handle; Able to use module; 1.6kg of weight; 5 hours of battery life; No-fan design; Multiple interfaces for different departments.
- 8.4 inch touchscreen;
- Embedded handle and 1.6kg of weight, easy to carry;
- Able to use module, anesthetic depth and EtCO2 monitor modules available;
- 5 hours of battery life, covers the requirement of transfer of patience;
- Vehicle power supply supported;
- No-fan design ensures low noise;
- Multiple interfaces for different departments.
| Model | YR02176 |
|
Input
|
3 leads or 5 leads selectable |
| 3-conductor cable: RA; LA LL or R: L; F | |
| 5 Lead wire: RA: LA: RL: LL: V or R: LN: F: C | |
|
Selection of potential clients
|
3 leads: 1, 1, 111 |
| 5 leads: 1, Il, Il, AR, AVL, AVF. V | |
| ECG waveform | 2 channels |
| Win selection | x0.25, x0.5.x1, x2.x4, Automatic |
| Sweep speed | 12.5mm / s, 25mm / s, 50mm / s |
| Heart rate | for newborns 15-350BPM |
| Heart rate | for AdulVPediatric 15-300BPM |
| Precision | 1 bpm or 1%, whichever is greater |
| Resolution | 1 bpm |
| Filter diagnostic mode | 0.05-100 Hz |
| Monitor mode | 0.5-40 Hz |
| Surgical mode | 1.0-25Hz |
| Protection | Withstands 4000VAC / 50Hz voltage in isolation Against electrosurgical interference and defibrillation |
|
Alarm range
|
Newborn: 15-350 BPM |
| Adult / pediatric: 15-300 BPM | |
| ST segment detection | Measurement range: -2.0 mv to 2.0 mv |
| Alarm range | -2.0m and 2.0mv |
| Arrhythmia analysis | Yes |
| Alarm | audible and visual alarm, recoverable alarm event |
| Rhythm detection | Yes |
| Calculation of drug dose | Yes |
| Standby mode | Yes |
| Breathing | |
| Method | Tooraclc impedance |
|
Measuring range
|
Newborn / Pediatric: 0-150 RPM |
| Adult: 0-120 RPM | |
| Apnea alarm | No alarm, 10s, 15s, 20s, 25s, 30s, 35s 40s selectable |
| Alarm | Audible and visual alarm, recoverable alarm events |
| NIBP | |
| Method | Oscillometric |
| Measurement modes | Manual / Automatic / Continuous |
| Displayed parameters | Systolic, diastolic and MAP (mean arterial pressure) |
| Automatic measurement time | Adjustable |
| Unit of measurement | mmHg / kPa selectable |
| Type of measure | Systolic, Dlastolic. Piss |
|
Systollc pressure range
|
Adult: 40-270 mmHg |
| Pediatric: 40-200 mmHg | |
| Newborn: 40-135 mmHg | |
|
Diastolic pressure range
|
Adult: 10-210 mmHg |
| Pediatric: 10-150 mmHg | |
| Newborn: 10-100 mmHg | |
|
Medium pressure range
|
Adult: 20-230 mmHg |
| Pediatric: 20-165 mmH | |
| Newborn: 20-110 mmHg | |
| Precision | ± 5 mmHg |
| Resolution | 1 mmHg |
| Alarm | Systollc, Diastollc, Mean |
| Overpressure protection | Double safety protection |
