Description

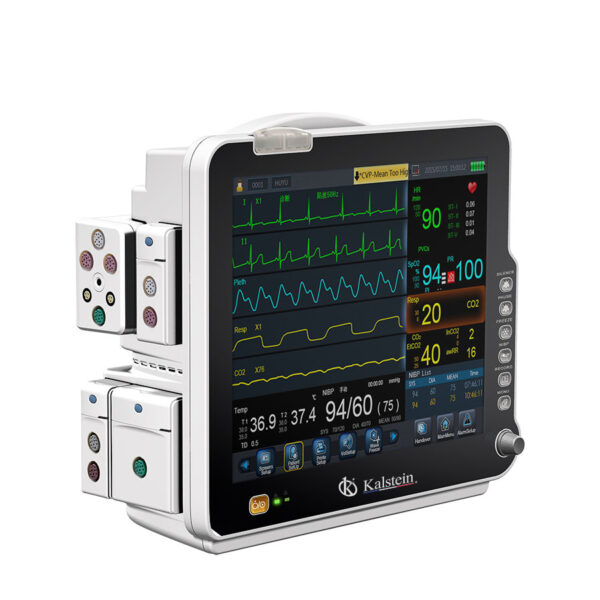

The Multi-parameter Patient Monitor YR02177 is a state-of-the-art medical device designed to provide comprehensive monitoring in critical healthcare environments such as operating rooms and intensive care units. Featuring a robust 17-inch LCD display and customizable modular parameter configurations, this monitor allows healthcare professionals to tailor its functionalities to meet the unique needs of each patient. Standard monitoring capabilities include ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, offering vital insights into patient health to facilitate timely interventions.
Market Price
The competitive arena of multi-parameter patient monitors presents a wide array of price points, influenced by features, reliability, and quality. The Multi-parameter Patient Monitor YR02177 is typically priced in the range of $4300 to $5100 USD. This range highlights its cutting-edge capabilities and premium components, which ensure precision and reliability in patient care monitoring.
Frequently Asked Questions
What type of patients can be monitored? The monitor is suitable for adult, pediatric, and neonatal patients, with tailored heart rate and respiration ranges for each category.
Is the device portable? Yes, this monitor offers versatility through mounting options on a trolley or wall, adapting effortlessly to diverse clinical settings.
Does it come with a warranty? Indeed, the device usually includes a manufacturer’s warranty, which is advisable to confirm upon purchase.
Advantages and Disadvantages
The Multi-parameter Patient Monitor YR02177 is renowned for its high accuracy, modular design for flexible monitoring, and sturdy construction. However, the initial investment may pose a challenge for smaller medical practices.
Product Usage in the Field
This monitor is crucial in operating rooms and intensive care settings, where real-time patient monitoring is imperative. Its ability to track multiple physiological parameters allows for early interventions, thereby improving patient outcomes significantly.
Recommendations
To maintain seamless functionality, regular maintenance checks and software updates are suggested. It is recommended to operate the device in a clean and secure environment, following the user manual for best practices.
Features
- 17-inch LCD display
- Standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Modular design for customizable monitoring
- Optional advanced monitoring options available
- Audio-video alarm system
- Easy integration into various clinical settings
Technical Specifications
| Model | YR02177 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
