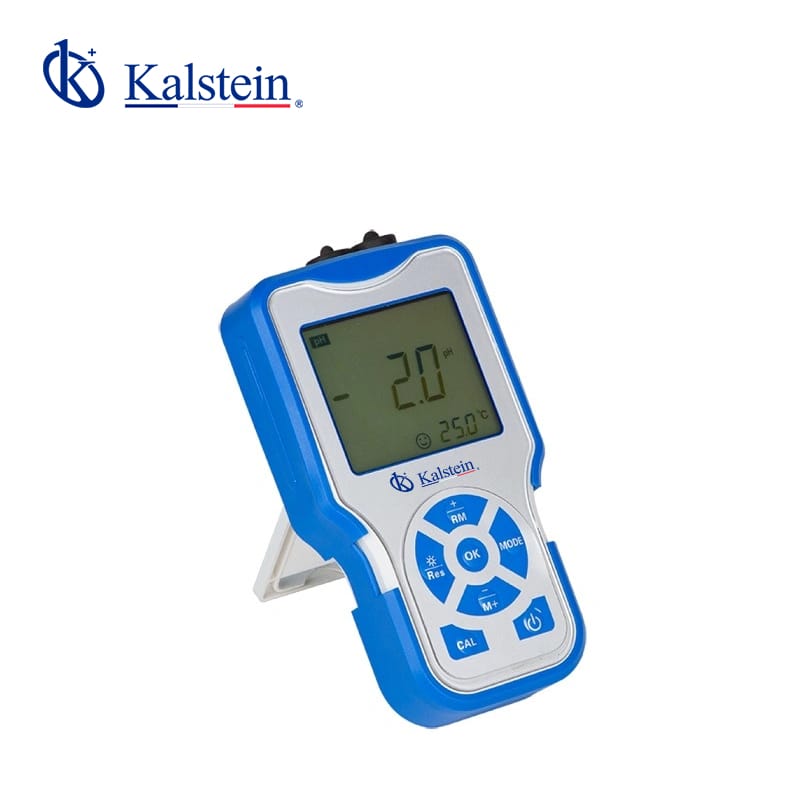

Description
- Large LCD screen with controllable white backlight.
- Built-in microprocessor chip has Intelligent functions such as auto calibration, ATC, data storage, function settings, auto diagnosis, auto power off, and undervoltage prompt, etc.
- It has functions of ATC, auto salinity compensation and manual pressure compensation.
- Polarographic DO electrode, short polarization time (3-5 minutes).
Technical Specifications
| Model | YR06380 | |
|
DO
|
Measuring range | (0 ~ 20.00) mg/L(ppm), (0 ~ 200.0)% |
| Resolution | 0.1/0.01 mg/L(ppm), 1/0.1 % | |
| Accuracy | Electrode: ±0.10 mg/L, Instrument: ±0.40 mg/L | |
| Response time | ≤30s (25ºC, 90%response) | |
| Residual current | ≤0.1 mg/L | |
| Temp. compensation | (0 ~ 45)ºC (auto) | |
| Salinity compensation | (0 ~ 45) ppt (auto) | |
| Pressure compensation | (66 ~ 200) kPa (manual) | |
| Auto calibration | Air saturated by water, water saturated by air | |
| Electrode type | Polarographic | |
|
Temp.
|
Measuring range | (0 ~ 100)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
|
Other
|
Data storage | 200 sets |
| Power | Two AA batteries (1.5V x2) | |
| Ambient Temp. | 5 ~ 35 ºC | |
| Ambient humidity | ≤85% | |
| IP grade | IP57 Dustproof and waterproof | |
| Dimensions/N.W. | (65×120×31)mm/180g | |
| Shipping size/G.W. | (460×300×55)mm/1Kg | |
