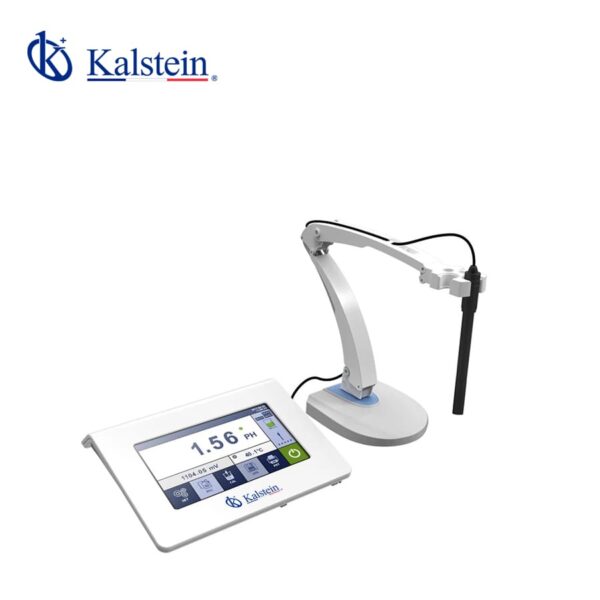

Description
- 7-inch colored capacitive touch screen with high resolution (1024*600) and high sensitivity.
- Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc.
- It supports wireless Bluetooth printing and PC connection. Real-time data transfer to mobile phone by Bluetooth is optional.
- Smart electrode status display to ensure accurate use.
- Can store 1000 sets of test data, which can be saved and transferred to USB memory stick and opened with Excel.
Conductivity mode
- Adopt advanced conductivity measurement technology, with conductivity electrode (K=1), it can meet measuring accuracy requirement for range of 0.5μS/cm ~ 200mS/cm.
- Can switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
- Auto recognition of 8 conductivity standard solution with 2 kinds of options: Europe & USA, and China.
DO mode
- It has functions of ATC, auto salinity compensation and auto pressure compensation.
- Polarographic DO electrode, short polarization time (3-5 minutes).
Technical Specifications
| Model | YR06384 | |
|
Cond.
|
Measuring range
|
Conductivity: |
| (0.00~20.00)μS/cm, (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm, (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm, | ||
| (200~2000)mS/cm (K=10) | ||
| TDS:(0 ~ 100)g/L | ||
| Salinity:(0 ~ 100)ppt | ||
| Resistivity:(0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
| Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
| Temp. compensation range | (0 ~ 50)ºC, auto | |
| Electrode constant | 0.1/0.5/1/5/10/50/100 cm-1 | |
| Reference Temp. | 25ºC,20ºC,18ºC | |
|
DO
|
Measuring range | (0 ~ 20.00)mg/L(ppm) (0 ~ 200.0)% |
| Resolution | 0.1/0.01 mg/L(ppm) 1/0.1 % | |
| Accuracy | Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L | |
| Response time | ≤30s (25ºC, 90%response) | |
| Residual current | ≤0.1 mg/L | |
| Temp compensation | (0 ~ 45)ºC, auto | |
| Salinity compensation | (0 ~ 45) ppt, auto | |
| Pressure compensation | (80 ~ 105) kPa, auto | |
| Auto calibration | Air saturated by water; water saturated by air | |
| Electrode type | Polarographic | |
|
Temp.
|
Range | (-10 ~ 110)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
|
Other
|
Display | 7-inch colored capacitive touch screen |
| Data storage | 1000 sets | |
| Power | 12V/1A | |
| Output | USB, RS232, Bluetooth | |
| Ambient Temp. | 15 ~ 30 ºC | |
| Ambient Humidity | ≤85% | |
| IP grade | IP54 | |
| Dimensions/N.W. | 240×170×70mm/600g | |
| Shipping Size/G.W. | 470x430x85mm/2.6kg | |
