Description
• Monitoring of adults, children and newborns is supported;
• Slim body with hidden handle, easy to move;
• Visual and audible alarm with alarm light in three colors;
• Lithium battery inside;
• Fanless design, meets multi-patient ward requirements;
• Capable of saving data when power supply fails.

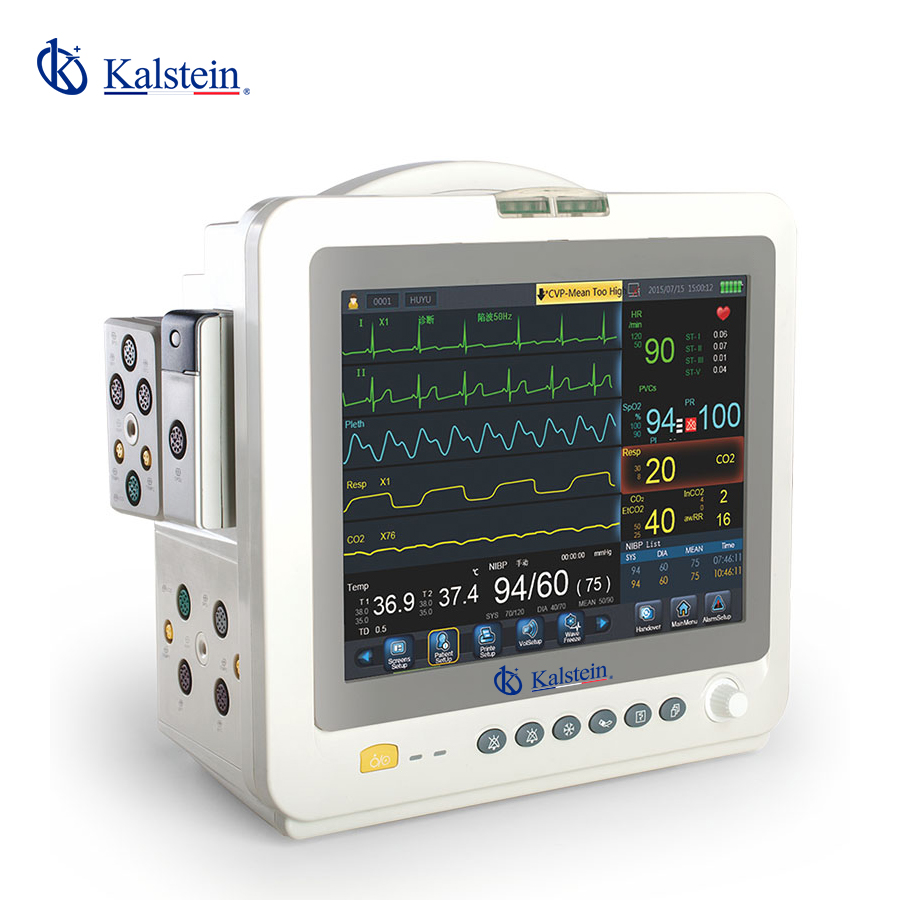

| Model | YR02178 | YR02179
|
|
| Input
|
3 leads or 5 leads selectable | ||
| 3 conductor cable: RA; LA LL or R: L; F | |||
| 5 Lead wire: RA: LA: RL: LL: V or R: LN: F: C | |||
| Selection of potential clients
|
3 leads: 1, 1, 111 | ||
| 5 leads: 1, Il, Il, AR, AVL, AVF. v | |||
| ECG waveform | 2 channels | ||
| win selection | x0.25, x0.5.x1, x2.x4, Auto | ||
| sweep speed | 12.5mm/s, 25mm/s, 50mm/s | ||
| Heart rate | for newborns 15-350BPM | ||
| Heart rate | for Adult Pediatric 15-300BPM | ||
| Precision | 1 bpm or 1%, whichever is greater | ||
| Resolution | 1 bpm | ||
| Filter
|
Diagnostic mode: 0.05-100Hz | ||
| Monitor mode: 0.5-40Hz | |||
| Surgical mode: 1.0-25Hz | |||
| Protection
|
Withstand voltage of 4000VAC / 50Hz in isolation | ||
| Against electrosurgical interference and defibrillation | |||
| alarm range | 15-350bpm | ||
| ST segment detection
|
Measurement range: -2.0mv to 2.0mv | ||
| Alarm range: -2.5mv to 2.5mv | |||
| arrhythmia analysis | Yes | ||
| Alarm | audible and visual alarm, recallable alarm event | ||
| rhythm detection | Yes | ||
| Drug dose calculation | Yes | ||
| Standby mode | Yes | ||
| Breathing | |||
| Method | Tooraclc impedance | ||
| Measuring range
|
Newborn / Pediatric: 0-150 RPM | ||
| Adult: 0-120 RPM | |||
| apnea alarm | No alarm, 10s, 15s, 20s, 25s, 30s, 35s, 40s selectable | ||
| Alarm | Audible and visual alarm, recallable alarm events | ||
| ETCO2 (optional) | |||
| Measuring range | 0-99mmHg | ||
| Precision
|
0 to 40mmHg ± 2mmHg | ||
| 41 to 76mmHg ± 5mmHg | |||
| 77 to 99 mmHg ± 1 0 mmHg | |||
| Sample flow rate
|
Minimum: 50ml/m-7.5ml/m | ||
| Maximum: 50ml/m + 15ml/m | |||
| Start-up file
|
<1 min, once the module boots up, it reaches ISO | ||
| After 1 minute, enter full accuracy mode | |||
| respiratory rate | 0 to 120rpm | ||
| Respiratory Rate Accuracy | ±2rpm | ||
| Response time | <240ms (10% to 90%) | ||
| Additional characteristics | 10.4” screen, ECG, SpO2, RESP, NIBP, TEMP & PR | 12″ display, ECG, SpO2, RESP, NIBP, 2*TEMP & PR | |
