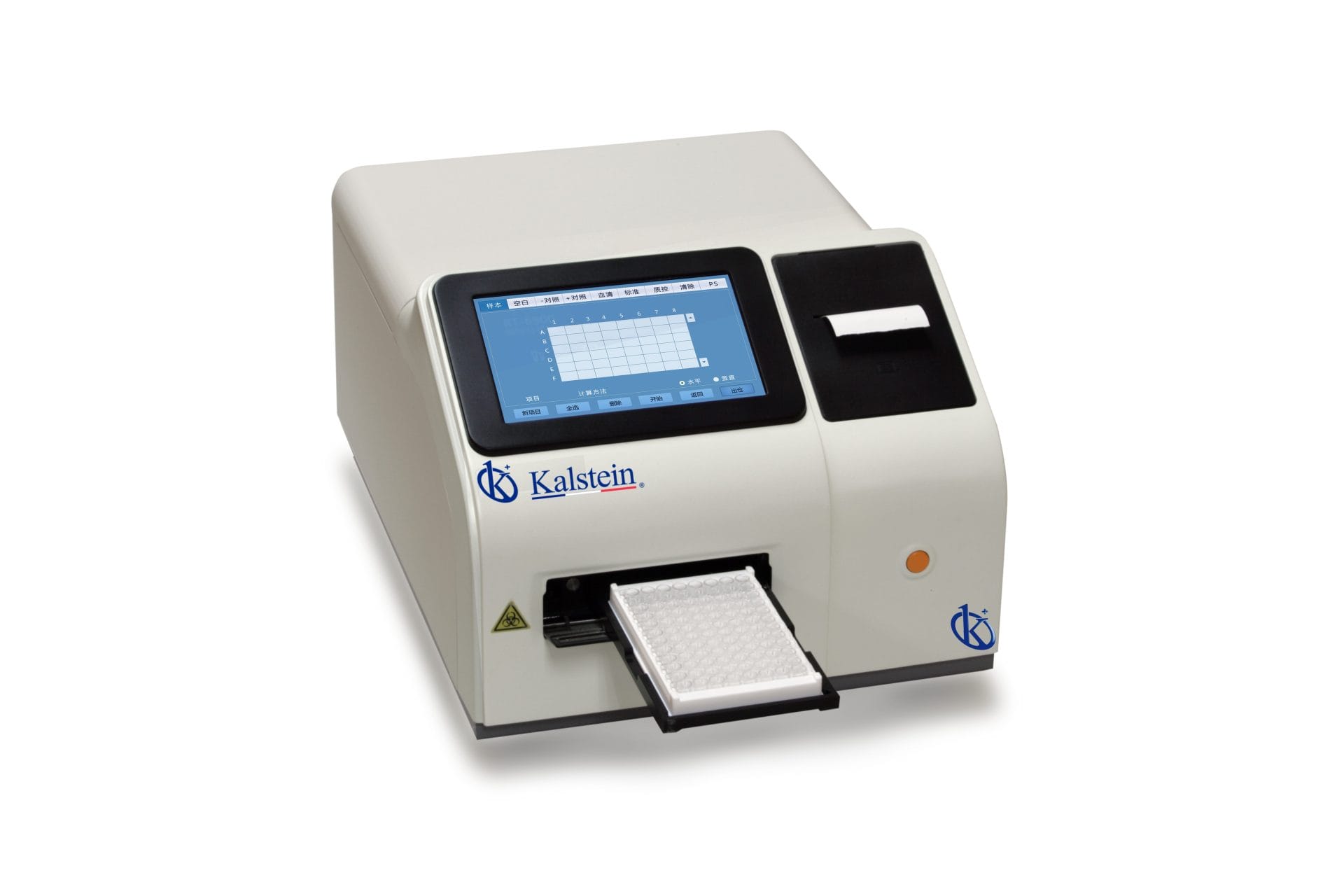

Microplate Elisa Reader YR05128

Manufacturer: Kalstein

Product Description

  • New design and platform
  • Fixed time, End Point methods
  • Large LCD display with touch screen
  • 4 fixed filters and 3 more filters optional
  • 8-channel optical fiber system
  • 5 seconds reading for whole plate
  • Auto self-check when power on
  • Powerful QC function

Technical Specifications

Model YR05128
Absorbance range 0 – 4.000Abs
Resolution 0.001 Abs (displayed), 0.0001 Abs (calculated)
Light source 6V/19W halogen lamp
Optical system 8-channel optical fiber system
Lengths 4 standard filters wave: 405 nm, 450 nm, 492 nm, 630 nm, 3 additional optional filters
Wavelength accuracy 2 nm
Bandwidth 8 nm
Calculation method ABS, cut, multipercentage, percentile registry, linear. Exponential, Index, Regression 4PL, etc.
Methodologies Endpoint, Fixed time, Kinetics
Type Standard microplate with 96 wells or other types of microplate and strip
Reading speed 5 seconds for a 96-well plate (single-wavelength)
Memory Storage for up to 100 programs and 10,000 sample results
Printer Internal thermal printer, optional external printer
Dimensions (mm) 425 (length) x 310 (width) x 215 (height)
Weight 12kg

Additional Information

Weight 13 kg
Dimensions 53 × 41 × 35 cm
