Description
Discover the precision and ergonomics with the Liquid Handling Pipettes YR03730 / YR03730-8. These air-displacement pipettes come with fully adjustable volume settings that are conveniently displayed on a digital indicator. Whether you are working in a laboratory setting or conducting field research, the YR Pipette Series offers enhanced accuracy and reliability with ease of use. With features such as color-coded volume indication and a design that ensures low operating force, these pipettes are tailored for optimal performance and user comfort.
Market Price
When looking at the wider market for liquid handling pipettes, prices can vary significantly based on features and precision. Typically, the price range for reliable pipettes can start as low as $40 and can reach up to $150. Investing in a quality pipette means investing in precise results, making a model like the YR03730 series a cost-effective choice for many laboratories.
Frequently Asked Questions
1. What is the sterilization process for this model?
The YR03730 pipette series can be sterilized at 121°C, specifically for the lower half part.
2. How can I adjust the volume?
The volume is fully adjustable and is displayed on a digital indicator for simple and accurate settings.
Advantages and Disadvantages
The main advantages of the Liquid Handling Pipettes YR03730 / YR03730-8 include their ergonomic design, low operating force, and digital volume display. Additionally, the ability to sterilize parts makes them hygienic for lab use. However, some users may find the reliance on digital displays a challenge if they prefer analog systems.
Field Use
The YR03730 series is ideal for precise liquid measurements in laboratory environments, including biological and chemical research. Its ergonomic design and adjustable volume allow researchers to handle a variety of tasks efficiently, from small-scale experiments to larger sample processing.
Recommendations
For optimal performance, it is recommended to periodically check the calibration of the pipettes. Proper cleaning and maintenance, especially after handling corrosive or volatile substances, will prolong the lifespan of the pipettes. Consider using Kalstein Plus for automatic quotations and managing your laboratory equipment needs effortlessly.

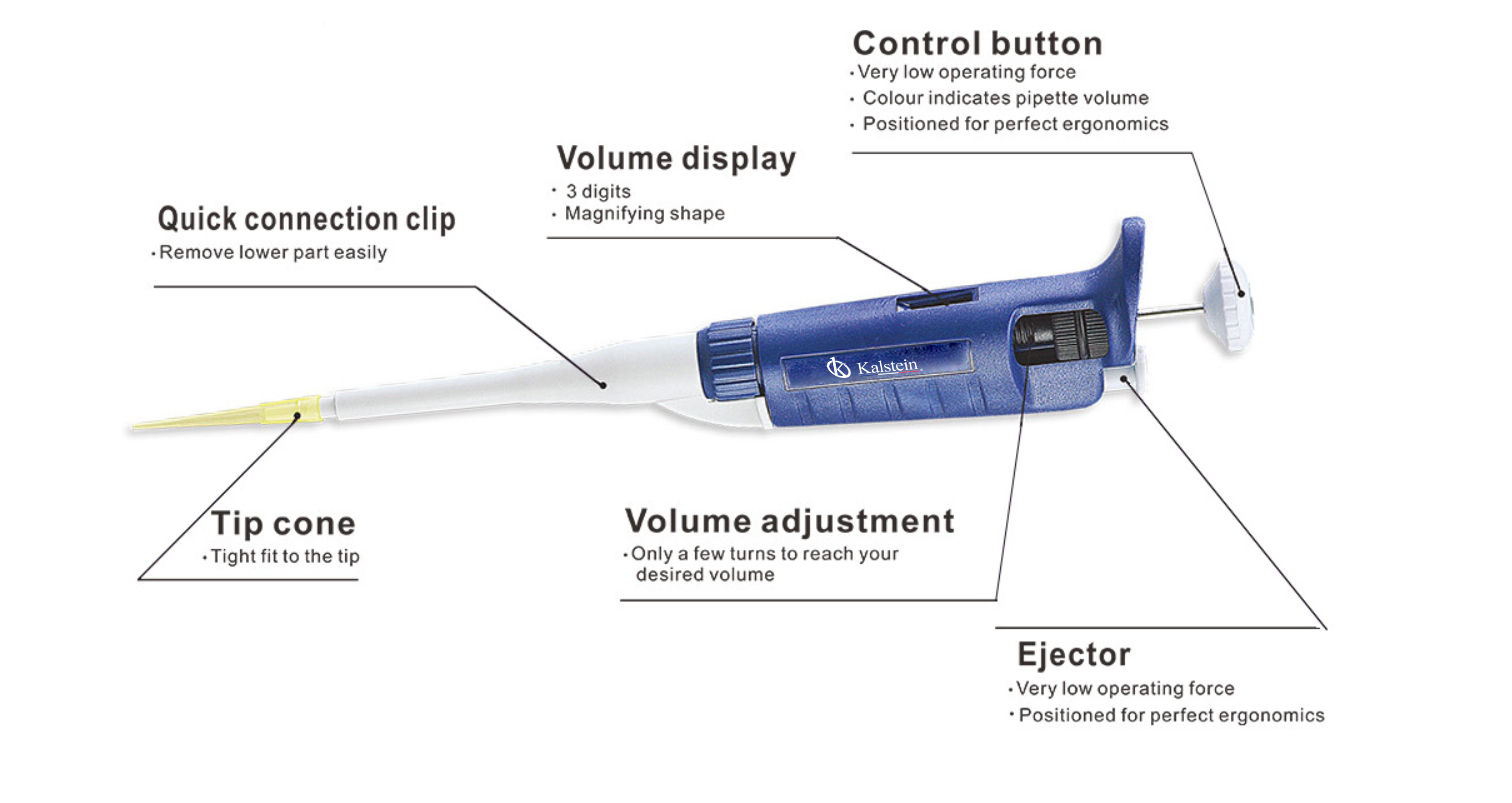

Features
- 3-digit digital display for precise volume settings
- Magnifying shape for better readability
- Autoclavable at 121°C for lower-half part
- Ergonomically positioned with very low operating force
- Color-coded for easy identification of pipette volume
Technical Specifications
| Model | Volume Range | Accuracy | Repeatability |
| YR03730 | 0.1 – 2μl | ±12.0 – 1.5% | ≤6.00 – 0.70% |
| YR03730-1 | 0.5 – 10μl | ±2.5 – 1.0% | ≤1.50 – 0.40% |
| YR03730-2 | 2 -20μl | ±2.5 – 1.0% | ≤1.50 – 0.30% |
| YR03730-3 | 5 – 50μl | ±2.0 – 1.0% | ≤1.50 – 0.25% |
| YR03730-4 | 10 – 100μl | ±1.8 – 0.8% | ≤0.50 – 0.15% |
| YR03730-5 | 20 – 200μl | ±1.8 – 0.6% | ≤0.50 – 0.15% |
| YR03730-6 | 100 – 1 000μl | ±1.5 – 0.6% | ≤0.30 – 0.15% |
| YR03730-7 | 500 – 5 000μl | ±1.2 – 0.6% | ≤0.30 – 0.15% |
| YR03730-8 | 1 – 10ml | ±2.5 – 0.6% | ≤0.30 – 0.15% |
