Description

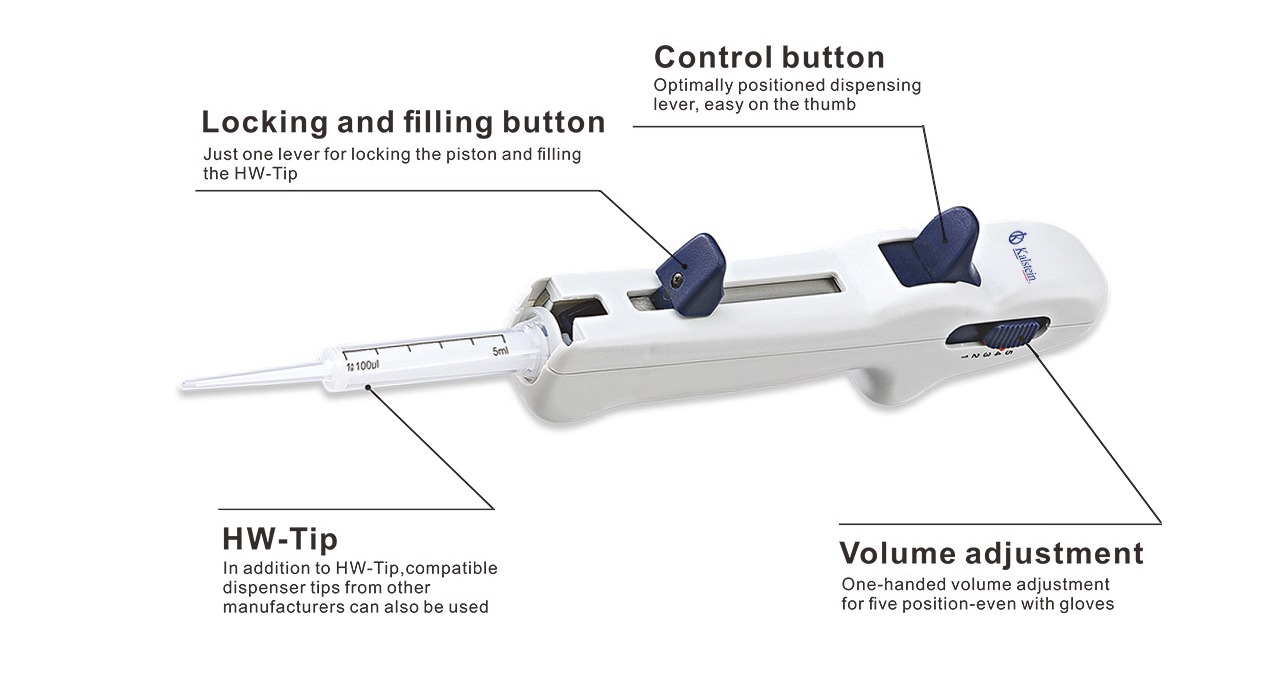

YR Repetitive pipette and tips work on the direct displacement principle. This offers the highest-precision dispensing of liquid media with high viscosity, high density, or high vapor pressure. Direct displacement permits contamination-free operation, since no aerosols are formed. Offers 35 different partial volumes with different numbers of dispensing steps, depending on the tip size and stroke setting number set.
|
Model
|
Settings | 1 | 2 | 3 | 4 | 5 | ||
| Steps | 49 | 24 | 15 | 11 | 9 | |||
| ml | Volume (μl) | Accuracy | Repeatability | |||||
| YR03742 | 0.5 | 10 | 20 | 30 | 40 | 50 | ±0.9% | ≤1.40 – 0.60% |
| YR03742-1 | 1.25 | 25 | 50 | 75 | 100 | 125 | ±0.9% | ≤0.80 – 0.30% |
| YR03742-2 | 2.5 | 50 | 100 | 150 | 200 | 250 | ±0.8% | ≤0.80 – 0.20% |
| YR03742-3 | 5.0 | 100 | 200 | 300 | 400 | 500 | ±0.6% | ≤0.60 – 0.20% |
| YR03742-4 | 12.5 | 250 | 500 | 750 | 1 000 | 1 250 | ±0.4% | ≤0.40 – 0.20% |
| YR03742-5 | 25 | 500 | 1 00 | 1 500 | 2 000 | 2 500 | ±0.4% | ≤0.40 – 0-20% |
| YR03742-6 | 50 | 1 00 | 2 000 | 3 000 | 4 000 | 5 000 | ±0.4% | ≤0-40 – 0.15% |
