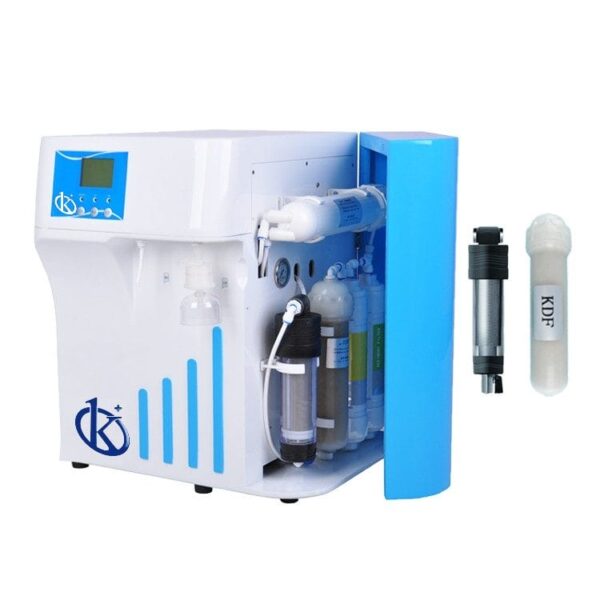

Water Purification System YR54 / YR54-3

Description

Atomic absorption/emission spectroscopy, mass spectrum, TOC detection, environmental monitoring, biochip development, trace organic matter análisis

ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, self-priming door.
Type U Korean quick-insert filters, used imported filtering materials.
Upgraded self-cleaning filter which with design of built-in 10’’ 10μm stainless steel filter mesh and silicone soft scraping, it can clean anytime, perfectly replace PP cotton filter, no need exchange.
Long-acting KDF filter whose adsorption efficiency and lifetime are more than 10times as equal quantity activated carbon filter’s, this avoid frequent filter replacement.
Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.
Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.

Model	YR54	YR54-1	YR54-2	YR54-3
Ribonuclease (RNases)	N/A	N/A	<1pg/ml	<1pg/ml
Pyrogen (endotoxin)	N/A	N/A	< 0.001 Eu/ml	< 0.001 Eu/ml
Inlet water source	Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C
Water flow speed	1.5-2L/min ( with pressure barrel)
Machine capacity	15 L/H	30 L/H	15 L/H	30 L/H
Output Water quality	RO water: desalination rate as high as 95-99% (when using new RO membrane)
	UP water: resistivity 18.25MΩ.cm@25°C (higher than laboratory water standard) TOC: <3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/ml
