Description

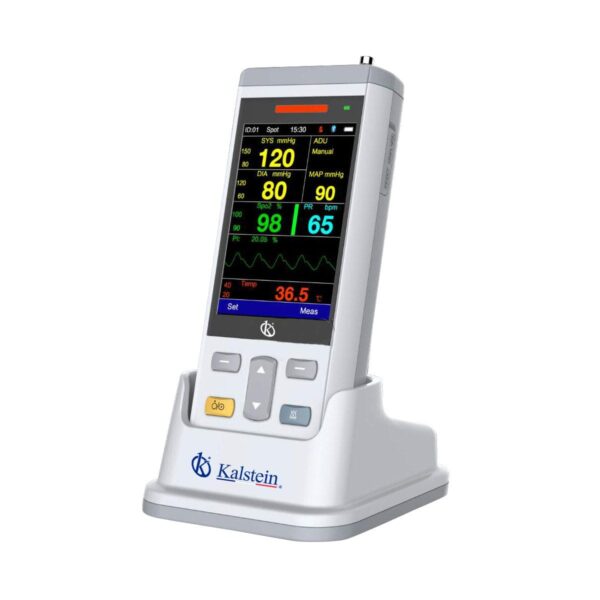

The smallest and exquisite handheld vital sign monitor in the worldwide.
Accurate measurement in 0.05% Low Perfusion Index, the word leading production in the movement environment
Provide the parameter of Pl( Perfusion Index 0.05%-20%)
Accurate measurement in all kind of extreme environment measurement such as neonatal and shock patients
Features
- NIBP adopt
- SAWAA (Self-Adaptive-Waveform-Amplitude-Adjust)algorithm and SAFD(Self-Adaptive-Fast-Deflation)algorithm
- Easy operation by 3.5” color TFT
- Up to 100 users ID switch
- Multiple vital signs measurement parameters for collocation optional:
- NIBP, SpO2, Temp
- NIBP, Temp
- SpO2, Temp
- Two measurements mode: Spot, Monitoring
- Data storage capabilities, support for historical data view and trend chart back to see
- In monitoring mode, can continuously record 48 hours of measurement data
- In spot mode, 100 users ID, each user can store 200sets data
- Support audio and visual alarm, support to set alarm upper and lower limit values
- Lithium ion battery power supply
- Optional Charging dock
Technical Specifications
| Model | YR06106 |
| Display | 3.5 ” color TFT |
| Resolution | 320*480 |
| Indicator | Alarm indicator, Power indicator |
| Trace | 1 plethysmogram waveform |
| Alarm | Probe off, low power |
| Modes | Visual and Audio |
| Application | Neonatal, pediatric and adult patients |
| Temperature Measurement range | 25-45°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | 0.1°C |
| Power Type | Lithium ion battery |
| Operation time | 8 hours for normal operation |
| Storage/ Transportation | -20℃～65℃ |
| Humidity | Operating: 15% to 90% noncondensing |
| Altitude | Operating Altitude: Up to 5000 meters |
| Dimension | 146mm*67mm*30mm |
| Weight | 250g |
