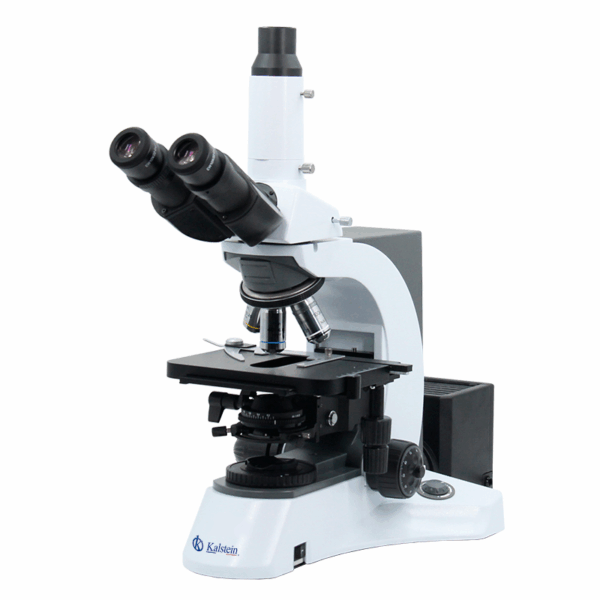

| Model |
YR0231 |
| Optical System |
Infinity Plan Optical System |
| Function |
Bright Field, Optional Dark Field, Polarizing, Phase Contrast, Fluorescent |
| Head |
Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary 48~75mm, Left Eyepiece Tube Diopter Adjustable |
| Eyepiece |
Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm |
| Nosepiece |
Backward Quintuple Nosepiece, With Slide Slot |
| Objective |
Infinity Plan Achromatic Objective 4x,10x,40x,100x |
| Focusing |
Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm |
| Working Stage |
Double Layer Mechanical Stage, 185*142mm, Moving Range 55*75mm |
| Condenser |
Swing Out Condenser N.A.0.9/0.25 |
| Illumination |
Halogen Lamp 6V30W, External Kohler Illumination, With Asperical Collector, Brightness Adjustable |
| Filter |
Green, Blue |
| Adapter |
Trinocular Adapter + Eyepiece Tube Photo Adapter Dia.23.2mm |
| Optional Accessories |
| Head |
Seidentopf Binocular Head, 30° Inclined, Interpupillary 48~75mm |
YR0231-op1 |
| Upgrade to Tilting Binocular Head 5°~35° |
YR0231-op2 |
| Upgrade to Tilting Trinocular Head 5°~35° |
YR0231-op3 |
| Eyepiece |
Extra Wide Field Eyepiece EW10x/20mm, Eyepiece Tube Dia.30mm |
YR0231-op4 |
| Extra Wide Field Eyepiece EW20x/12mm, Eyepiece Tube Dia.30mm |
YR0231-op5 |
| Extra Wide Field Eyepiece EW15x/16mm, Eyepiece Tube Dia.30mm |
YR0231-op6 |
| Objective |
Infinity Plan Achromatic Objective 20x |
YR0231-op7 |
| Infinity Plan Achromatic Objective 60x |
YR0231-op8 |
| Nosepiece |
Sextuple Nosepiece |
YR0231-op9 |
| Illumination |
Upgrade To Halogen Lamp 24V50W, For Better Dark View |
YR0231-op10 |
| Upgrade To Halogen Lamp 24V100W, For Better Dark View |
YR0231-op11 |
| Adapter |
0.45x C-Mount |
YR0231-op12 |
| Dark Field |
Dark Field Condenser, N.A. 0.7~0.9, Dry, |
YR0231-op13 |
| Use With 40x Or Lower Magnification Objective |
| Dark Field Condenser, N.A. 1.25~1.36, Immersion, |
YR0231-op14 |
| Use With 100x Objective |
| Dark Field Objective, Infinity Plan 100x(Oil) |
YR0231-op15 |
| Dark Field Objective, Infinity Plan 100x(Oil), With Iris Diaphragm |
YR0231-op16 |
| Phase Contrast |
Infinity Plan Turret Phase Contrast Set |
YR0231-op16 |
| –Infinity Plan Turret Phase Contrast Condenser |
| –Infinity Plan Phase Contrast Objective 4x,10x,40x,100x |
| –Centering Telescope 10x |
| –Green Filter |
| Infinity Achromatic Turret Phase Contrast Set |
YR0231-op17 |
| –Infinity Achromatic Turret Phase Contrast Condenser |
| –Infinity Achromatic Phase Contrast Objective 4x,10x,40x,100x |
| –Centering Telescope 10x |
| –Green Filter |
| Flourescent |
EPI-Fluorescent Kit, Upgrade to A16.1028 |
YR0231-op18 |
| –Power Supplier 220V/110V Interchangeable, Digital Display |
| –100WHBO Ultra Hi-Voltage Spherical Mercury Lamp |
| –Barrier To Resist Ultraviolet Light |
| –Fluorescence Free Oil |
| –Excitation Filter B/G |
| EPI-Fluorescent Kit, Upgrade to A16.1028 |
YR0231-op19 |
| –Power Supplier 220V/110V Interchangeable, Digital Display |
| –100WHBO Ultra Hi-Voltage Spherical Mercury Lamp |
| –Barrier To Resist Ultraviolet Light |
| –Fluorescence Free Oil |
| –Excitation Filter B/G/V/U |
| EPI LED Fluorescent Kit, Upgrade To A16.1029 |
YR0231-op20 |
| EPI Light 3W LED 465~475nm, B Excite Filter BP460~490, |
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 |
YR0231-op21 |
| Polarizing |
Polarizing Attachment , Polarizer, Analyzer, Intergrate Device |
YR0231-op22 |
