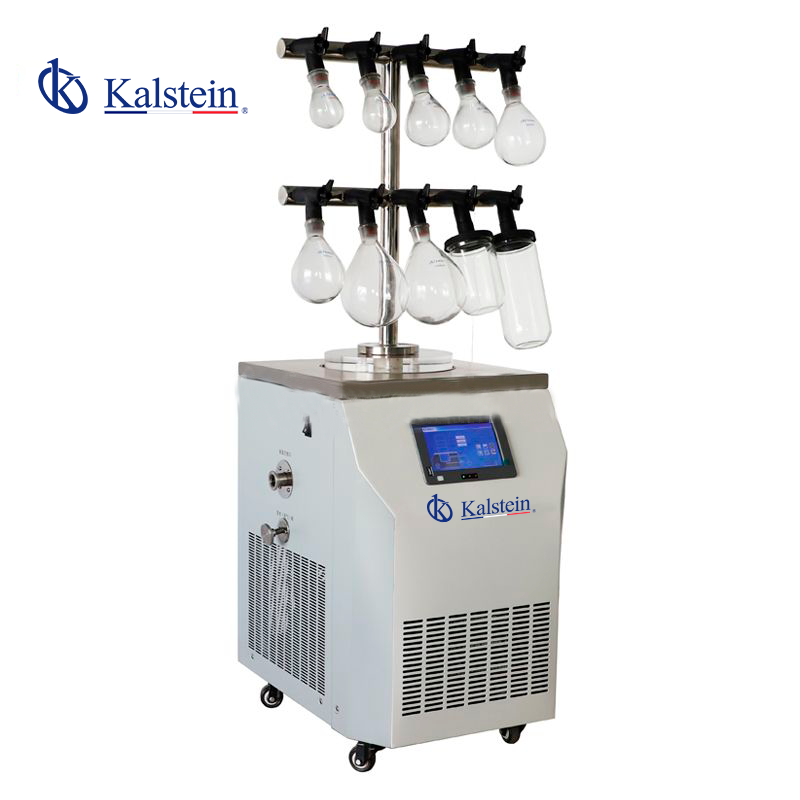

T Type Vertical Lab Freeze Dryer YR05193-1

Description

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production etc. After the freeze drying process,a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.The vacuum freezing drying techinology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture in the vacuum state.

Features

CFC Free refrigeration
LCD display drying curves, English interface
Opening of condenser, condenser with pre-freezing function
Low noise compressor, good efficiency,long service life
Condenser and operation panel are all stainless steel
Drying Chamber with organic glass is safe and visible
Shelf and tray are stainless steel, tray spacing can be customized
Small volume , easy and convenient operation
Nitrogen valve is optional
Eutectic point test device is optional
Communication interface is optional
Cascade refrigeration is optional , applied for -80℃ device

Technical Specifications

Model	YR05193-1
Condenser capacity	3 kg /24h
Condenser temperature	-55℃ (-80 ℃ optional )
Vacuum degree	< 10 Pa
Rubber sealed valve	24 pcs, for 24 ampule
Rubber sealed valve	special requirement customized
Cooling	Air，draughty, ambient temperature≤25℃
Vacuum pump flow rate	2 L/S, 7.2 m3/h
Voltage	220V ,50 Hz
Power	750 W
Host dimension	560×460×(720+440) mm
Host Weight	62 kg

Additional information

Weight	201 kg
Dimensions	120 × 69 × 77 cm
