Description

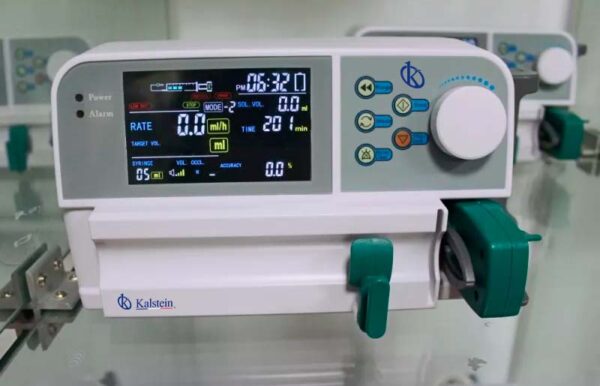

- 4.3 inches large LCD screen, with different colors show.
- With LCD backlight, can use in various lighting conditions.
- Time display, convenience for show and time memory.
- Simultaneous display: Time, Battery, Injection State, Mode, Speed, Injection volume and time, Syringe size, Alarm sound,Block,Accuracy, Body weight, Durg, Dose and Liquid amount.
- Remote control function, can adjust speed, time, volume and drug amonut directly, easier operation, save doctor and nurse’s time.
- Advanced technology, mainly based on Linux system, more safe and steady. All technical are designed by ourselves, further update is available.
- Multi injection modes: V mode, T mode, and body weight mode.
- Alarm: including all abnormal conditions alarm system, with visible, audible and details show on the screen.
Technical Description
| Model | YR05165 |
| Rate range | 50ml syringe: 0.1~1800ml/h (0.1~999.9ml/h step:0.1ml/h) 30ml syringe: 0.1~900ml/h (1000~1800ml/h step: 0.1ml/h) 20ml syringe: 0.1~600ml/h 10ml syringe: 0.1~300ml/h 5ml syringe: 0.1~150ml/h |
| Volume limit | 0.1~1999.9ml (step: 0.1ml) Accumulated volume 9999.9ml (step: 0.1ml) Accuracy Within ± 2% KVO Rate: 0.1~5ml/h (adjustable, step:0.1ml/h) |
| Fuse | F1AL/250V(“F” indicate fast, low breaking, capacity) 2 pcs (installed inside pump) |
| Power Supply | 110~220V, 50Hz, Built-in rechargeable battery, 11.1V, capacity≥2000mAh; After charging 10 hours, it can work at 5ml/h (GB9706.27 average rate) about 4 hours. |
| Purge Rate | 50ml syringe: 1800ml/h (Bolus rate: 1200ml/h) 30ml syringe: 900ml/h (Bolus rate: 600ml/h) 20ml syringe: 600ml/h (Bolus rate: 400ml/h) 10ml syringe: 300ml/h (Bolus rate: 200ml/h) 5ml syringe: 150ml/h (Bolus rate: 100ml/h) |
| Alarm | Liquid volume nearlu alarm, Liquid injection Finish Alarm, Doses injection finished alarm, occlusion alarm, syringe off alarm, syringe non-interlaced correctly alarm, low battery, low battery alarm. Power off alarms. Occlusion Threee levels for Occlusion: high, Middle, Low |
| Working surrounding | Temperature: +5~+40°C Humidiy: 20%~ 90% Storage surrounding Temperature: -30°C ~ +50°C Humidity: ≤ 95% |
| Atmosphere Pressure | 860hPa ~ 1060hPa Safe Class I type CF devices, Internal Battery, Intermittent Load continues working Size: 282mm(L) * 210mm(W) * 148mm(H) Weight: 2.2kgs |
| Accessories | Pump, Remote Controller, Power line, User manual, Guarantee card, Certificate |
