The

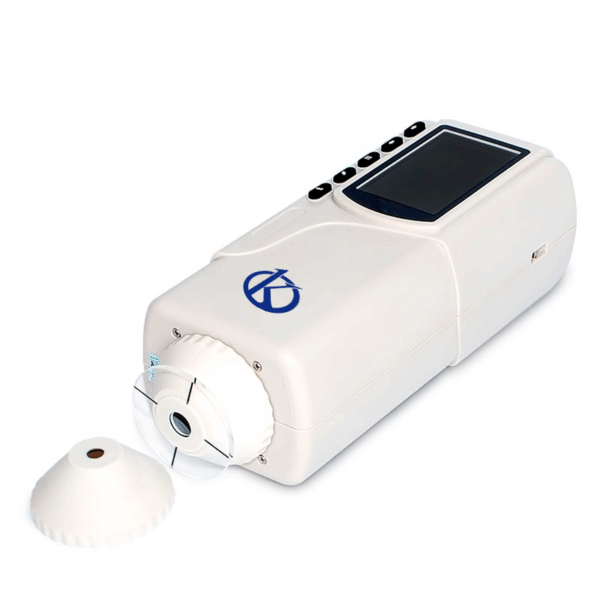

Precision Colorimeter YR05513 is an essential tool for professionals across various industries who require precise color measurement. This advanced device, designed by the Kalstein team, combines high precision with affordability, making it an optimal choice for sectors such as plastics, electronics, textiles, and food industries. Equipped with a dual aperture system (Φ8mm and Φ4mm tips), it accommodates diverse sample types for accurate color difference analysis using the CIE LAB color space model. It features built-in calibration settings, a rechargeable Li-ion battery, and a user-friendly handheld design, ensuring convenience and efficiency in color measurement tasks.
Market Price
The Precision Colorimeter YR05513 offers excellent value with its blend of technology and performance. While the actual price is $490 USD, the market range for similar high-precision colorimeters typically spans from $500 USD to $800 USD. This competitive pricing positions it as a cost-effective solution for industries that require consistent and accurate color analysis tools.
Frequently Asked Questions
Can the YR05513 be used with concave samples?
Yes, it is equipped with dual apertures that allow for easy measurement of concave samples as well as large flat surfaces.
What is the battery life of the YR05513?
The device includes a rechargeable lithium-ion battery, ensuring long durations of use without frequent recharges.
Advantages and Disadvantages
Advantages:
- High precision with built-in calibration settings.
- Ease of use due to its handheld design.
- Cost-efficient with dual apertures for versatile sample measurement.
- Rechargeable battery minimizing additional costs.
Disadvantages:
- Lacks PC software for advanced data analysis.
- May not suit all niche industry requirements without optional accessories.
Usage in the Field
In practical scenarios, the Precision Colorimeter YR05513 can be used in quality control processes within laboratories, factories, and research institutes. With its ability to quickly measure and display chromaticity values and ΔE for color differences, it helps ensure product consistency in manufacturing lines, especially so in textiles, garments, and printed materials.
Recommendations
To maximize the utility of the YR05513, it is recommended to regularly update calibration using built-in options. Users should also ensure the device is charged and stored within specified environmental conditions to maintain its longevity. Utilizing it with optional accessories like a micro printer can also enhance its functionality.
Features
- CIE LAB color space analysis.
- Repeatability of ΔE*ab 0.03 for precise measurement.
- Dual aperture design for versatile use.
- Rechargeable 3.7V lithium-ion battery for extended operation.
- Portable and ergonomic design for user convenience.
Technical Specifications
| Model |
YR05513 |
| Illuminating/Viewing Geometry |
8/d(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978. |
| Illumination |
LED white light |
| Detector |
Silicon photoelectric diode |
| Measuring Aperture |
Φ8mm flat aperture; Φ4mm tip aperture |
| Color Space |
CIE LAB |
| Color Difference Formula |
ΔE*ab |
| Observer Angle |
CIE 10° |
| Light Source |
D65 |
| Displayed Data |
Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time |
1.0s |
| Repeatability |
Standard deviation within ΔE*ab 0.03 (Average of 30 measurements of standard white plate) |
| Errors Between Each Equipment |
Within ΔE*ab 0.4 |
| (Average for 12 BCRA Series II color tiles) |
| Dimension |
205×67×80 mm |
| Weight |
500g |
| Power source |
Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life |
TFT 2.8 inch |
| Interface |
USB |
| Data Memory |
100pcs standards 10000pcs samples |
| Operating Environment |
0~40°C(32~104°F) |
| Storage Environment |
-20~50°C(-4~122°F) |
| PC Software |
No |
| Standard Accessory |
Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture. |
| Optional Accessory |
Micro Printer, powder test box |
| Notes: The specifications are subject to change without notice. |
