Description

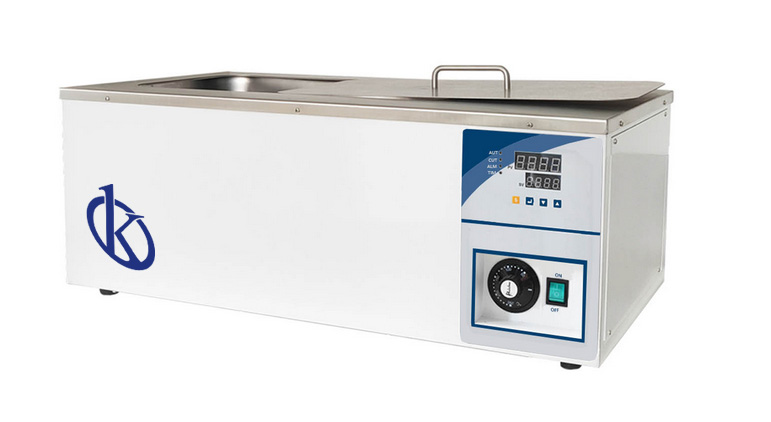

YR oil bath series is widely used in bioengineering, medicine, food, chemical industry, gold treatment, petroleum and other fields. To provide users with high-precision, controlled, temperature uniform constant place, is the Research Institute, colleges and universities, factory laboratory, inspection department, etc.
Features
- Microcomputer intelligent control system has the advantages of rapid remperature rise, stable temperature and easy operation
- Dual purpose water and oil: the maximum temperature can reach 250°C
- Led dual window digital display temperature measurement value and temperature setting value respectively, convenient to touch the key
- It is suitable for chemical reaction, biomedicine and other industries which need high temperature field
- Optional magnetic stirring device for high temperature reaction
| Model (Integrated chamber) | YR04973 | YR04974 | YR04975 | YR04976 |
| Controller | PID | |||
| Voltage | 220V / 50Hz 110V/60Hz | |||
| Power (W) | 1 000W | 1 200W | 1 600Ww | 2 000W |
| Temperature – Range (°C) | RT. +5~250°C | |||
| Temperature Resolution | 0.1 °C | |||
| Temperature Fluctuation | ≤±0.5°C | |||
| Division Accuracy | ≤±1°C | |||
| Timer | 999 minutes | |||
| Recycle Design | Optional | |||
| Magnetic | Optional | |||
| Safety | Over current protection, Over temperature alarm; Mechanical temperature limiter | |||
| Chamber Size (mm) | 300 x 240 x 150 | 300 x 240 x 200 | 500 x 290 x 150 | 500 x 290 x 200 |
| Product Size (mm) | 390 x 280 x 240 | 390 x 280 x 290 | 600 x 350 x 240 | 600 x 350 x 290 |
| Packing Size (mm) | 440 x 330 x 290 | 440 x 330 x 340 | 650 x 400 x 290 | 650 x 400 x 340 |
