Description

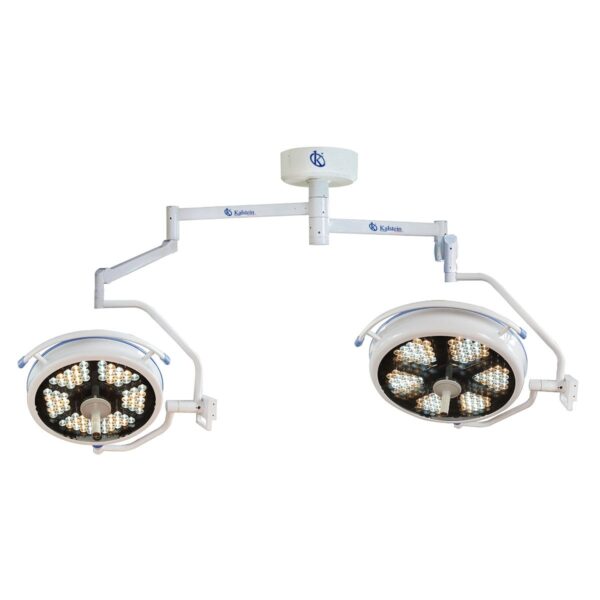

YR series shadowless operating lamp can widely be used in diversified operation occasion to meet the demand of the illumination, and it is the ideal illumination instrument of the modern operating theater.
The Whole reflection optical system is made by CAD/CAM technology, its illumination depth is up to 1300mm. By using color temperature compensation technology, the color reversion is upraised, and it is more suitable for the illumination of the complex surgery such as encephalon surgery and thorax surgery.
The panel is made of German PC (anti-bullet plastic) by injection moldings, makes the light softer and more reliable，Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stalely. 360 universal design can satisfy various needed height and angle in the operation. Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection.
Technical Specifications
| Model | YR06115 |
| Illuminance | ≥160,000Lux / ≥120,000Lux |
| Color temperature | 3800±500K, 4400±500K, 5000±500K |
| Color reduction index(Ra) | 95 |
| Illuminance depth | ≥1300mm |
| Total irradiance | 450W/m² / 390W/m² |
| Size of light field | 160~280mm |
| LED bulb | 3.3mW/m² lx |
| Service life of illuminant | 50,000h |
| Power supply voltage | AC 110-240V, 50/60Hz |
| Brightness adjustment | Automatic 8-stage continuous light adjustment |
| Lowest height of installation | 2900mm |
| Total power consumption | 140W |
| Total LED bulb quantity | 180 pcs |
