Description

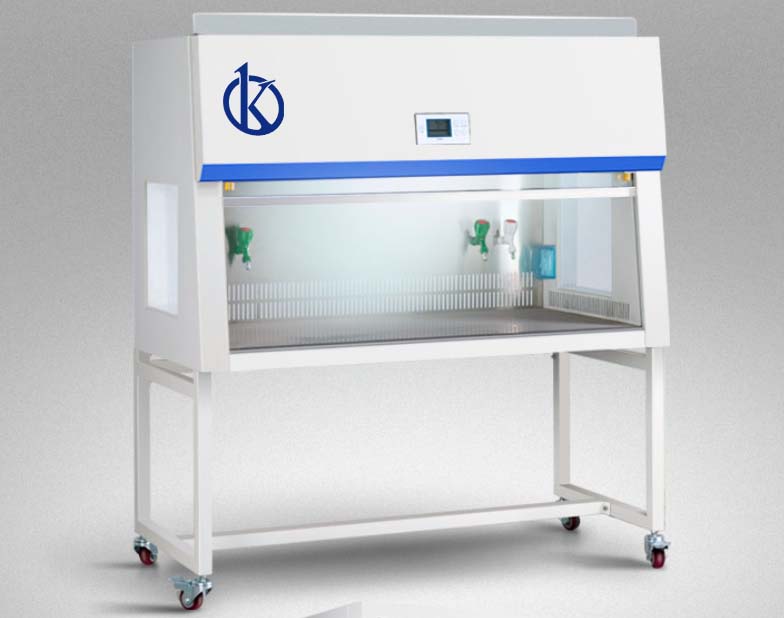

YR series (double people) laminar flow cabinet combined with perfect airflow mechanical design for the operator to create a partial purification work environment so that experiments can be carried out smoothly.
Applicable in the field of protection of biotechnology, pharmaceutical, life sciences and precision electronic products.
Product Introduction
- Integrated LCD dot matrix LCD display, real-time display the status of lighting, sterile, air flow and other parameters.
- User-friendly design, with sterilization, lighting, interlock functions to protect the operator from UV light burns and ensure safe operation.
- Wind speed multi-level adjustable, the air volume can be adjusted according to the user.
CLEANFLOW™ clean air technology
- Centrifugal wind wheel low-power motor, based on airflow mechanics principle, arc-shaped large-diameter inlet design to reduce turbulence generated to ensure low noise operation of the system.
- Reasonable duct design, optimized net press box, with micro-mesh design layer outflow wind deflector, convex, no dead ends, to ensure the uniformity and stability of the airflow.
- Standard early-efficient and efficient double-filter, primary filter to avoid airflow dust particles to enter and extend the life of high efficiency filter. High efficiency filter without clapboard HEPA, retention efficiency of 99.99%.
- According to the customer’s requirements, CLEANFLOWseries with the vertical flow and horizontal airflow
Technical Parameters
| Model | YR05267-1 |
| Cleanliness Rating | The international ISO 14644.1 standard, CLASS 5 (U.S. Federal 209E, 100 level) |
| Wind Speed | 0.3~0.6m/s(Adjustable) |
| Noise (dB) | ≤62 |
| Vibration half peak | ≤3μm（X、Y、Z direction） |
| High efficiency filter | Efficiency 99.99% |
| Illumination（LX） | ≥300 |
| Work nvironment | Ambient temperature 10~30℃, Relative humidity |
| below 70%, No obvious vibration and dust around | |
| Overall size (mm)(H×W×D) | 1585×1460×735 |
| Inner size (mm)(H×W×D) | 500×1300×550 |
| Voltage(V) | AC220V/50Hz |
| Power（W） | 400 |
| Net weight (KG) | 210 |
| Shipping weight(KG) | 235 |
| Packing size(mm) (H×W×D) | 1030×1650×855 |
