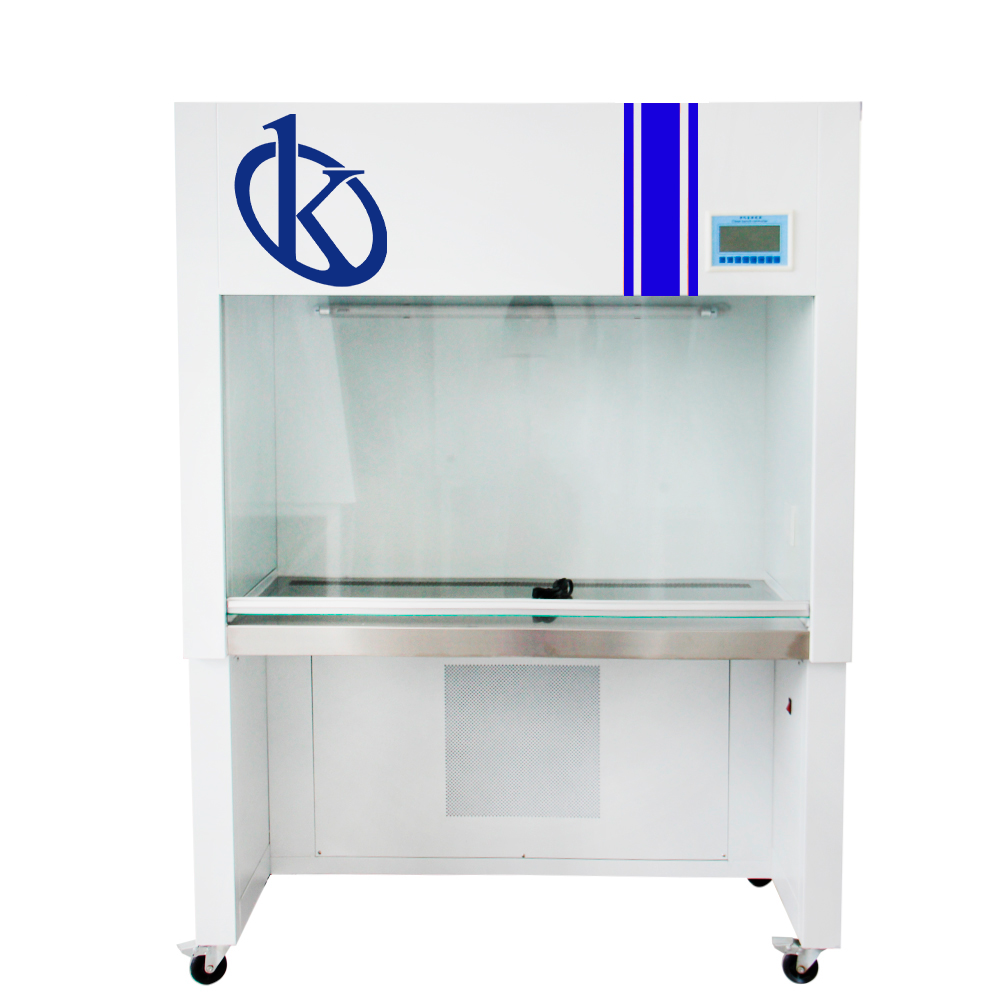

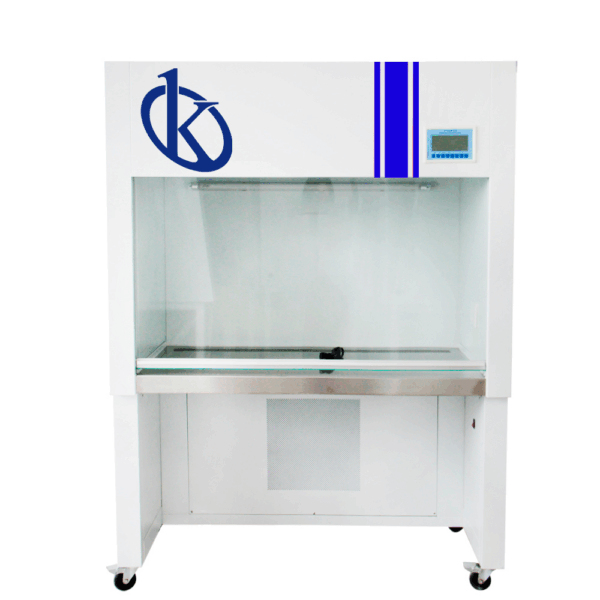

Description
This is a Kind of new type horizontal unidirectional clean bench widely used in electron, national defense, precise instrument and apparatus, pharmacy, chemical experiment and so on
Main Characteristics
- Adopting arbitrary positioning sliding door system
- The shell is welded by cold-rolled plates. the surface is electrostatically strayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean
- The lighting and sterilization systems are interlocked safely, and have the timing function of the ultraviolet lamp
- Digital display LCD control Interface, more user-friendly design
- Equipped with a HEPA filter and a primary filter for preliminary filtration, which can effectively extend the service life og the high-efficiency filter
Technical Specifications
| Model | YR05733 |
| Air Supply | Vertical Air Supply |
| Cleanliness level | Class 100@≥0.5μM (US Federal 209E) |
| Number of colonies | ≤0.5pcs/dish·hour (Φ90mm culture plate) |
| Average Wind Speed | 0.25～0.45m/s（Fast and slow） |
| Noise | ≤62dB（A） |
| Vibration half peak | ≤5μM（x、y、z direction） |
| Illuminance | ≥300Lx |
| Power Supply | AC single-phase 220V/50Hz |
| Max. Power
Consumption |
800 W |
| Working area
W1×D1×H1 |
1 1 40 x 580 x 700 |
| Overall dimension
W×D×H |
1 300 x 760 x 1 760 |
| Specification and quantity of high efficiency filter | 1125 x 540 x 50 x 1 |
| Specification and quantity of fluorescent lamp/ultraviolet lamp | 20W x 1 / 36W x 1 |
| Applicable Persons | Double person-single side |
