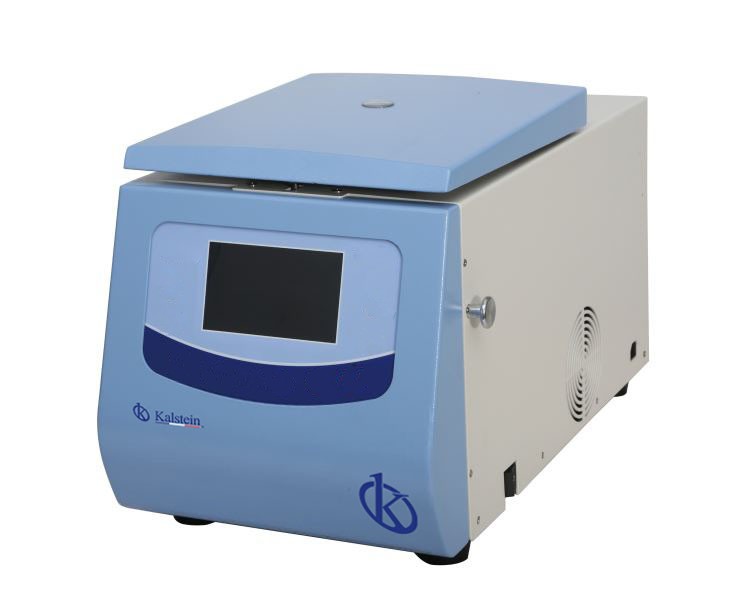

High-speed refrigerated microcentrifuge YR111-5

modelo

rotor

Clear

Description

The YR111-5 High-Speed Refrigerated Microcentrifuge offers advanced technology for precise, efficient sample processing in labs. With a top speed of 16,500 rpm and an RCF of 21,532 x g, it ensures reliable results in various applications. Its microcomputer control and LCD touchscreen simplify use, with all functions accessible through one interface. Equipped with a Tecumseh compressor and CFC-free R134a refrigerant, it maintains adjustable temperatures from -20 °C to +40 °C to protect sensitive samples.

The YR111-5 enhances workflows in research labs and clinics. It features automatic rotor recognition and nine acceleration and deceleration levels for secure, controlled operation. Advanced safety systems—including electronic locking, overspeed and overtemperature protections, and an automatic alarm—provide extra reliability. With a 36-tube capacity for 1.5 ml or 2.2 ml samples, this microcentrifuge is compact and high-performing.

Market Price

Available between $ 3270 and $ 3300 USD, the YR111-5 Microcentrifuge combines quality, durability, and cost-effectiveness, making it a valuable investment for labs.

Frequently Asked Questions

Is it easy for non-technical users to operate?
Yes, its touchscreen and intuitive controls make it accessible for all users.
Does it allow temperature adjustment?
Yes, the centrifuge supports temperature control between -20 °C and +40 °C, ideal for sensitive samples.

Advantages and Disadvantages

Key benefits of the YR111-5 include its precise speed and temperature control and robust safety features for user security. Programmable memory for up to ten settings further streamlines lab workflows. However, its capacity of 1.5/2.2 ml x 36 may be limited for labs needing to process larger volumes.

Field Use

Common in biomedical, genetic, and biochemical labs, the YR111-5 excels at handling small samples while maintaining ideal conditions for biomolecules and sensitive materials.

Regular maintenance of the cooling and safety systems helps maximize performance and extend the device’s life. For further information or to purchase the YR111-5 High-Speed Refrigerated Microcentrifuge, request a quote or generate one via our Kalstein Plus platform. This advanced centrifuge offers the precision and efficiency essential for modern lab research.

Technical Specifications

Model	YR111-5
Maximum speed	16,500r/min
RCF Max	21,532 xg
Maximum capacity	1.5ml /2.2ml x 36
Speed Accuracy	±30r/min
Time Settings	1min ~ 99h 59min
Temperature setting	-20 ~ +40°C
Temperature Accuracy	±1°C
Compressor Unit	French R134a Tecumseh Compressor Unit
Noise	<65dB(A)
Power supply	AC110V/60Hz AC220V/50Hz
Dimension (W×D×H)	280 x 540 x 300 (mm)
Packing Size (L x W x H)	4800 x 670 x 585 (mm)
Net weight	30kg

Additional information

modelo	(YR111-5) Pantalla LCD
rotor	(YR111-5-1) Rotor de Ángulo – Velocidad Máxima R / MIN 16500 – RCF Máx 18360 – Capacidad (ml) 1.5ml/2.2ml×12, (YR111-5-2) Rotor de Ángulo – Velocidad Máxima R / MIN 12000 – RCF Máx 10142 – Capacidad (ml) 5ml×12, (YR111-5-3) Rotor de Ángulo – Velocidad Máxima R / MIN 15000 – RCF Máx 21532 – Capacidad (ml) 1.5ml/2.2ml×24, (YR111-5-4) Rotor de Ángulo – Velocidad Máxima R / MIN 12000 – RCF Máx 13813 – Capacidad (ml) 1.5ml/2.2ml×36, (YR111-5-5) Rotor de Ángulo – Velocidad Máxima R / MIN 12000 – RCF Máx 10920 – Capacidad (ml) 0.5ml×48, (YR111-5-6) Rotor de Ángulo – Velocidad Máxima R / MIN 15000 – RCF Máx 13800 – Capacidad (ml) 3×8×0.2mlPCR, (YR111-5-7) Rotor de Ángulo – Velocidad Máxima R / MIN 16000 – RCF Máx 15300 – Capacidad (ml) 0.5ml×18
