Description

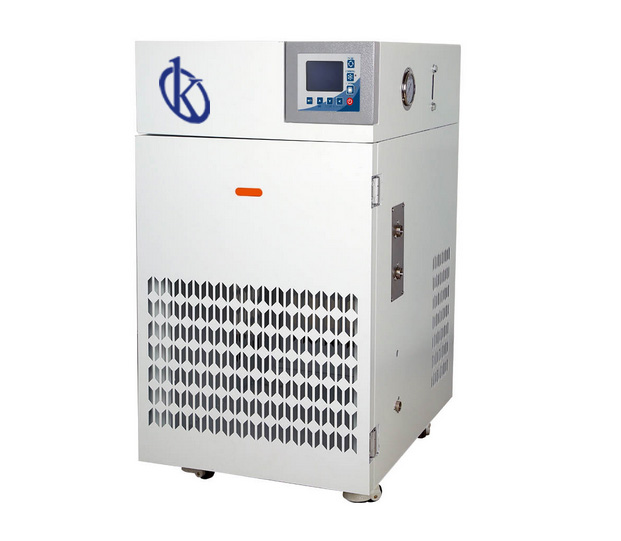

YR series cooling and heating circulating pump is the most widely used circulationg pump for chemical reactors.
Features
- It contains refrigerating system, heating system, pre-cooling system, three systems can be used continuously and also can be used separately
- Fast heating and cooling and temperature can be increased and lowered continuously
- Wide temperature control range, no need of changing heat-conducting medium in the whole course and little consumtion of heat-conducting medium
- Complete closed circulating system, the heat transfer fluid is not easy to volatilize and oxidize at high temperature, or not easy to absorb moisture under low temperature, which can prolong the service life of heat transfer fluid
- High temperature cooling and refrigeration function, can lower from high temperature level directly
- Refrigeration heat exchanger adopts complete brazing type, small space and high-efficiency heat exchanging
| Model | YR05001 | YR05002 | YR05003 | YR05004 |
| For Glass Reactor | 2 – 10L | 10 – 20L | 30L | 30 – 50L |
| Circulation Type | -35 – 200°C closed circulation | |||
| Temperature Resolution | 0.1°C | |||
| Cooling Power | 1900 – 1000W | 3720 – 980W | 47400-1140W | 10280-2560 |
| Heating Power | 3000W | 6000W | ||
| Flow Path | 18 l/min | 35 l/min | ||
| Control Method | Micromputer digital control | |||
| Safety Protection | Delay, leakage, over current, overheating protection | |||
| Circulating Pump | Closed leak-free special Pump | |||
| Total Power | 3300 | 3700 | 8400 | 9000 |
| Voltage | 380V / 50Hz | |||
| Dimensions | 630 x 550 x 1060 | |||
| Weight (Kg) | 62 | 120 | 165 | |
