Description

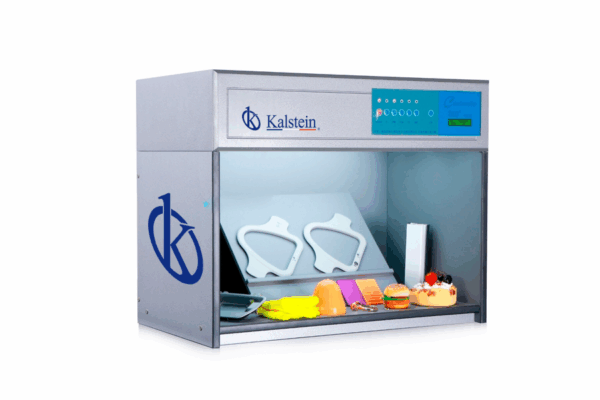

YR05524 // YR05526 color light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching box instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
YR05524 // YR05526 color light box can accommodate up to 4 light sources. The consistency of the light sources in all Tilo Color Matching Cabinet gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.
Color Light Box Features
- TILO Color light box render color more accurately. With 4 different light sources(D65, TL84, F, UV), which can detect the metamerism.
- Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
- Easy to operate by using individual switches for each light source.
- Elapsed time meter for tracking optimal lamp replacement.
- Automatically alternating among light sources.
- No warm-up time or flickering which insures quick and reliable color judgment.
- Economic power consumption and low heat generation for high light efficiency.
- The dimension can be made by customized.
Technical Specification
| Model | YR05524 | YR05525 | YR05526 | YR05527 | YR05528 | YR05529 | |
| Light source | D65, TL84, UV, F | D65, TL84, UV, F, CWF | D65, TL84, UV, F, CWF, TL83 | D65, TL84, UV, F | D65, TL84, UV, A, CWF, TL83 | D65, TL84, UV, F, CWF, TL83 | |
| Dimensions(W*D*H) | 710x405x570 mm | 710x405x570 mm | 710x530x570 mm | 710x405x570 mm | 710x530x570 mm | 1310x600x800 mm | |
| Inner Size(W*D*H) | 680x385x
355 mm |
680x385x
355 mm |
680x515x355 mm | 680x385x
355 mm |
680x515x
355 mm |
1280x590x
590 mm |
|
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V | |
| Weight | 28 kg | 30 kg | 35 kg | 28 kg | 35 kg | 60kg | |
| Light sources Configuration: | D65 | 2 PCS | 2 PCS | 2 PCS | 2 pcs | 2 pcs | 2 PCS |
| TL84 | 2 PCS | 2 PCS | 2 PCS | 2 pcs | 1 pcs | 2 PCS | |
| F | 4 PCS | 4 PCS | 4 PCS | 4 pcs | 4 pcs | 6 PCS | |
| UV | 1 PCS | 1 PCS | 1 PCS | 1 pcs | 1 pcs | 1 PCS | |
| CWF | NO | 2 PCS | 2 PCS | NO | 1 pcs | 2 PCS | |
| TL83 | NO | NO | 2 PCS | NO | NO | 2 PCS | |
| Light sources Specification | |||||||
| Light Source | Color Light Box Application | Color temperature(k) | |||||
| D65 | International standard
Artificial Daylight |
6500 | |||||
| TL84 | Applied to stores in Europe,
Japan and China |
4000 | |||||
| CWF | (Cool White Fluorescent)
American Standard |
4150 | |||||
| F | “Sun-setting Light Yellow”
incandescent light source(imitation of sunset) |
2700 | |||||
| UV | Viewing under ultraviolet light to
detect and evaluate optical brighteners or fluorescent pigments |
Wavelength:365nm | |||||
| TL83 | Applied to stores in
Europe |
3000 | |||||
