Description

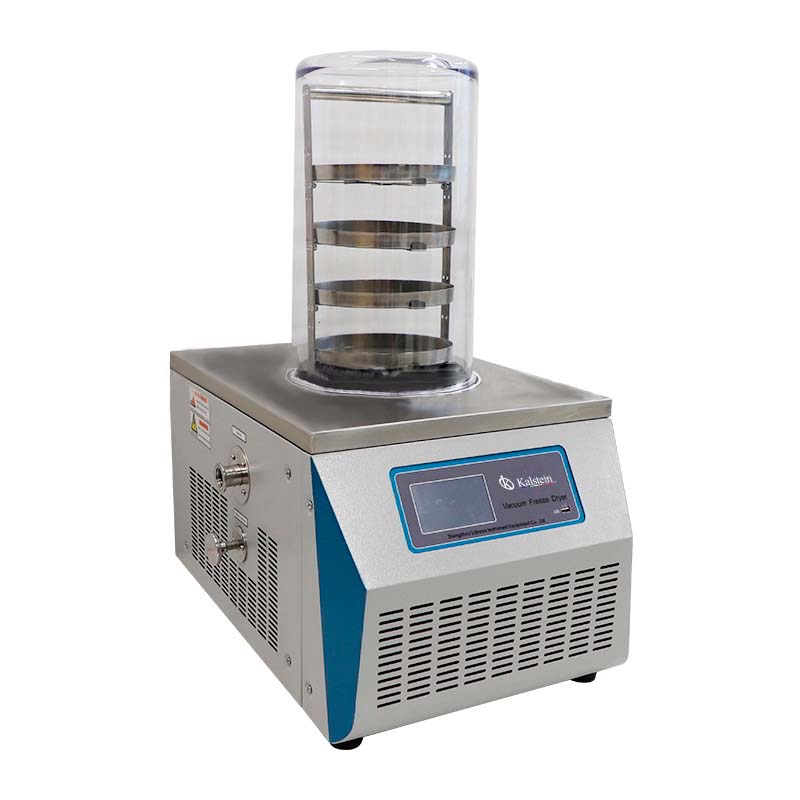

Advantages Of YR Laboratory Freeze Dryer Series
- Plexiglass material bell jar, clear to observe drying effect. With 4 stainless steel trays.
- LCD touch screen, can display temperature and vacuum degree, with drying curve.With USB interface, can download history data.
- Cold trap for prefreezing, withframes for prefreezing, no need to buy freezer again.
- Vacuum pump included, high pumping speed.
Fearures
- CFC Free refrigeration
- LCD display drying curves, English interface
- Big opening of condenser, condenser with pre-freezing function
- Low noise compressor, good efficiency,long service life
- Condenser and operation panel are all stainless steel
- Drying Chamber with organic glass is safe and visible
- Shelf and tray are stainless steel, tray spacing can be customized
- Small volume , easy and convenient operation
- Nitrogen valve is optional
- Eutectic point test device is optional
- Communication interface is optional
- Cascade refrigeration is optional , applied for -80℃ device
Technical Description
| Model | YR05186 |
| Freeze drying area | 0.12㎡ |
| Condenser capacity | 3-4 L /24h |
| Condenser temperature | -55℃ (-80 ℃ optional) |
| Vacuum degree | < 10 Pa |
| Material tray | Ф200mm , 4 layers |
| Bulk capacity | 1.2L, 10mm thickness |
| Vial capacity Φ12mm | 920 pcs |
| Vial capacity Φ16mm | 480 pcs |
| Vial capacity Φ22mm | 260 pcs |
| Manifold | with 8 ports |
| Flask | 1000ml,500ml ,250ml ,100ml |
| Cooling | Air，draughty , ambient temperature≤25℃ |
| Voltage | 220V ,50 Hz; 110V, 50Hz; 110V, 60Hz |
| Power | 700W |
| Dimension | 460×625×(370+465) mm |
| Host weight | 41 kg |
