Description
- 10.4 inch true color TFT LCD & touch screen, more visible
- Minimize the number of interface layers, pop-up soft keyboard, easy to operate
- Internationalization support
- Possible choice of parameter units. Several languages available, can switch language online
- Pre-defined for 13 animals plus an addition 3 user-defined animals, satisfy the requirements of most veterinary clinics
Technical Specifications

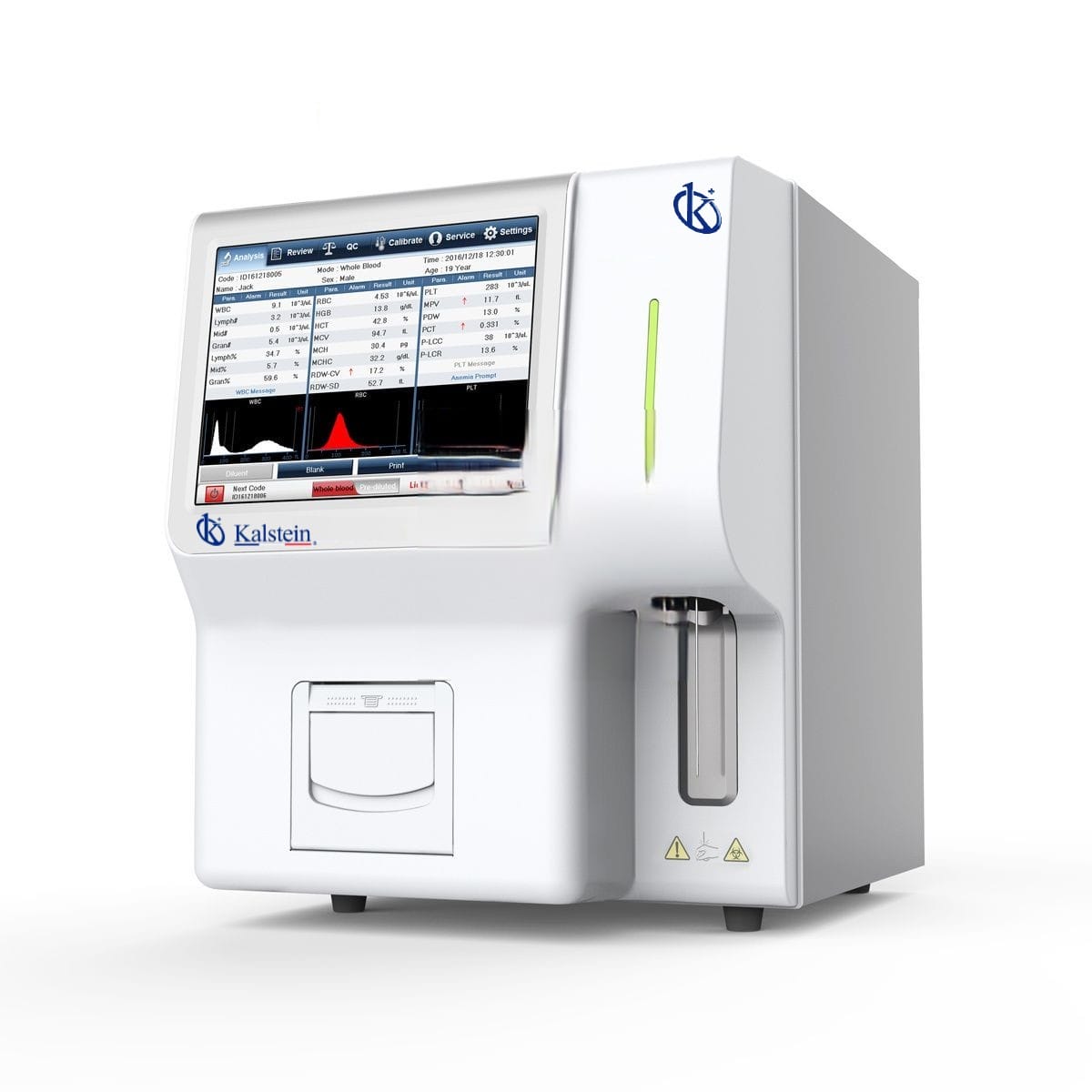

| Model | YR06170 |
| Category | Hematology Analyzer |
|
Measurement Principles
|
Impedance method for cell counting |
| Cyanide-free colorimetric method for HGB measurement | |
| Measurement Channels | Double-channel for counting |
| Performance | From the start of a test to the end of printing: ≤60 Seconds |
| Counting Modes | Whole blood, pre-diluted blood |
|
Sample Volume
|
Whole blood: ≤14µL |
| Pre-diluted blood: ≤20µL | |
| Power | 220V, 50Hz Input power: ≤150VA |
| Dimensions | 368mm x 448mm x 475mm |
|
Operating Environment
|
Ambient Temperature: 10 ℃~30℃ |
| Relative Humidity: ≤70% | |
| Atmospheric pressure: 70.0kPa~106.0kPa |
