Laboratory sector
    SKU: 79527

    Import placeholder for 79527

    Manufacturer: Kalstein

    Select the product options to enable quoting.

    1
    Certified warranty
    International shipping
    CE Certification
    Technical support

    Description

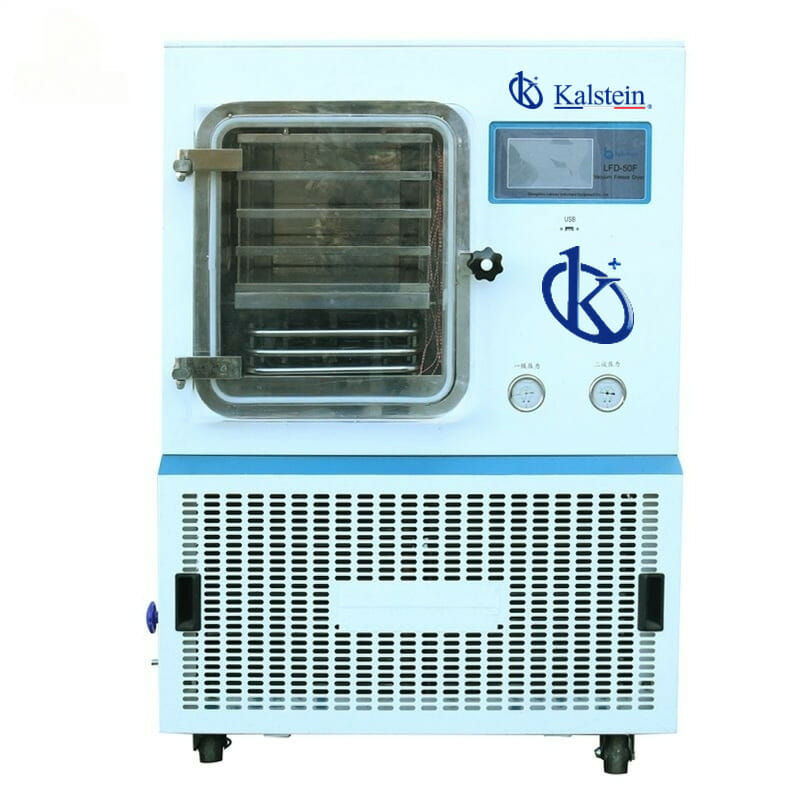

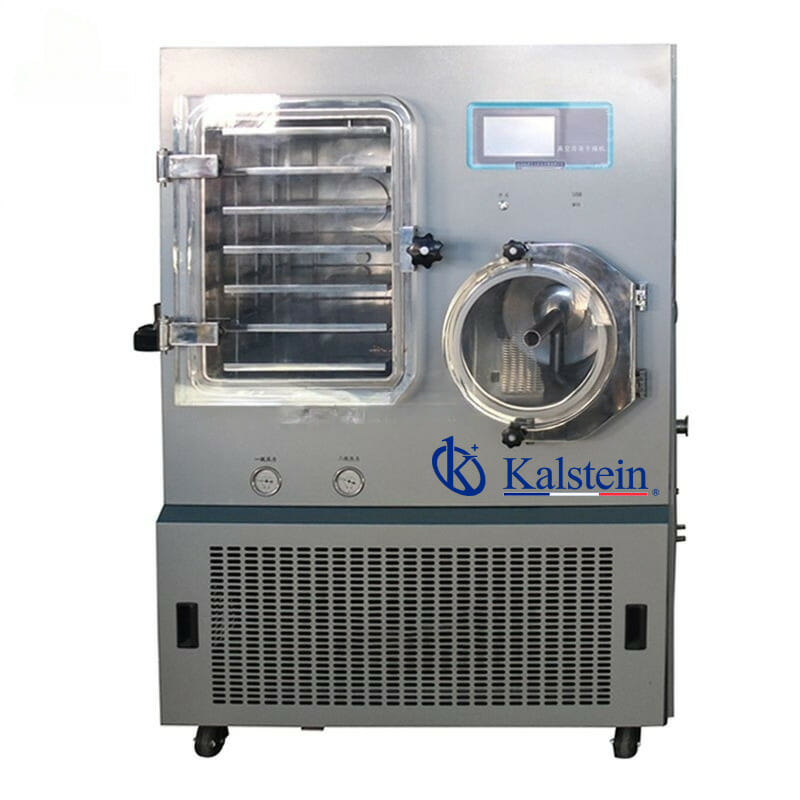

    The Import placeholder for 79527 is a state-of-the-art vacuum freeze dryer widely used in medicine, pharmaceuticals, biological research, chemical, and food industries. This innovative equipment is designed to preserve products by removing moisture at low temperatures, thus retaining the original biochemical characteristics. With silicone oil heating and programmable functions, this patented model allows users to efficiently monitor and control the freeze-drying process, ensuring high-quality results every time.

    Market Price

    The market price for vacuum freeze dryers can vary significantly depending on their capacity and features. Typically, these models range from $10,000 to $50,000. The Import placeholder for 79527 falls within the higher end of this spectrum due to its advanced technology and capabilities, offering excellent value for money in professional settings.

    Frequently Asked Questions

    What is the capacity of the freeze-drying area?

    The YR05985-1 comes with a 0.7m² drying area, while the YR05985-2 offers a 1.04m² area.

    Can it handle continuous use?

    Yes, this model is designed for durability and efficiency, making it suitable for continuous professional use.

    Advantages and Disadvantages

    One of the main advantages of the Import placeholder for 79527 is its advanced drying technology, which ensures uniform ice trapping and minimizes cross-contamination. The programmable settings and silicone oil heating make the unit highly efficient and user-friendly. However, the complexity of its functions may require specialized training for optimal operation.

    Product Use in the Field

    In practical scenarios, the Import placeholder for 79527 is ideal for use in research laboratories, pharmaceutical production, and food preservation, where precise control over the drying process is crucial. Its ability to handle inert gas and maintain product integrity makes it a preferred choice among professionals.

    Recommendations

    To maximize the lifespan and performance of your Import placeholder for 79527, regular maintenance and calibration are recommended. Ensure that the machine is operated in a clean environment to avoid any potential contamination.

    Features

    • Vacuum in-situ freeze-drying for square storage, ensuring ease of use and high drying efficiency.
    • Acrylic drying chamber door for transparent observation of the process.
    • Specialized gas guidance technology for uniform ice trapping.
    • International brand compressors ensuring high efficiency and low noise levels.
    • Advanced temperature control technology for uniform drying.

    Technical Specifications

    Model YR05985-1 YR05985-2
    Freeze-drying area 0.7m² 1.04m²
    Material plate size 475 × 355mm 475 × 355mm
    Number of material trays 4 6
    Shelf size 480 × 360 mm 480 × 360 mm
    Number of shelves 4+1 floors 6+1 floor
    Shelf spacing 50 mm 70 mm
    Shelf temperature range -55 °C ~ +70 °C -55 °C ~ +70 °C
    Shelf temperature difference ±1 °C (balanced) ±1 °C (balanced)
    Cold trap temperature ≤ -75 °C (no load) ≤ -75 °C (no load)
    Water catching capacity ≥10KG/24h ≥15KG/24h
    Pumping rate 8L/S 15L/S
    Ultimate vacuum ≤5pa (no load) ≤5pa (no load)
    Installed power 5500w 6500w
    Host weight 600 kg 700 kg
    Mainframe dimensions 1000×785×1420mm 1170×830×1665mm
    Cooling method air cooling air cooling
    Plate loading material 7L (material thickness 10mm) 10L (material thickness 10mm)
