Description
It can be used when deep anesthesia, and animal completely rely on the ventilator to maintain breathing. Just set the animal weight,other parameter are calculated automatically.
Used when the animal’s lungs cannot withstand too high pressure,the ventilator delivers gas to the animal according to a preset pressure.
Features
- SPONT(V/S,Apena): This mode can avoid breathing confrontation, and it can generally be used during animal recovery , or when the animal is lightly anesthetized and has spontaneous breathing.
- MANUAL: In this mode, the ventilator not control and help animal breath, but only monitors the animal’s breathing state through sensors and monitors breathing parameters.
Technical Specifications

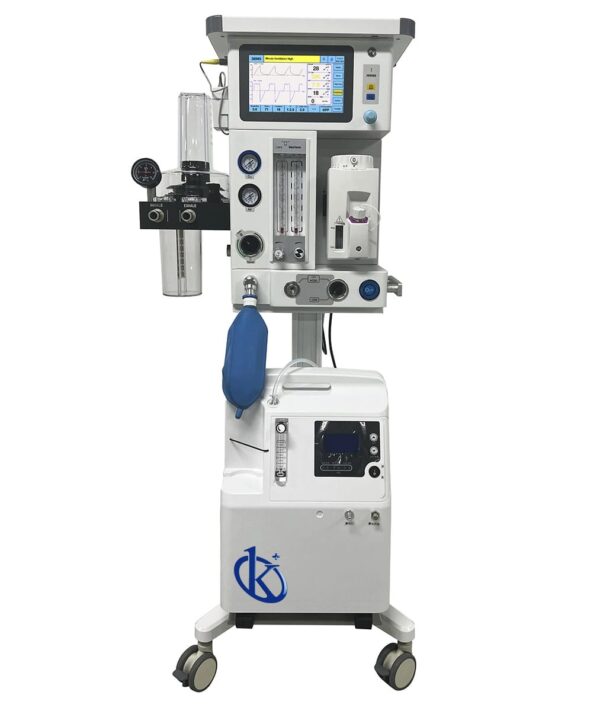

| Model | YR06101 |
| Main Unit | High quality aluminum trolley |
| Application range | Animal weight 0.8-120kg |
| CO2 absorber | Integrated design of animal-specific integrated bellows and absorber Dedicated fresh gas connection to non-breathing circuit Visible inspiration and expiration valve design to observe the breathing state easy. |
| Flowmeter | Animal-specific oxygen 2 tube Flow:0~1&1-10L/min O2 and Air O2 flow: 0-10L/min Air flow : 0-10L/min |
| Ventilator Drive mode | Turbine and electronic control |
| Ventilation mode | VCV,PCV,SPONT(APENA),MANUAL |
| Waveform | pressure, flow, volume, end expiratory |
| Breathing rate | 1~100bpm |
| Pressure support | 0~60 cmH20 |
| Pressure control | 5~60 cmH20 |
| Flow rate trigger | 0.5~20L/min |
| Pressure trigger | -1~-20 cmH20 |
| PSV inspiratory terminal level | 25% |
