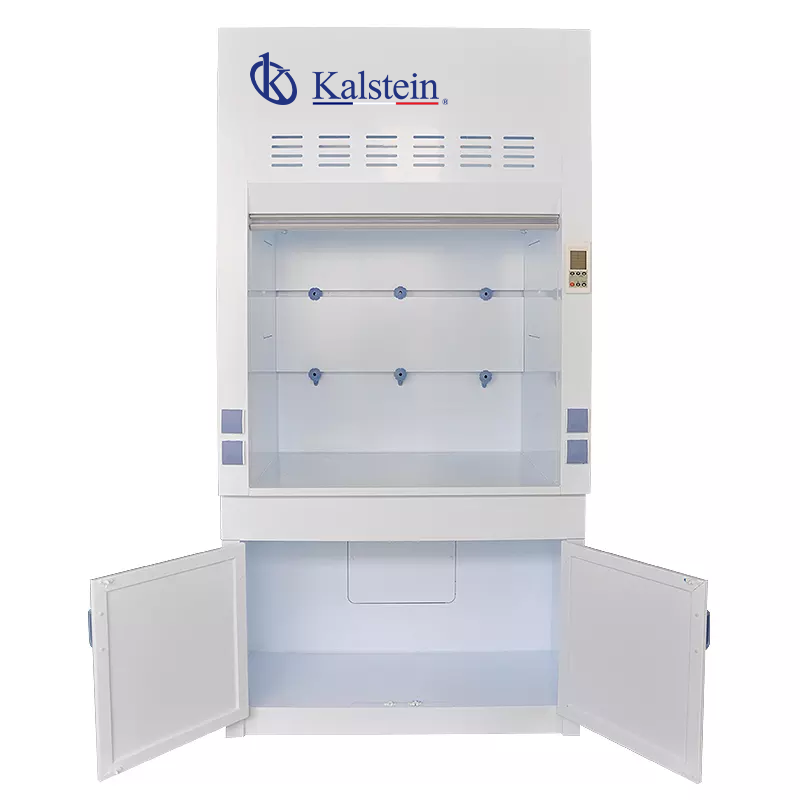

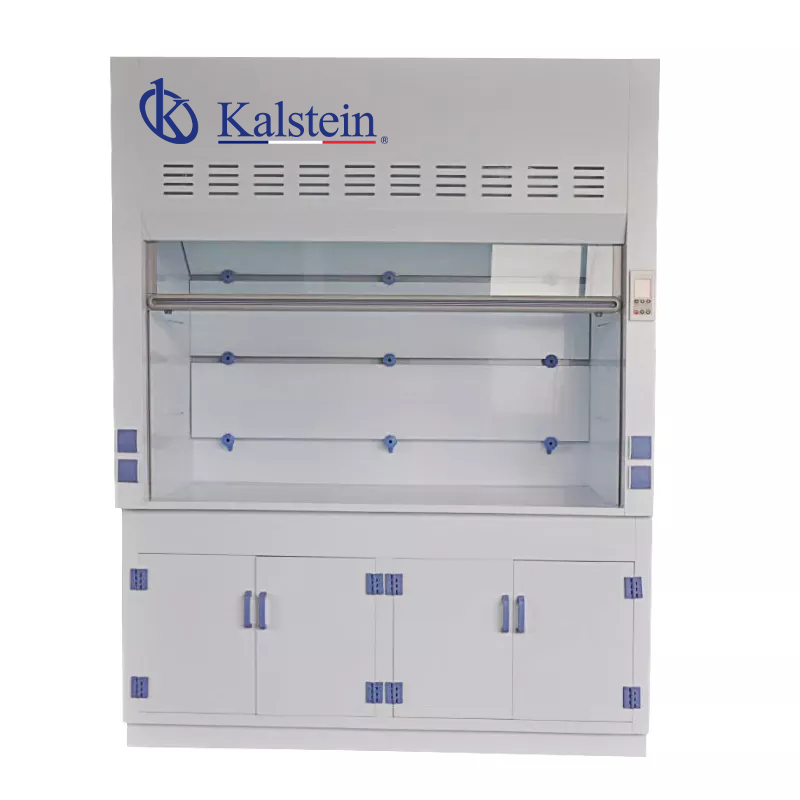

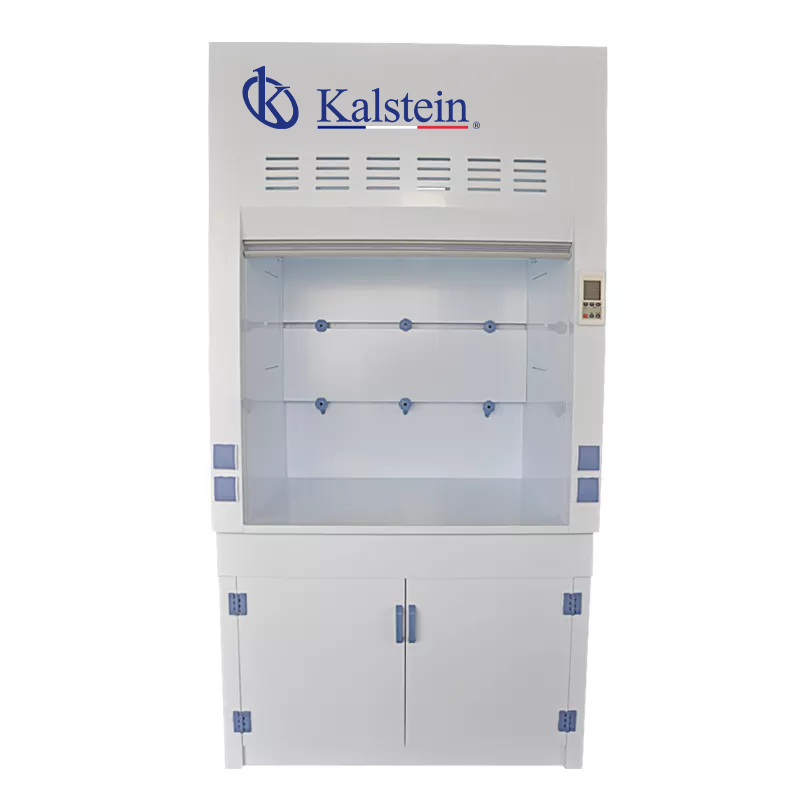

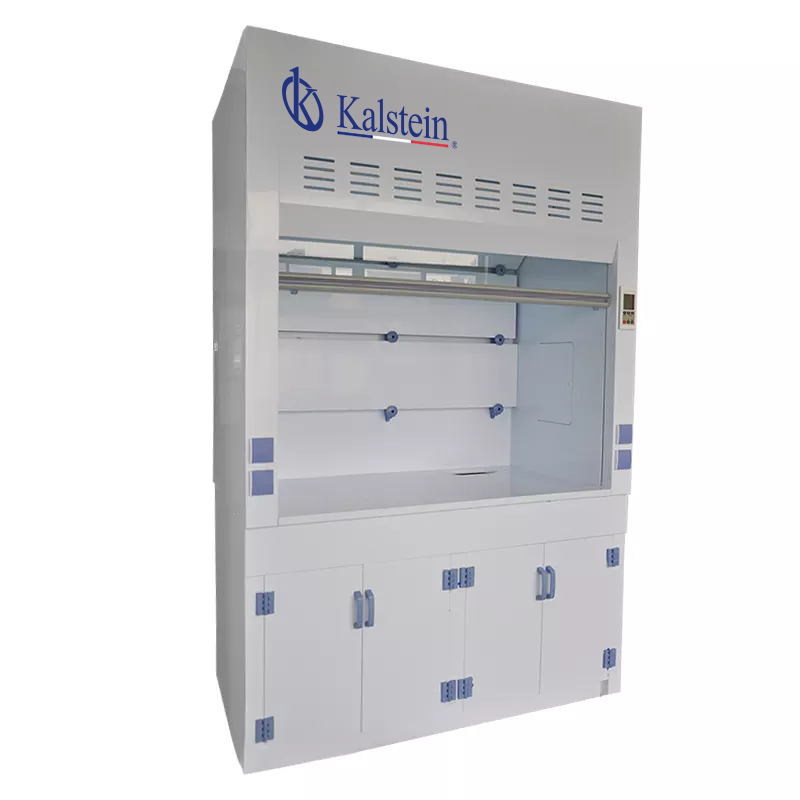

Ventilation de laboratoire nettoyage système d’extraction des fumées équipement de hotte hotte d’évacuation YR05826 // YR05828

Fabricant: Kalstein

Description

The hotte aspirante YR05826 // YR05828 offers an advanced solution for laboratory ventilation and cleaning, expertly designed to efficiently remove harmful fumes and particles. With an integrated axial fan and a 250 mm exhaust duct, it ensures optimal air flow, maintaining a safe environment. Constructed with 8.0 mm polypropylene (PP) sheets, it provides excellent resistance to acid and alkali corrosion. The internal cover and workbench, also made of durable PP, facilitate cleaning and enhance longevity. Its tempered glass sliding window combined with an LCD control panel ensures easy, safe operation, protecting users from exposure to hazardous substances.

Market Price

The price of the hotte aspirante YR05826 // YR05828 typically ranges between 3050 and 3850 dollars, influenced by the model and specific features required by the client. This pricing reflects the high-quality materials and advanced technology incorporated into the product. Investing in this advanced fume hood is a strategic decision for any laboratory needing to adhere to strict safety and operational efficiency standards.

Frequently Asked Questions

  • Is the YR05826 // YR05828 fume hood easy to use? Yes, designed with user-friendliness in mind, the hood features an intuitive LCD control panel to easily manage air flow and operational controls.
  • What kind of protection does this fume hood provide? It offers comprehensive protection against toxic fumes and vapors, ensuring a secure working environment through its exhaust system and corrosion-resistant materials.
  • What are the key technical specifications of this product? The hood features an air speed of 0.4 to 0.6 m/s, a noise level below 60 dB, and a 5 mm thick tempered glass window, ensuring safety and efficiency during use.

Advantages and Disadvantages

The YR05826 // YR05828 fume hood boasts several key advantages, including robust and durable construction, low noise levels, and adjustable extraction speeds to accommodate various chemical substances. Its tempered glass window provides additional protection for operators. However, a potential disadvantage might be its relatively high price compared to other fume hoods, which could challenge laboratories operating on tighter budgets.

Field Use

This equipment is perfect for research laboratories, chemical and pharmaceutical industries, as well as educational institutions. It is primarily used to maintain a safe working environment by efficiently extracting toxic fumes and hazardous gases. Its compact and ergonomic design makes it suitable for confined workspaces, and easy maintenance ensures reliable operation over prolonged use periods.

Recommendations

For optimal performance of the YR05826 // YR05828 fume hood, regular maintenance is recommended. This includes cleaning the exhaust system, inspecting the fan, and checking the windows. Moreover, it is crucial to operate the hood within established parameters, such as air flow speed, to ensure optimal functionality and extend its service life.

Don’t wait any longer to enhance your laboratory’s safety and efficiency. Request a quote today via Kalstein Plus and discover how the YR05826 // YR05828 fume hood can be the perfect solution for your needs, consistently providing a secure and controlled work environment.

Features

  • Sturdy construction with corrosion-resistant polypropylene (PP)
  • Integrated axial fan and 250 mm exhaust duct for optimal air flow
  • Intuitive LCD control panel for easy operation
  • Low noise operation at ≤60dB
  • Tempered glass sliding window for additional safety
  • Adjustable air extraction speeds for various chemical substances

Technical Specifications

Model YR05826 YR05827 YR05828
Remarks

The above size is our standard product.

Dimensions can be customized according to the client’s request.

Integrated axial fan and 250 mm exhaust duct included.

Housing Made with 8.0 mm polypropylene PP sheet welding, showing strong acid and alkali corrosion resistance.
Inner Cover New production of 8.0 mm PP sheet welding, with strong acid and alkali corrosion resistance. The side plate can be fixed with a water tap, gas tap, and the back plate can be fixed with a baffle, ceiling light, and gas hood device.
Worktop 8.0 mm polypropylene PP countertop, splash-proof, with good sealing performance, acid and alkali resistance.
Baffle 8.0 mm PP board, acid and alkali resistant. Installed at the back and above the workspace, forming a gas chamber, completely exhausting polluted gases, and is detachable.
Gas Hood Made of PP with high corrosion resistance, rectangular opening at the bottom, circular opening at the top.
Fluorescent Lamp One piece of 30W light (waterproof, anti-corrosion, rustproof)
Sliding Window Vertical sliding door, placed between workspace and operator, ensuring operator safety. Features a vision clear tempered glass window and balanced positioning.
Window Uses 5 mm thick tempered glass.
Window Frame Aluminum alloy door frame, ensuring window safety and durability.
Window Suspension Cable Plastic suspension wire, low noise, fast traction speed, strong balance characteristic.
Control Switch LCD control panel with power, switches, lighting, fan, operation indicators, clearly displaying hood operation.
Power Socket Equipped with four 220V universal sockets. (Other types of sockets can be optional as per client needs)
Base Cabinet 8.0 mm PP panel, strong, firm, and not easiliy deformed, with elegant appearance.
Door Handle Laboratory-quality PP handle, high corrosion resistance.
Hinge Laboratory PP hinge, high corrosion resistance.
Water Sink PP cup, high-density PP with filtration and odor prevention function, high density PP trap (optional)
Water Tap Wall-mounted remote control water valve, thick copper main body, epoxy resin high gloss coating, corrosion and heat resistance; ceramic valve core, 90° rotation, 500,000 life span, max static pressure resistance 20 bar; high-density PP switch button, ergonomic.
Gas Valve Wall-mounted remote control gas valve, thick copper main body, high gloss epoxy resin coating, corrosion and heat resistance, ergonomic design. (Optional)
Optional Gadgets
Air Speed/Air Exhaust Volume Requirements 0.4 m/s~0.6 m/s
Noise ≤60dB
Fan Energy-saving PP centrifugal fan, three-phase 380V motor, high-strength, lightweight, low noise, excellent corrosion resistance. (Fan, duct etc., not included in kitchen hood price)
Dimensions

(L x W x H)

(mm)

1200x850x2350 1500x850x2350 1800x850x2350
Weight (kg) 220 280 350
