Spectrocolorimètre YR05518 – YR05519

Fabricant:   Kalstein

Description

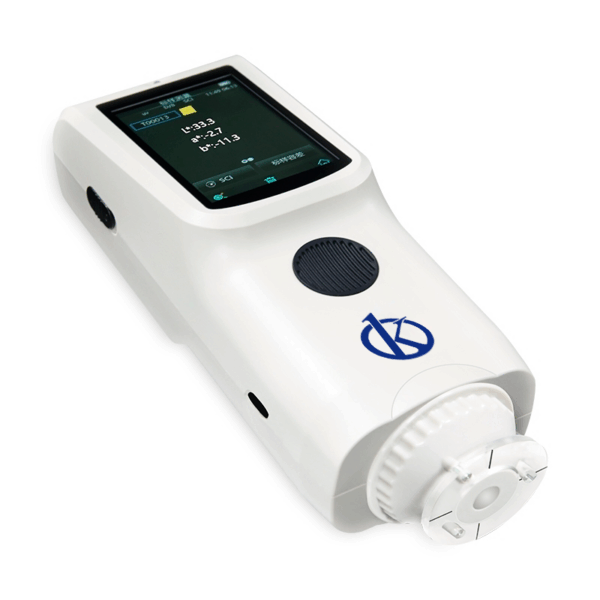

The Spectrocolorimeter YR05518 – YR05519 is a top-tier portable light color difference instrument developed by Kalstein, employing advanced autonomous technology. This device offers precision in color measurement with the capability to ensure accurate ΔE values while maintaining long-term L, A, and B value accuracy. Equipped with built-in silicon photodiode array sensors (dual-row 24), it facilitates rapid measurement and judgment of color differences without requiring a computer or software.

Price in the Market

The market average for spectrocolorimeters is extensive, but for high-end devices like the Spectrocolorimeter YR05518 – YR05519, prices typically range from 1500 USD to 2250 USD. These price ranges represent the quality and advanced features this device offers. Contact us to request a detailed quote or try the automatic quotation tool through the Kalstein Plus platform for accurate pricing information and availability.

Frequently Asked Questions

  • What makes the Spectrocolorimeter YR05518 – YR05519 stand out? It combines full-spectrum LED light sources, a flat grating, and a capacitive True Color touch screen, providing high-precision color metrics.
  • How long does the battery last? The lithium battery supports up to 6000 measurements in 8 hours and is rechargeable, ensuring long-term usability.
  • Does this spectrocolorimeter require calibration? Yes, regular calibration is recommended for maintaining accuracy, which the instrument facilitates with its easy-to-use calibration tools.

Advantages and Disadvantages

The Spectrocolorimeter YR05518 – YR05519 boasts significant advantages such as high precision, ease of operation, and long battery life. However, its high precision might require users to undergo a learning curve if they are unfamiliar with advanced spectrophotometric techniques.

Product Use in the Field

This device is ideal for industries requiring precise color measurements, such as electronics, plastics, paint, ink, textile printing and dyeing, ceramics, and more. Its portability allows users to perform measurements in various locations, ensuring quality control and consistency wherever needed.

Recommendations

For optimal use, it is recommended to regularly calibrate the spectrocolorimeter using its calibration accessories. Additionally, maintaining the device in its protective casing when not in use will help safeguard it from potential damage or dust interference.

Features

  • 8 mm measurement diameter with a 10° angle, suitable for most industrial requirements.
  • Full-spectrum LED light source with a flat grating and True Color capacitive touch screen.
  • LED light source lifespan exceeding 3 million measurements over 5 years.
  • Integration with silicon photodiode matrix for high precision and repeatability.
  • Data analysis and comparison with a storage capacity of 500 samples and 10,000 data points.

Technical Specifications

Model YR05518 YR05519
Optical Geometry D/8 (diffuse illumination, 8-degree field angle) D/8 (diffuse illumination, 8-degree field angle)
SCI Mode SCI Mode
Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Feature Φ8 mm apertures, used for precise color measurement and quality control in plastic electronics, paint and ink, textile printing and dyeing, printing, ceramics, and other industries. Φ8 mm apertures, used for precise color measurement and quality control in plastic electronics, paint and ink, textile printing and dyeing, printing, ceramics, and other industries.
Sphere Size Integration Φ40mm Φ40mm
Light Source Full spectrum combined LED light source Full spectrum combined LED light source
Spectrophotometric Mode Flat grating Flat grating
Sensor Silicon photodiode array (dual-row 24 groups) Silicon photodiode array (dual-row 24 groups)
Wave Range 400~700nm 400~700nm
Wavelength Range / /
Half Band 10nm 10nm
Measured Reflectance Range Length: 0~100; Reflectivity: Reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440 nm, 550 nm, 600 nm) Length: 0~100; Reflectivity: Reflectivity can be measured at 1 specific wavelength specified by the user (default: 550 nm)
Measurement Aperture Φ8mm Φ8mm
Specular Component LME LME
Colorimetric Space CIE Lab, XYZ, Yxy, LCh CIE Lab, XYZ, Yxy, LCh
Color Difference Formula ΔE*ab,ΔE*00 ΔE*ab,ΔE*00
Other Color Index / /
Observation Angle 10° 10°
Illuminant D65,A,F2(CWF) D65,A,F2(CWF)
Displayed Data Reflectivity (user specifies reflectivity at 3 specific wavelengths), chromaticity values of the sample, chart/color difference values, PASS/FAIL result, color simulation, color offset Reflectivity (user specifies reflectivity at 1 specific wavelength), chromaticity values of the sample, chart/color difference values, PASS/FAIL result, color simulation, color offset
Displayed Precision Display 0.1, storage 0.01 0.1
Measuring Time Approx. 1.5 s Approx. 1.5 s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.08 (when a white calibration plate is measured 30 times at 5-second intervals after white calibration) Chromaticity value: MAV/SCI, within ΔE*ab 0.1 (when a white calibration plate is measured 30 times at 5-second intervals after white calibration)
Inter-instrument Error MAV/SCI, within ΔE*ab 0.4 MAV/SCI, within ΔE*ab 0.4
(Average of 12 BCRA Series II color shingles) (Average of 12 BCRA Series II color shingles)
Measurement Mode Single measurement, average measurement (2-99 times) Single measurement, average measurement (2-99 times)
Location Method Stabilizer cross position Stabilizer cross position
Dimension L*W*H=81X71X214mm L*W*H=81X71X214mm
Weight Approx. 460g Approx. 460g
Battery Li-ion battery, 6,000 measurements in 8 hours Li-ion battery, 6,000 measurements in 8 hours
Illuminant Lifespan 5 years, more than 3 million measurements 5 years, more than 3 million measurements
Display 3.5-inch TFT color LCD, capacitive touch screen 3.5-inch TFT color LCD, capacitive touch screen
Data Port USB USB
Data Storage Standard 500 pieces, sample 10000 pieces Standard 500 pieces, sample 10000 pieces
Language Simplified Chinese, English, Traditional Chinese Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensation), Altitude < 2000m 0~40℃, 0~85%RH (no condensation), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensation) -20~50℃, 0~85%RH (no condensation)
Standard Accessories Power adapter, USB cable, user guide, SQCX software (downloadable from the official website), black and white calibration wells, protective cover, wrist strap, 8 mm flat aperture Power adapter, USB cable, user guide, black and white calibration wells, protective cover, wrist strap, 8 mm flat aperture
Optional Accessories Micro USB printer, dustproof box Micro USB printer, dustproof box
Notes Technical parameters are for reference, subject to actual product sales. Technical parameters are for reference, subject to actual product sales.
