Microscope de Laboratoire YR0239 – YR0240
Microscope de Laboratoire YR0239 – YR0240 — équipement de laboratoire Kalstein avec spécifications techniques, caractéristiques avancées et solutions professionnelles certifiées pour usage scientifique.

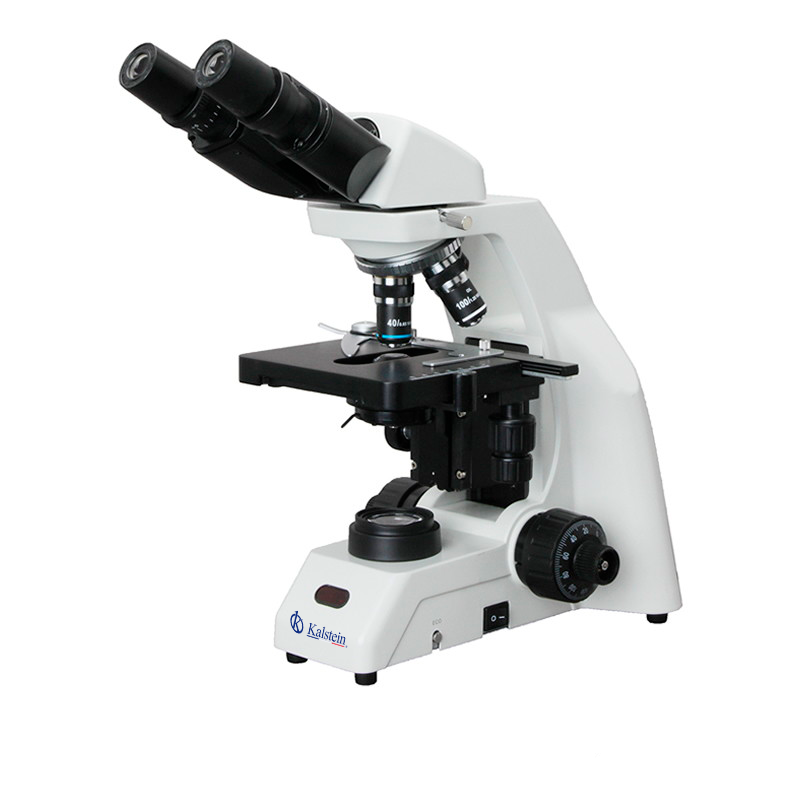

Microscope de Laboratoire YR0239 – YR0240 is a highly sophisticated and versatile laboratory instrument engineered for precise and detailed observation in scientific settings. With its Seidentopf binocular head inclined at 30° and adjustable interpupillary distance ranging from 47-78 mm, it ensures comfortable observation for extended periods. The fine and coarse coaxial focusing system allows for meticulous control with a fine division of 0.002 mm and a movement range of 25 mm. Equipped with a high-performance optical system and various objective lenses including 4X, 10X, 40X, and 100X, this microscope promises exceptional clarity and resolution for professional laboratory applications.
Market Price
The Microscope de Laboratoire YR0239 – YR0240 is competitively priced in the market, generally ranging between $600 and $1100. This price range reflects its advanced features, high-quality build, and the excellent performance it delivers, making it an invaluable investment for laboratories engaged in detailed research and educational purposes.
Frequently Asked Questions
What type of lighting system does the microscope use?

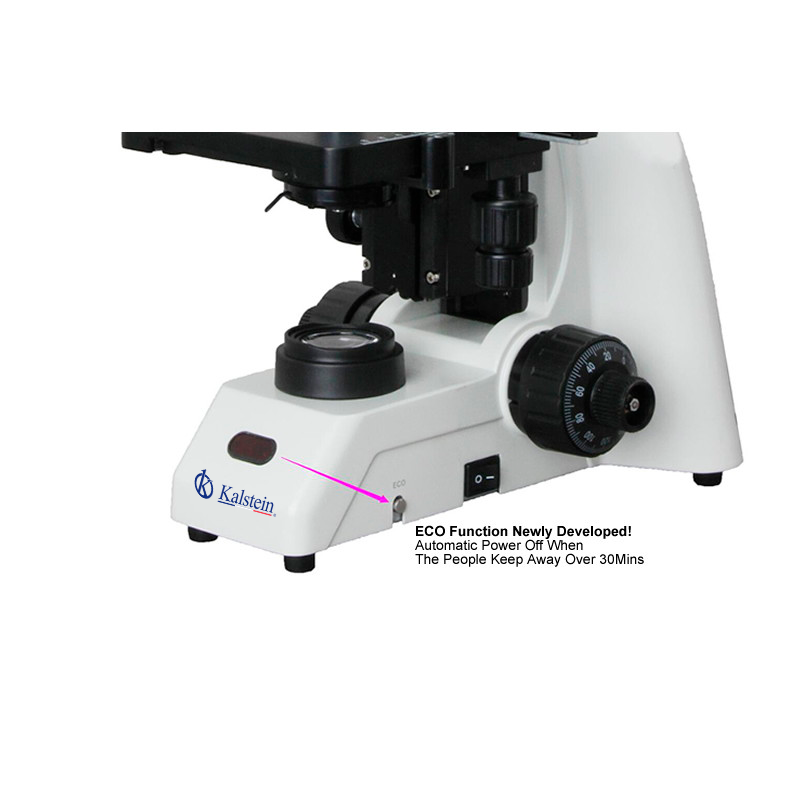

The microscope incorporates a bright LED illumination system to provide clear and consistent lighting for all kinds of observations. Some models also feature an ECO function to conserve energy by automatically shutting off after 30 minutes of inactivity.
Is it compatible with digital imaging?
Yes, certain models within this series are equipped with digital viewing heads, offering compatibility with Wi-Fi and featuring an Android operating system, ideal for capturing and analyzing images directly on screen.
Advantages and Disadvantages
Advantages:
The microscope boasts high precision and flexibility with its wide range of objectives, which deliver excellent clarity across various magnifications. Its ergonomic design ensures comfortable use, while the LED lighting system provides effective illumination.
Disadvantages:
The high level of sophistication may imply a slightly steep learning curve for new users not familiar with professional microscopes. Price may also be a consideration for smaller labs with limited budgets.
Field Usage
The Microscope de Laboratoire YR0239 – YR0240 is ideal for various scientific and educational settings, providing unparalleled performance in clinical research, biological studies, and academic environments. Its advanced features support a multitude of applications, allowing users to conduct precise examinations, capture detailed images for analysis, and facilitate superior learning experiences in educational contexts.
Recommendations
To maximize the use of this microscope, ensure regular maintenance by cleaning the lenses and checking the alignment to maintain the integrity of observations. Whenever possible, engage with demonstration videos or training sessions to fully understand the capabilities and potential adaptations of the device. For the best user experience, utilize platforms such as Kalstein Plus for prompt quotations and further information.
Features
- Seidentopf Binocular Head Inclined at 30°
- Interpupillary Distance of 47-78 mm
- Coaxial System with Fine and Coarse Adjustment
- High-Performance LED Illumination
- Eco Function for Automatic Shutdown
- Compatibility with Digital Imaging Systems
Technical Specifications
| Model | YR0239 | YR0239-1 | YR0240 | YR0240-1 | |
| Optical System | Finite Optical System | ||||
| Eyepiece | WF10X/18 | ||||
| Viewing Head | Monocular Head Inclined at 30° | ○ | ○ | ○ | ○ |
| Seidentopf Binocular Observation Head Inclined at 30°, Interpupillary 47-78 mm | ● | ● | |||
| Seidentopf Trinocular Observation Head Inclined at 30°, Interpupillary 47-78 mm | ● | ● | |||
| Digital Viewing Head Inclined at 30°, Interpupillary 47-78 mm, 5MP, Wi-Fi Compatible | ○ | ○ | ○ | ○ | |
| Digital Viewing Head Inclined at 30°, Interpupillary 47-78 mm, 5MP, 8” LCD, Android OS | ○ | ○ | ○ | ○ | |
| Achromatic Objective | 4X NA = 0.1 WD = 37.5 | ● | ● | ● | ● |
| 10X NA = 0.25 DW = 7.316 | ● | ● | ● | ● | |
| 20XNA=0.4WD=13 | ○ | ○ | ○ | ○ | |
| 40X NA=0.65 DW=0.632 | ● | ● | ● | ● | |
| 100X NA=1.25 DW=0.198 | ● | ● | ● | ● | |
| Nosepiece | Reversed Quadruple Nosepiece | ● | ● | ● | ● |
| Stage | Double Layer Mechanical Stage 140X140mm, Moving Range 75X50mm | ||||
| Condenser | Abbe Condenser NA1.25 | ● | ● | ● | ● |
| Dark Field Condenser (Dry, Oil) | ○ | ○ | ○ | ○ | |
| Focusing System | Coaxial Fine and Coarse Adjustment, Fine Division 0.002 mm, Moving Range 25 mm | ||||
| Illumination | 6V/20W Halogen Lamp | ○ | ○ | ○ | ○ |
| LED Illumination S | ● | ● | ● | ● | |
| S-LED Illumination with Charger | ○ | ○ | ○ | ○ | |
| Kohler Illumination | ○ | ○ | ○ | ○ | |
| ECO Function (Automatic Shut-off After 30 Minutes Without Operation) | ○ | ○ | ● | ● | |
| Flat Concave Mirror | ○ | ○ | ○ | ○ | |
| Fluo Accessory | Fluorescent Illumination, LED Lamp | ○ | ○ | ○ | ○ |
| Fluorescent Illumination, 100W HBO Lamp | ○ | ○ | ○ | ○ | |
| Polarization Set | ○ | ○ | ○ | ○ | |
| Phase Contrast Kit | ○ | ○ | ○ | ○ | |
Spécifications techniques
| Fabricant | Kalstein |
|---|
Modèles disponibles
Galerie d'images
Vidéo Microscope de Laboratoire YR0239 – YR0240
Questions fréquentes
Comment connaître les prix de Microscope de Laboratoire YR0239 – YR0240 ?
Pour connaître le prix de Microscope de Laboratoire YR0239 – YR0240, envoyez-nous un e-mail via le formulaire de contact AQUI.
Quels sont les délais de livraison de Microscope de Laboratoire YR0239 – YR0240 ?
Le délai dépend du stock et du fret (aérien ou maritime). En stock : aérien 15-30 jours, maritime 45-60 jours. Hors stock : aérien 30-60 jours, maritime 60-90 jours.
Comment effectuer un achat de Microscope de Laboratoire YR0239 – YR0240 ?
Vous pouvez acheter par e-mail ([email protected]), téléphone (+33 (0) 1 70 39 26 50) ou via le site officiel Kalstein de votre pays.
Comment fonctionne la garantie de Microscope de Laboratoire YR0239 – YR0240 ?
Tous les équipements Kalstein sont garantis 1 an contre les défauts de fabrication. La garantie ne couvre pas les dommages dus à une mauvaise installation ou utilisation. Consultez nos «conditions générales» AQUI.
Puis-je demander un devis en ligne de Microscope de Laboratoire YR0239 – YR0240 ?
Oui, vous pouvez demander un devis directement sur notre site officiel. Cliquez AQUI.
