Laboratory Microscope YR0239 - YR0240
Laboratory Microscope YR0239 - YR0240 — équipement de laboratoire Kalstein avec spécifications techniques, caractéristiques avancées et solutions professionnelles certifiées pour usage scientifique.

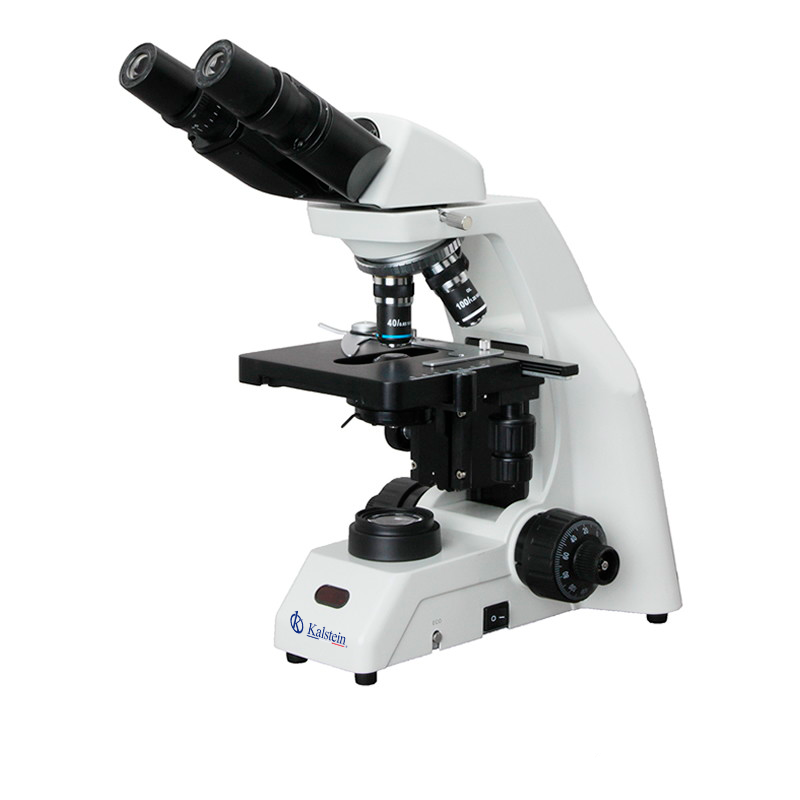

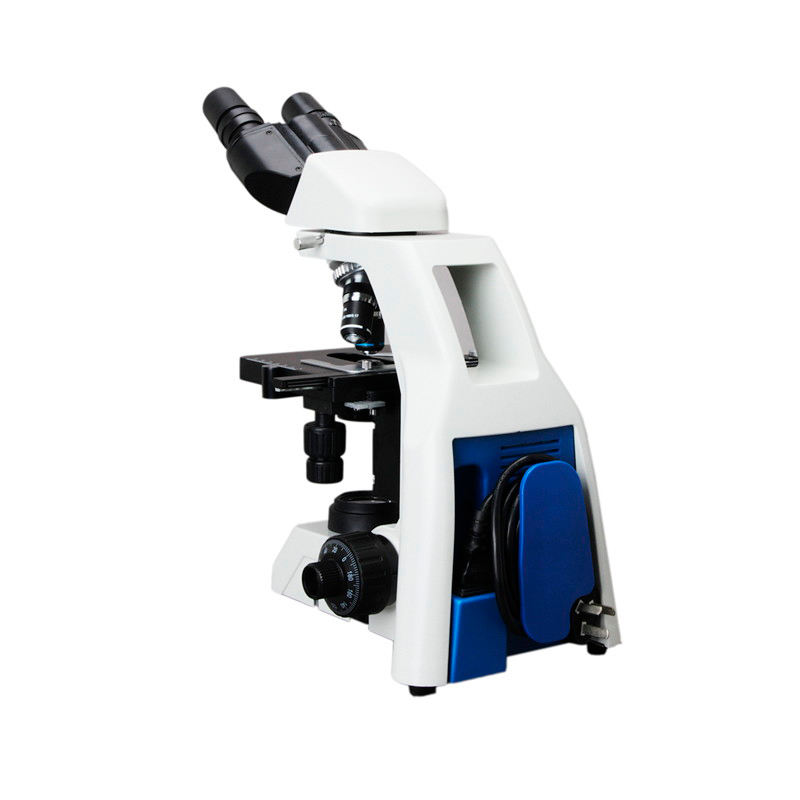

The Laboratory Microscope YR0239 - YR0240 is an advanced scientific instrument tailored for precise laboratory work. It features a Seidentopf binocular viewing head inclined at 30°, with an interpupillary distance range of 47-78 mm, ensuring comfortable use for extended periods. This model is equipped with a finite optical system and a set of achromatic objectives ranging from 4X to 100X, enabling detailed observation with superior clarity. The combination of a double-layer mechanical stage and coaxial coarse and fine focus adjustment ensures smooth operation and precise control, making it an ideal choice for researchers and professionals in the field of microscopy.
Market Price
The price range for laboratory microscopes of this caliber typically spans from USD 43,000 to USD 44,500. While the exact price may vary depending on the supplier and specific configurations, these figures provide a general benchmark for budget planning. Remember, investing in high-quality scientific equipment like the Laboratory Microscope YR0239 - YR0240 pays off by enhancing the accuracy and efficiency of your work.
Frequently Asked Questions
Q: Can the microscope be used with other types of illumination?
A: Yes, it supports various illumination options, including S-LED, halogen, and Kohler illumination, providing flexibility depending on your needs.
Q: Does it support digital imaging?
A: The model offers digital viewing head options that are inclined at 30° with 5M pixels and support WiFi, allowing for seamless integration with digital imaging systems.
Advantages and Disadvantages
Advantages: The microscope offers high optical clarity, multiple illumination options, and ergonomic design. It has a robust construction that ensures durability and reliability. Additionally, its ECO function enhances energy efficiency.
Disadvantages: The initial investment may be significant, and the advanced features may require some learning curve for new users.
Product Usage in the Field
Ideal for comprehensive laboratory analysis, the Laboratory Microscope YR0239 - YR0240 excels in clinical and research environments. Whether analyzing tissue samples or conducting microbiological examinations, this microscope provides consistent and accurate results, making it indispensable for scientific professionals.
Recommendations
To maximize the capabilities of your microscope, ensure regular cleaning and maintenance of optical components. Familiarize yourself with all features for optimal use, and consider participating in training sessions offered by Kalstein on the Kalstein Plus platform for advanced techniques and insights.
Features
- Darkfield condenser (dry, oil)
- Seidentopf binocular viewing head 30° inclined, interpupillary 47-78 mm
- Coaxial fine and coarse adjustment, 0.002mm fine division, 25mm moving range
- Finite Optical System
- WF10X/18 eyepiece
- Achromatic Objectives (4X, 10X, 20X, 40X, 100X)
- Double Layers Mechanical Stage
- S-LED illumination with ECO Function
Technical Specifications
| Model | YR0239 | YR0239-1 | YR0240 | YR0240-1 | |
| Optical System | Finite Optical System | ||||
| Eyepiece | WF10X/18 | ||||
| Viewing Head | Monocular Head Inclined at 30° | ○ | ○ | ○ | ○ |
| Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | ● | |||
| Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | ● | |||
| Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, Support Wifi | ○ | ○ | ○ | ○ | |
| Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, 8"LCD. Android OS | ○ | ○ | ○ | ○ | |
| Achromatic Objective | 4X N.A=0.1 WD=37.5 | ● | ● | ● | ● |
| 10X N.A=0.25 WD=7.316 | ● | ● | ● | ● | |
| 20X N.A=0.4 WD=13 | ○ | ○ | ○ | ○ | |
| 40X N.A=0.65 WD=0.632 | ● | ● | ● | ● | |
| 100X N.A=1.25 WD=0.198 | ● | ● | ● | ● | |
| Nosepiece | Backward Quadruple Nosepiece | ● | ● | ● | ● |
| Stage | Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm | ||||
| Condenser | NA1.25 Abbe Condenser | ● | ● | ● | ● |
| Dark Field Condenser (Dry, Oil) | ○ | ○ | ○ | ○ | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm | ||||
| Illumination | Halogen Lamp 6V/20W | ○ | ○ | ○ | ○ |
| S-LED Illumination | ● | ● | ● | ● | |
| S-LED Illumination with Recharger | ○ | ○ | ○ | ○ | |
| Kohler Illumination | ○ | ○ | ○ | ○ | |

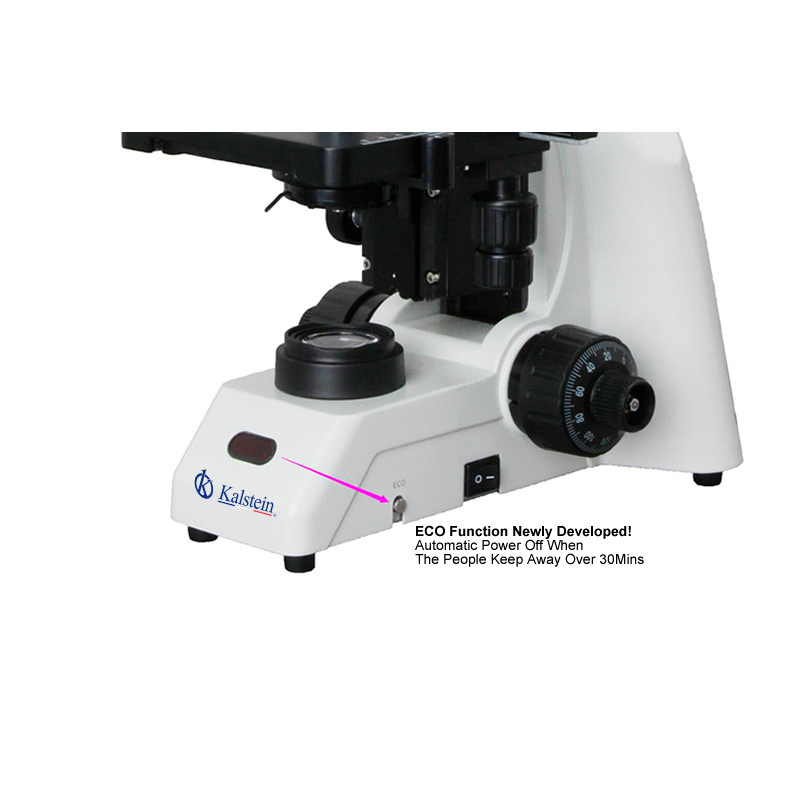

| ECO Function (Auto Power Off After 30 Mins No Operation) | ○ | ○ | ● | ● | |
| Plane-concave Mirror | ○ | ○ | ○ | ○ | |
| Fluorescent Attachment | Fluorescent Illumination, LED Lamp | ○ | ○ | ○ | ○ |
| Fluorescent Illumination, 100W HBOLamp | ○ | ○ | ○ | ○ | |
| Polarzation Set | ○ | ○ | ○ | ○ | |
| Phase Contrast Kit | ○ | ○ | ○ | ○ | |
Spécifications techniques
| Fabricant | Kalstein |
|---|
Galerie d'images
Vidéo Laboratory Microscope YR0239 - YR0240
Questions fréquentes
Comment connaître les prix de Laboratory Microscope YR0239 - YR0240 ?
Pour connaître le prix de Laboratory Microscope YR0239 - YR0240, envoyez-nous un e-mail via le formulaire de contact AQUI.
Quels sont les délais de livraison de Laboratory Microscope YR0239 - YR0240 ?
Le délai dépend du stock et du fret (aérien ou maritime). En stock : aérien 15-30 jours, maritime 45-60 jours. Hors stock : aérien 30-60 jours, maritime 60-90 jours.
Comment effectuer un achat de Laboratory Microscope YR0239 - YR0240 ?
Vous pouvez acheter par e-mail ([email protected]), téléphone (+33 (0) 1 70 39 26 50) ou via le site officiel Kalstein de votre pays.
Comment fonctionne la garantie de Laboratory Microscope YR0239 - YR0240 ?
Tous les équipements Kalstein sont garantis 1 an contre les défauts de fabrication. La garantie ne couvre pas les dommages dus à une mauvaise installation ou utilisation. Consultez nos «conditions générales» AQUI.
Puis-je demander un devis en ligne de Laboratory Microscope YR0239 - YR0240 ?
Oui, vous pouvez demander un devis directement sur notre site officiel. Cliquez AQUI.
