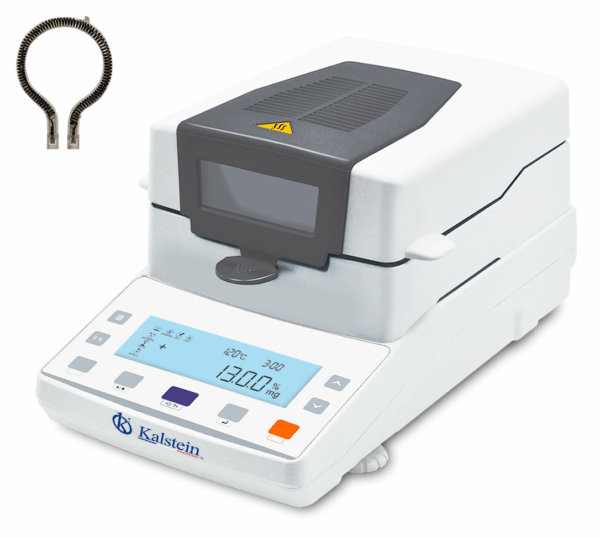

Analyseur d'humidité infrarouge YR05556
Analyseur d'humidité infrarouge YR05556 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Analyseur d'humidité infrarouge YR05556 delivers precision and reliability for moisture analysis needs, featuring a robust aluminum housing with a stainless steel chamber and high-definition LCD. This device is equipped with an HBM infrared lamp/sensor, offering accurate adjustments for temperature and timing, and provides results as the percentage of dry residue or moisture content. Its data storage feature can hold historical sets, and optional accessories include an aluminum case, printer, and grinder.
Price in the Market
The infrared moisture analyzer, like the YR05556, typically falls within the mid-range segment for professional laboratory equipment. So, market prices can vary from approximately 1,200 USD to 2,000 USD, depending on features and optional accessories chosen. We invite you to obtain an exact pricing quote through the Kalstein Plus platform.
Frequently Asked Questions
Q: Can this analyzer handle different sample types? A: Yes, it is designed to analyze a wide range of samples, including powders, granules, and pastes.
Q: Does it require frequent calibration? A: The device supports external calibration, ensuring accurate measurements over time with minimal intervention.
Advantages and Disadvantages
Advantages: Its high precision and reliability make it ideal for laboratory settings. The intuitive LCD and robust build add to its durability and ease of use.
Disadvantages: Some users may find the need for external calibration as a potential inconvenience if frequent adjustments are necessary for their applications.
Use of the Product in the Field
This moisture analyzer is extensively used in chemical, pharmaceutical, and food industries for moisture content validation. Its capability to store historical data aids in maintaining consistency and quality control.
Recommendations
For optimal usage, ensure that operating temperatures are maintained between the specified 5℃ and 35℃. Regularly check the calibration status and utilize the optional accessories for enhanced functionality.
Features
- HBM Infrared Lamp/Sensor
- Aluminum casing with stainless steel chamber
- High-definition LCD
- Adjustable temperature and duration
- Read dry residue or moisture content percentage
- Historical data storage capability
- Optional accessories: aluminum case, printer, grinder
Technical Specifications
| Model | YR05556 |
| Capacity | 110g |
| Readability | 0.001g |
| Operating Temperature | 5℃-35℃ |
| Display | LCD HD rear screen |
| Calibration | External calibration |
| Interface | RS232 (standard) / USB (optional) |
| Pan size | Ø90mm |
| Packing size | 490x350x360mm |
| Gross weight | 7.5 kg |
| Heating | Infrared lamp |
| Temperature Sensor | PT100 |
| Temperature Range | 40℃-160℃ |
| Temperature Step | 1℃ |
| Humidity Range | 0.00%-100.00% |
| Humidity Reading | 0.01 % |
| Dry Range | 100.00%-0.00% |
| Dry Readability | 0.01 % |
| Temperature Setting | 40℃-199℃ in 1℃ steps |
| Time Setting | 1-99min in 1s |
| Storage Number | 15 |
| History Number | 5 |
| Heating | 220V±15% 50HZ/110V±15% 60HZ/400W |
| Balance | Input: 220V 50HZ/110V 60HZ Output: 9V |
Spécifications techniques
| Dimensions | L 49 × W 35 × H 36 cm |
|---|---|
| Poids | 7.5 kg |
| Fabricant | Kalstein |
