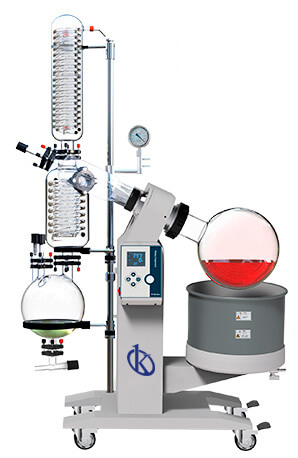

Technical Performance and Safety of Rotary Evaporator YR02308
The Rotary Evaporator YR02308 is an essential piece of laboratory equipment designed for efficient solvent evaporation through a combination of heat and vacuum. Its significant capacity and wide neck flask provide an expansive evaporation surface, making it ideal for various applications across biological engineering, pharmaceuticals, chemical industries, and food processing.
Product Description
The Rotary Evaporator YR02308 operates by continuously rotating the evaporation flask while being heated using a water bath, which allows the solvent to evaporate more efficiently under vacuum conditions. This model is specifically developed for pilot-scale production, making it a versatile tool in the laboratory. The evaporator works optimally with a range of accessories including a water circulation vacuum pump, diaphragm vacuum pump, recirculating chiller, constant temperature circulator, and low-temperature circulation pump.
Technical Specifications
| Specification | Details |
|---|---|
| Model | YR02308 |
| Evaporating Flask | 10L, Ø125mm |
| Receiving Flask | 5L |
| Speed Regulation | Continuous Variable |
| Power Supply | 220-240V, 50/60Hz |
| Heating Power (kW) | 3.5 |
| Total Power (kW) | 3.8 |
| Rotation Speed (rpm) | 20~130 |
| Condenser | Triple-cooling vertical type |
| Temperature Range | RT – 95°C |
| Net Weight (kg) | 61 |
Market Price
The market price for the Rotary Evaporator YR02308 is approximately $2824.00 USD. This price reflects its advanced features and suitability for a range of industrial applications, ensuring that you receive a high-quality instrument designed for durability and precision.
Technical Comparison
| Feature | YR02307 | YR02308 (Current) | YR02309 | YR02310 |
|---|---|---|---|---|
| Evaporating Flask | 5L, Ø 50mm | 10L, Ø125mm | 20L, Ø 125mm | 50L, Ø125mm |
| Receiving Flask (L) | 3 | 5 | 10 | 20 |
| Heating Power (kW) | 2 | 3.5 | 6 | 6 |
| Total Power (kW) | 2.3 | 3.8 | 6.3 | 6.3 |
| Rotation Speed (rpm) | 20 – 140 | 20~130 | 20~110 | 20~110 |
Frequently Asked Questions
What is a rotary evaporator used for?
A rotary evaporator is primarily used for the efficient evaporation of solvents in various laboratory settings. It allows for the gentle removal of solvents from samples, making it essential in fields such as chemistry, biology, and pharmaceuticals.
How does the rotary evaporator ensure safety during operation?
The rotary evaporator YR02308 is equipped with a double sealing technology that maintains a negative pressure level, ensuring safe operation. It also features an automatic switch valve which allows for continuous collection without affecting the vacuum level.
What accessories are compatible with the rotary evaporator YR02308?
Compatible accessories include water circulation vacuum pumps, diaphragm vacuum pumps, recirculating chillers, constant temperature circulators, and low-temperature circulation pumps, which enhance its functionality across different applications.
What is the maximum temperature range for the rotary evaporator YR02308?
The maximum temperature range for the rotary evaporator YR02308 is from room temperature (RT) to 95°C, allowing flexibility in various evaporation processes.
Is the rotary evaporator easy to operate?
Yes, the rotary evaporator YR02308 is designed for ease of use, featuring a simple control interface for speed regulation and temperature settings, making it user-friendly for lab technicians.
What materials are used in the construction of the rotary evaporator?
The rotary evaporator YR02308 is primarily made of high-quality 304 stainless steel and glass components, ensuring durability and resistance to corrosion.
How does the rotary evaporator achieve efficient solvent evaporation?
The rotary evaporator achieves efficient solvent evaporation by rotating the flask while applying heat and vacuum, which lowers the boiling point of the solvent, facilitating quicker evaporation.
Pros and Cons
Pros
- High evaporation efficiency due to wide neck flask and vacuum conditions.
- Robust safety features including double sealing technology and automatic switch valve.
- Versatile applications across various industries including pharmaceuticals and food processing.
- Easy to use with simple control settings for temperature and speed.
- Durable construction with materials resistant to corrosion.
Cons
- Initial investment cost may be high compared to simpler distillation methods.
- Requires regular maintenance to ensure optimal performance.
- Size may be a limitation for smaller laboratory setups.
Field Usage
The Rotary Evaporator YR02308 is suitable for various fields including:
- Biological Engineering: Ideal for extracting essential oils and compounds.
- Pharmaceutical Industry: Used in the production of medicines requiring solvent evaporation.
- Chemical Research: Efficiently separates solvents in chemical reactions.
- Food Processing: Assists in the production of extracts and concentrates.
Recommendations
For optimal usage of the Rotary Evaporator YR02308, it is recommended to:
- Regularly calibrate and maintain the equipment to ensure accuracy.
- Utilize appropriate accessories based on the application for enhanced performance.
- Ensure proper safety measures are in place, including using protective gear during operation.
- Follow the manufacturer's guidelines for setup and usage to maximize efficiency and safety.
Request a quote today to learn more about the Rotary Evaporator YR02308 and how it can meet your laboratory needs.
