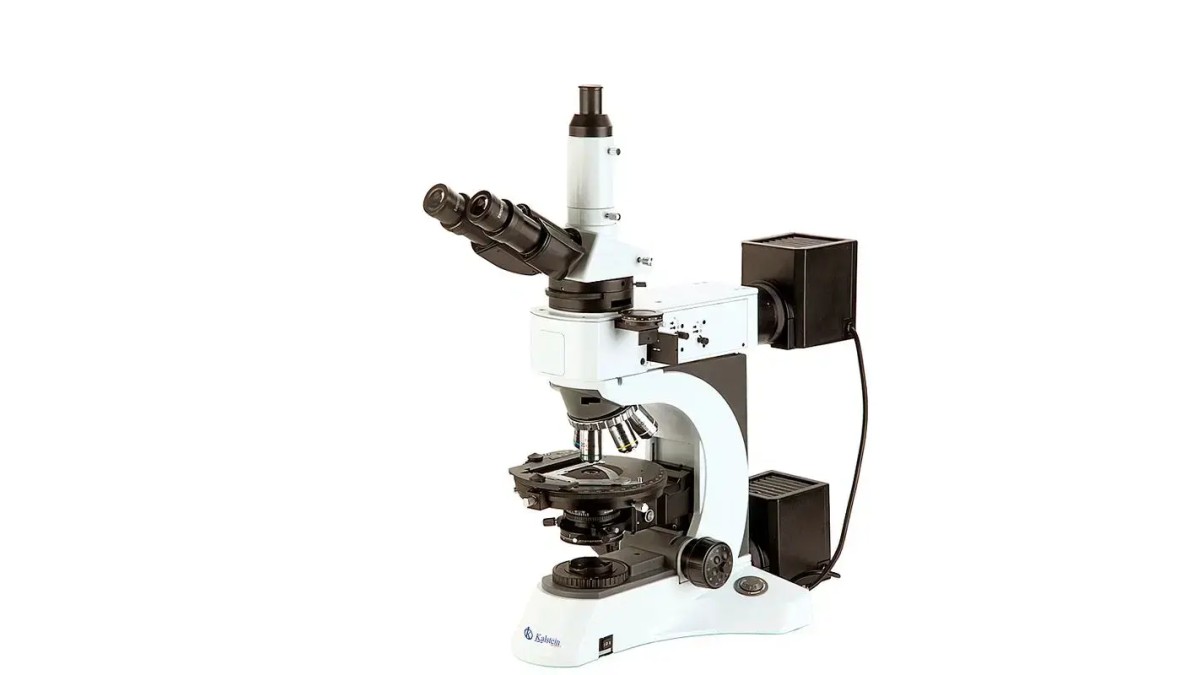

Technical Performance and Safety of Microscope Trinocular YR0262
The Microscope Trinocular YR0262 offers exceptional technical performance and robust safety features, making it an ideal choice for laboratories and research facilities. With advanced optical systems and adjustable components, this microscope provides unparalleled clarity and precision for various applications.
Product Description
The Microscope Trinocular YR0262 is equipped with a quintuple adjustable revolver, allowing users to switch between different lenses effortlessly. It features LWD (Long Working Distance) infinity plan objectives with magnifications of 5x, 10x, 40x, and 100x, ensuring a comprehensive range for detailed observations. The round stage has a diameter of 170mm with an adjustable center, providing flexibility for various specimen sizes.
This model includes an analyzer unit with a Bertrand lens, λ slide, 1/4λ slide, and a quartz wedge, enhancing the analytical capabilities of the device. The adjustable halogen transmission and reflection lighting system (24V 100W) ensures optimal illumination for accurate imaging.
Market Price
The current market price for the Microscope Trinocular YR0262 is set at $3227.00. This price reflects the high-quality construction and advanced features that the microscope offers. When comparing it to its counterpart model, YR0263, which also features advanced optics but at a different price point, potential buyers can assess their specific needs and budget constraints.
| Feature | YR0262 | YR0263 |
|---|---|---|
| Optical System | Infinity Optical System | Infinity Optical System |
| Head Type | Trinocular Seidentopf, 30° inclined | Trinocular Seidentopf, 30° inclined |
| Eyepiece | Plan Eyepiece EW10x/22mm | Plan Eyepiece EW10x/22mm |
| Objective Type | Achromatic Strainfree LWD Infinity Plan | Achromatic Strainfree Infinity Plan |
| Adjustable Stage | 170mm diameter | 170mm diameter |
| Illumination | Halogen 24V 100W, adjustable brightness | Halogen 24V 100W, adjustable brightness |
Frequently Asked Questions
What are the main features of the Microscope Trinocular YR0262?
The Microscope Trinocular YR0262 features a quintuple adjustable revolver, LWD infinity plan objectives, an adjustable round stage, and an advanced illumination system. It also includes an analyzer unit for enhanced analytical capabilities.
Is the YR0262 suitable for educational purposes?
Yes, the YR0262 is suitable for educational purposes, especially in advanced laboratory settings where precision and clarity are essential for learning and experimentation.
What type of lighting does the Microscope Trinocular YR0262 use?
The microscope utilizes a 24V 100W halogen lamp for both reflective and transmissive lighting, allowing for adjustable brightness to suit different specimen types.
Can the objectives be changed easily?
Yes, the quintuple revolver design allows for quick and easy changes between different objectives, enhancing the convenience of the microscope during use.
What is the working distance of the microscope?
The working distance varies by objective; for example, the 5x objective has a working distance of 15.5 mm, while the 100x objective has a working distance of 2 mm.
Are there any additional accessories available for the YR0262?
Yes, there are various optional accessories available for the YR0262, including filters and adapters for different applications, enhancing its versatility.
How does the YR0262 compare to the YR0263?
The YR0262 is designed with a slightly different set of optical components than the YR0263, impacting its pricing and specific applications. Both models feature high-quality optics but may cater to different user needs.
Pros and Cons
Pros
- High-quality optical system for clear imaging.
- Adjustable components for enhanced flexibility.
- Robust build quality suitable for intensive use.
- Multiple objective lenses for diverse applications.
- Effective illumination system for various specimen types.
Cons
- Higher price point may be prohibitive for some users.
- Requires proper maintenance for longevity.
Field Usage
The Microscope Trinocular YR0262 is ideal for various fields including biological research, materials science, and laboratory diagnostics. Its precision optics make it suitable for observing cellular structures and materials at a microscopic level. The versatility offered by multiple objectives allows users to switch their focus based on the specific requirements of their experiments.
In educational settings, this microscope serves as a powerful tool for teaching students about microscopy techniques and the intricate details of specimen analysis. Additionally, in industrial applications, it can be utilized for quality control and failure analysis of materials.
Recommendations
For best results with the Microscope Trinocular YR0262, it is recommended to use high-quality slides and specimens to ensure clarity and accuracy in observations. Proper training on the use of the microscope's features will enhance the user experience, maximizing its capabilities.
Additionally, regular maintenance and calibration should be performed to keep the microscope in optimal working condition. For those interested in expanding their laboratory capabilities, consider exploring available accessories and complementary equipment that can further enhance the YR0262's functionality.
Request a quote on Kalstein Plus to discover more about this exceptional microscope and how it can fit into your laboratory needs.
