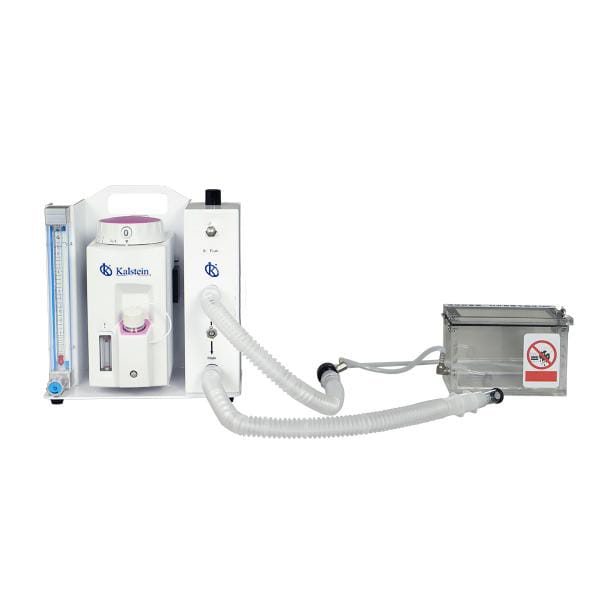

Technical Glossary and Key Terminology for the YR06099 Veterinary Anesthesia Machine
The YR06099 Veterinary Anesthesia Machine serves as an essential tool in veterinary practices, ensuring safe and effective anesthesia for various animals. This article delves into the technical language surrounding this sophisticated equipment, providing definitions and context for key terms related to its functions, features, and operational principles.
Understanding the YR06099: An Overview
The YR06099 model is engineered for precision and reliability in veterinary medicine. Its automatic flow and temperature compensation enhance the user experience, ensuring stable output and reducing administration errors. Such features are crucial for maintaining the safety and comfort of the animals under anesthesia.
Key Technical Specifications of the YR06099
| Specification | Details |
|---|---|
| Model | YR06099 |
| Gas Source Supply Flow Rate | 0.2~15L/min; if concentration > 4%, 0.2~8L/min |
| Gas Source Supply Quality Requirements | Medical pure oxygen and air mixture, or O2 and N2O mixture |
| Channel | 1 |
| Control Concentration Range | Sevoflurane: 0.2-8% or Isoflurane: 0.2-5% (v/v) |
| Concentration Control Accuracy | ±5% of full scale or ±15% of set value |
| Anesthetic Dose | Total volume of dry wick is about 300mL; visible liquid level is about 250mL. |
| Consumption of Anesthetic | Approximately 3 x supply gas flow (L/min) x set concentration value (%(v/v)) |
| Maximum Pressure Load | 20 kPa |
| Maximum Use Tilt Angle | 30° |
| Material | Mainly aluminum |
| Working Conditions | Temperature: 5~40°C, Atmospheric pressure: 700~1060hPa |
| Storage Conditions | Temperature: -40~55°C, Atmospheric pressure: 500~1060hPa |
Glossary of Key Terms Related to YR06099
| Term | Definition |
|---|---|
| Flow Rate | The volume of gas that is delivered per unit time, typically measured in liters per minute (L/min). |
| Concentration Control | The mechanism that regulates the percentage of anesthetic gas mixed with oxygen or air to ensure desired levels during procedures. |
| Sevoflurane | A commonly used inhalational anesthetic for animals, characterized by rapid induction and recovery. |
| Isoflurane | Another inhalational anesthetic used in veterinary medicine, noted for its stability and potency. |
| Automatic Compensation | A feature that adjusts flow or temperature parameters automatically to maintain consistent output. |
| Gas Source Supply | The origin of the gases used in the anesthesia machine, typically medical-grade oxygen or air. |
| Leakage Testing | The process of ensuring that no gas escapes from the anesthesia machine, which is crucial for safety. |
| Calibration | The process of adjusting the anesthesia machine to ensure accurate delivery of gases. |
| Pressure Load | The amount of pressure that the machine can safely handle without risk of malfunction. |
| Operating Manual | A comprehensive guide that provides instructions for the setup, use, and maintenance of the YR06099 anesthesia machine. |
| Safety Features | Design elements included in the machine to protect users and animals during operation. |
Frequently Asked Questions
What are the advantages of using the YR06099 in veterinary medicine?
The YR06099 offers several advantages for veterinary practices, including precise flow and temperature control, automatic compensation features, and safety mechanisms such as anti-accidental opening locks. These features contribute to a safer and more effective anesthesia experience for various animal species.
How do I maintain the YR06099 Veterinary Anesthesia Machine?
Regular maintenance should include checking gas supply connections, performing leakage tests, calibrating the device periodically, and inspecting all safety features. Detailed guidelines for maintenance are included in the operating manual.
What types of animals is the YR06099 suitable for?
The YR06099 is designed for use with a variety of laboratory and pet animals, including rats, mice, rabbits, cats, hamsters, and guinea pigs. Its adjustable settings allow for tailored anesthesia protocols based on the size and species of the animal.
What should I do if the YR06099 displays an error code?
If the YR06099 generates an error code, refer to the troubleshooting section of the operating manual. Common issues can often be resolved by checking gas supply, recalibrating the device, or inspecting for leaks.
Can the YR06099 be used in mobile veterinary practices?
Yes, the YR06099 can be configured as a mobile anesthesia machine, making it suitable for fieldwork and mobile veterinary clinics. Its lightweight design and versatile functionality facilitate easy transport and setup.
What is the expected lifespan of the YR06099?
The expected lifespan of the YR06099 can vary based on usage and maintenance practices, but with proper care, it can operate efficiently for many years. Regular service intervals and timely replacement of consumables are recommended to extend its life.
