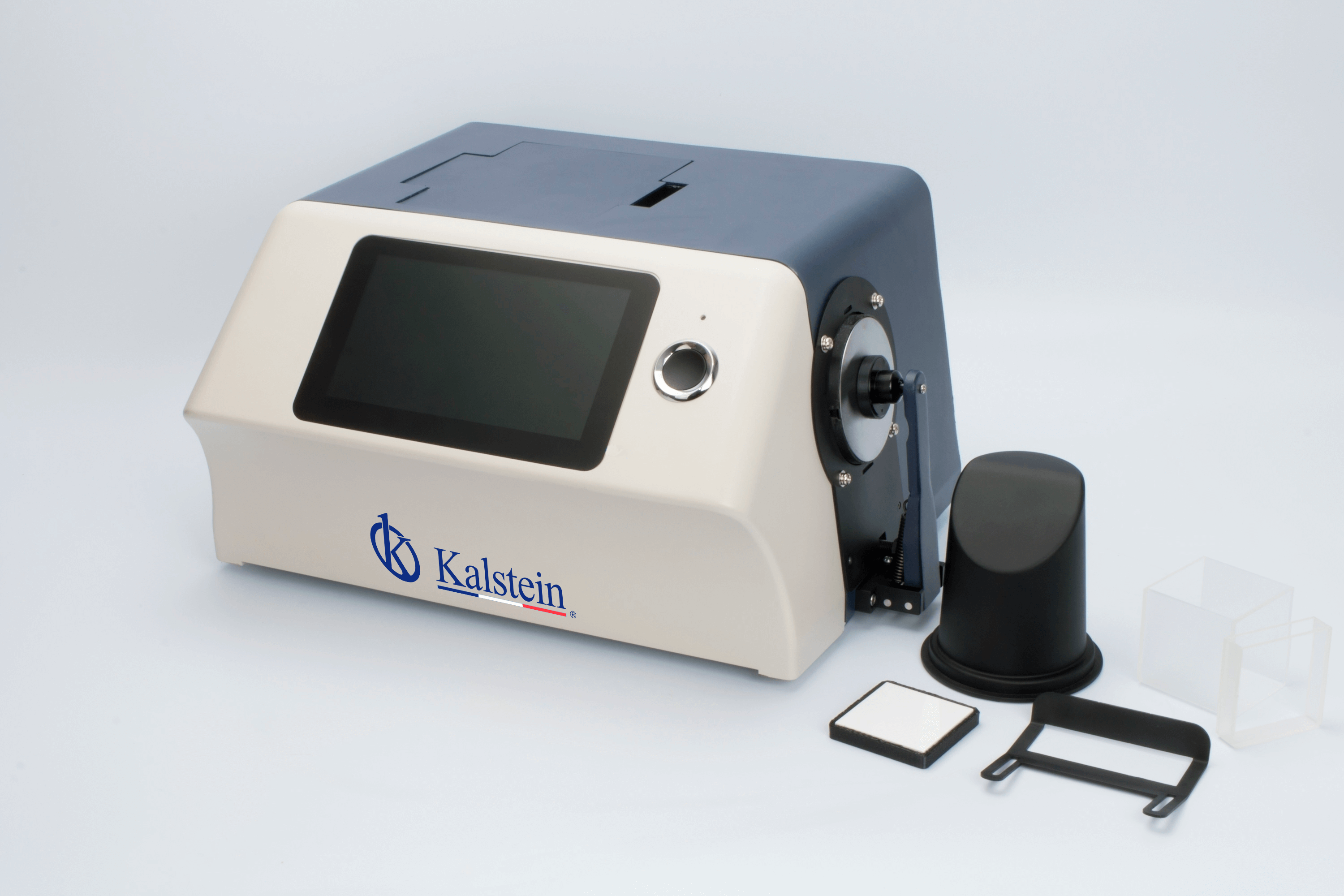

Table Top Spectrophotometer YR05475: Integration in Field Processes
The YR05475 Table Top Spectrophotometer, developed by Kalstein, is an advanced optical instrument designed for accurate color measurement. With its cutting-edge technology, this device is equipped with a pulsed xenon lamp, providing a versatile solution for color analysis in various industries. This article will detail the product description, market price, frequently asked questions, pros and cons, field usage, and recommendations about the YR05475.
Product Description
The YR05475 features a range of sophisticated characteristics that enhance its usability in both laboratory and field environments.
- 7-inch capacitive TFT touch screen for user-friendly operation.
- High stability and precision in color measurements.
- Reflective d/8 and transmissive d/0 geometry with full illuminants.
- Automatic measurement aperture identification with three interchangeable sizes: Φ 25.4 mm, 8 mm, and 4 mm.
- Integrated temperature sensor for accurate temperature compensation.
- Wide wavelength range of 360 nm to 780 nm, with a built-in 400 nm cut-off for professional UV measurements.
- Independent light source detector to ensure reliable light source conditions.
- Multiple measurement modes to meet diverse user requirements.
- Large data storage capacity for up to 20,000 test results.
- Robust PC software with advanced functionalities.
Market Price
The YR05475 Table Top Spectrophotometer is priced competitively at $4,695.00. This price reflects the advanced technology and features that the instrument offers, making it a valuable investment for laboratories and industries requiring precise color measurements.
| Feature | YR05475 |
|---|---|
| Touch Screen | Yes, 7-inch TFT |
| Measurement Range | 360 nm - 780 nm |
| Storage Capacity | 20,000 results |
| Integrated Temperature Sensor | Yes |
| Weight | Approximately 9.6 kg |
Frequently Asked Questions
What industries can benefit from using the YR05475?
The YR05475 is suitable for various industries including plastics, electronics, paint and ink, printing, textiles, automotive, medical, cosmetics, and food, making it a versatile tool for color analysis.
How does the YR05475 ensure accurate color measurement?
The spectrophotometer uses high-precision CMOS dual-array sensors and employs an integrated temperature sensor to compensate for any temperature variations during measurements, ensuring consistent accuracy.
Can the measurement apertures be customized?
Yes, the YR05475 offers users the option to customize measurement apertures, along with three standard sizes for versatility in different applications.
What is the life expectancy of the light source?
The light source of the YR05475 has a lifespan of approximately 5 years, capable of more than 3 million measurements, thereby minimizing the need for frequent replacements.
Is there software available for data analysis?
Yes, the YR05475 comes with powerful software for PC that enhances data management and analysis capabilities, allowing users to perform in-depth evaluations of color data.
How long does it take to complete a measurement?
The YR05475 completes a measurement in approximately 2.4 seconds, with additional time for SCI and SCE measurements being around 5 seconds.
Is there a warranty or support available for the YR05475?
Yes, Kalstein provides customer support and warranty options for the YR05475, ensuring users have assistance when needed.
Pros and Cons
Pros
- High precision and stability in measurements.
- Wide range of applications across various industries.
- User-friendly interface with a capacitive touch screen.
- Large data storage capacity for extensive testing records.
- Customizable measurement apertures for flexibility.
Cons
- Higher price point compared to some competitors.
- Requires regular calibration to maintain accuracy.
Field Usage
The YR05475 is designed for effective use in field processes, providing reliable color measurements in real-time. Its robust design and features make it ideal for various applications such as:
- Quality control in manufacturing environments.
- Color matching in paint and coatings production.
- Color analysis in textiles and fashion.
- Food quality assessments, ensuring compliance with color standards.
Its portability and ease of use allow professionals to carry out measurements on-site, improving efficiency and accuracy in color evaluation tasks.
Recommendations
For those considering the YR05475 Table Top Spectrophotometer, it is advisable to:
- Evaluate the specific color measurement needs of your industry.
- Consider integrating the device into your quality control processes for enhanced accuracy.
- Utilize the advanced software for data analysis to gain deeper insights into color performance.
- Regularly calibrate the device to maintain measurement integrity.
- Request a quote to understand the investment and options available for your specific requirements.
