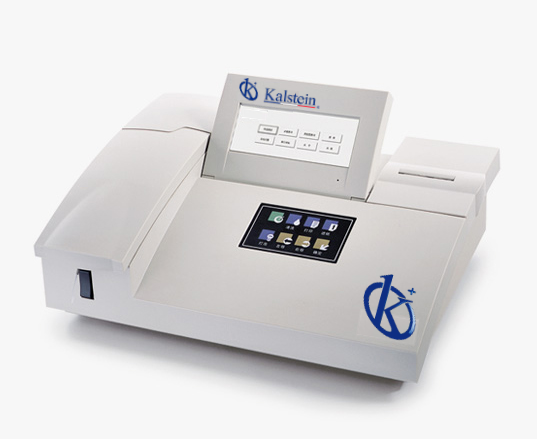

Semi-Automatic Chemistry Analyzer YR05114 - Investment Returns
Product Description
The Semi-Automatic Chemistry Analyzer YR05114 stands as a versatile tool designed to enhance laboratory diagnostics. With a user-friendly interface and robust capabilities, it is ideal for both clinical and research settings. The device is equipped with a 5-inch color LCD touchscreen that provides an intuitive user experience, enabling laboratory technicians to operate seamlessly.
One of the key features of this analyzer is its compatibility with both cuvette and flow cell testing modes, allowing flexibility depending on the testing requirements. Furthermore, it offers real-time curve visualization, enhancing the clarity and ease of result interpretation.
With five wavelengths and 80 preprogrammed test elements, the YR05114 covers a wide range of assays, making it suitable for comprehensive analysis in diverse fields. The analyzer’s memory can store up to 10,000 sample results, ensuring that data retrieval is quick and efficient.
To prolong the lifespan of the light source, the analyzer includes a light source hibernation feature. Additionally, its RS232 interface allows for easy connection to a PC for data management and further analysis.
Regular Test List
- Liver Function: ALT, AST, ALP, T-BIL, TP, ALB, TTT, CHE, N
- Renewal Function: BUN, CRE, UA, URE, CO2-CP, y-GT
- Lipids: T-CHO, TG, HDL-C, LDL-C
- Cardiac Function: CK, CK-MB, LDH
- Immune Proteins: IGA, IGG, IGM, C3
- Others: GLU, HGB, AMS
Technical Description
| Specification | Value |
|---|---|
| Model | YR05114 (current) |
| Test Mode | Kinetic, end-point, two points |
| Wavelengths | 5 wavelengths, 340, 405, 505, 560, 630 nm |
| Absorbance Range | 0~4.500 Abs |
| Absorbance Precision | 0.0001 Abs (outer), 0.00001 Abs (inner) |
| CV of Repeatability | < 1% |
| Continuity | < 1% |
| Incubator | 37 ℃, 30 ℃, 25 ℃, Accuracy: ± 0.1 ℃ |
| Sample Volume | 0 ~ 3000 uL (recommended ≥500uL) |
| Flow Cell | 32 uL quartz glass, 10 mm |
| Data Storage | ≥10000 |
| Display | 5-inch color LCD, touchscreen |
| Printer | Internal thermal printer, paper: Ф30 * 57 mm |
Market Price
The market price of the Semi-Automatic Chemistry Analyzer YR05114 typically ranges around $950 USD or approximately €1151. This pricing positions the analyzer as a cost-effective solution for laboratories looking to enhance their testing capabilities without going beyond budget constraints.
Investing in the YR05114 not only covers the initial purchase price but also factors in potential savings over time due to its efficiency and long lifespan. The capability to handle a wide variety of tests and its robust data management features contribute to a favorable return on investment (ROI) in a laboratory setting.
Frequently Asked Questions
What types of tests can the YR05114 perform?
The YR05114 can perform a variety of tests including liver function tests, lipid profiles, renal tests, and cardiac function evaluations, among others. It is preprogrammed with 80 test elements, covering a wide range of diagnostic needs.
How does the light source hibernation feature work?
The light source hibernation feature automatically puts the light source into standby mode when not in use. This prolongs the lifespan of the light source, ensuring that the device remains efficient and cost-effective over time.
How can the analyzer connect to a PC?
The YR05114 is equipped with an RS232 interface, allowing for easy connection to a PC. This functionality enables data transfer for further analysis and record-keeping, enhancing the analyzer's utility in the lab.
What is the maximum sample volume the YR05114 can handle?
The analyzer can accommodate a sample volume ranging from 0 to 3000 uL, although a volume of 500 uL or more is recommended for optimal performance.
Is the YR05114 easy to operate?
Yes, the YR05114 features a 5-inch color LCD touchscreen that provides an intuitive interface, making it user-friendly for laboratory personnel to operate effectively without extensive training.
What is the warranty period for the YR05114?
Typically, the warranty period for the YR05114 is specified by the manufacturer. It is advisable to consult with the supplier for detailed warranty information on the product.
Pros and Cons
Pros
- Versatile testing modes (kinetic, end-point, two points)
- Large storage capacity for sample results (up to 10,000)
- User-friendly interface with a color touchscreen
- Long lifespan due to light source hibernation feature
- Wide range of preprogrammed tests available
Cons
- Initial investment may be significant for smaller labs
- The need for periodic maintenance and calibration
- Learning curve for advanced features
Field Usage
The Semi-Automatic Chemistry Analyzer YR05114 is widely used in various fields including clinical laboratories, research institutions, and diagnostic centers. Its ability to perform multiple tests efficiently makes it a valuable asset in environments where time and accuracy are critical.
In clinical settings, it supports rapid diagnosis and monitoring of patient health, particularly in areas such as liver and kidney function testing. Research institutions utilize the analyzer for innovative studies requiring precise chemical analysis, while diagnostic centers benefit from its ability to handle large volumes of tests with quick turnaround times.
Recommendations
For laboratories seeking to enhance their testing capabilities, the Semi-Automatic Chemistry Analyzer YR05114 is highly recommended due to its robust features and user-friendly design. It is advisable to conduct a thorough assessment of testing needs and laboratory workflow before making a purchase. Investing in this analyzer can lead to significant efficiency gains and cost savings in the long run.
In addition, consider requesting a quote to explore financing options that can make this crucial investment more accessible. The YR05114 represents a balance of quality and affordability in laboratory equipment.
