Sector Adaptations for the YR02306 Rotary Evaporator: Industrial, Clinical, Food, Veterinary, and Educational Applications
The YR02306 Rotary Evaporator is an essential tool in various sectors, providing excellent capabilities for evaporation, distillation, and separation of chemicals. This article delves into how this model can be perfectly adapted to meet the unique demands of different industries, including industrial, clinical, food, veterinary, and educational sectors.
Technical Specifications of the YR02306
| Parameter | Value |
|---|---|
| Model | YR02306 |
| Rotation Speed | 10~280 rpm |
| Vacuum Pressure Increasing Rate | <=0.33kPa/min |
| Temperature Range | RT+5~95℃ |
| Temperature Stability | ±1℃ |
| Temperature Control | Keyboard Input, Digital Display |
| Speed Control | Button Adjustment, Digital Display |
| Lifting Mechanism | Motorized Elevator |
| Lifting Distance | 150 mm |
| Lifting Speed | 10 mm/s |
| Rotary Motor Power | 40W |
| Heating Power | 1300W |
| Condensation Area | 0.126m2 |
| Evaporation Flask Size | 500 ml, 1000 ml |
| Receiving Flask Size | 1000 ml |
| Vacuum Sealing | Double Seal Rings Made of Teflon + Viton |
| Water Bath Size - Capacity | 250×130mm-6.5L |
| Evaporation Rate | Water: 23 ml/min, Ethanol: 26 ml/min |
| Power Supply | Main Machine: 100 V~240 V, 50/60 Hz; Water Bath: 110 V~, 60 Hz or 220-240 V~, 50/60 Hz |
| Ambient Temperature | 5~35℃ |
| Relative Humidity Environment | <=70 |
| Protection Class of Enclosure | IP20 |
| Pollution Prevention Grade | Grade 2 |
| Dimensions | 595W*390D*680Hmm |
| Net Weight | Main Machine: 10KG; Water Bath: 3.9KG |

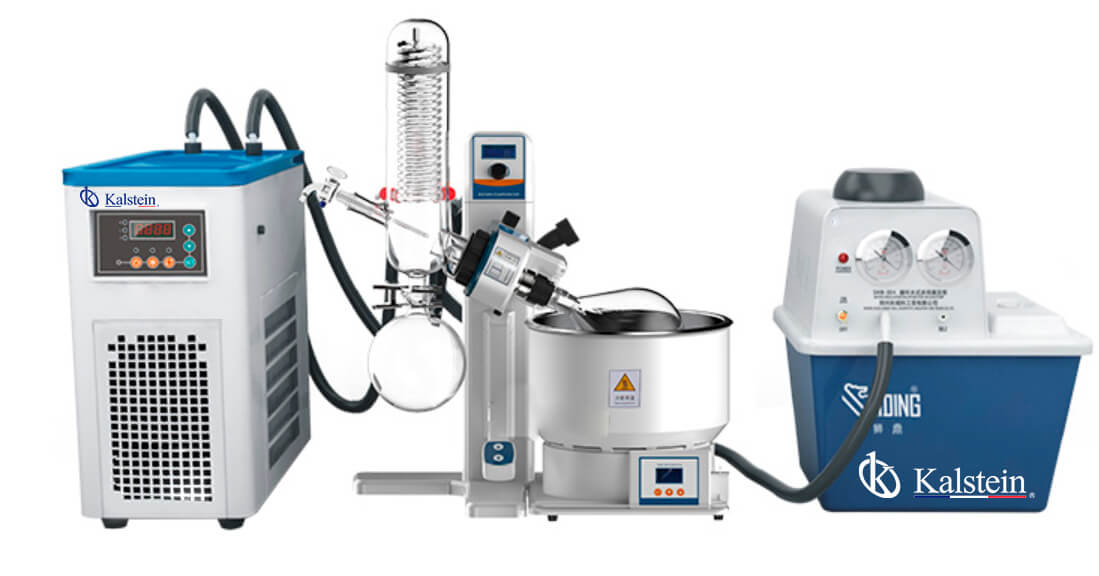

| The YR02306 Rotary Evaporator does not include vacuum pump or recirculator, which can be included as needed, the models would be YR02301 (Recirculator) + YR05158 (Vacuum Pump) for the complete set. | |
Adapting YR02306 for Industrial Applications
The YR02306 Rotary Evaporator is crucial in industrial environments where large volumes of solvents need to be efficiently evaporated or distilled. Its robust construction and versatile capabilities allow for tasks such as recovering solvents from mixtures or concentrating solutions. Industries that can benefit from this include chemical manufacturing, pharmaceuticals, and petrochemicals.
In industrial settings, the implementation of the YR02306 allows for the optimization of production processes. By utilizing the inherent advantages of this rotary evaporator, such as its adjustable evaporation flask angle and precise temperature control, companies can enhance their operational efficiency and reduce waste. Moreover, the use of a vacuum pump in conjunction with the YR02306 can significantly expedite evaporation rates while maintaining solvent integrity.
Clinical Applications of the YR02306
In clinical laboratories, the YR02306 Rotary Evaporator serves critical functions such as concentrating biochemical samples and processing extracts. The precise temperature control and stable operating conditions ensure that sensitive biological materials are not compromised during the evaporation process.
Clinical users can also take advantage of the adjustable flask and motorized lift, allowing for higher throughput when working with numerous samples. The dual-seal technology of the YR02306 ensures that samples remain uncontaminated, thus maintaining their integrity for diagnostic purposes. Additionally, support for a wide power supply range (100V to 240V) makes it compatible with various laboratory settings.
Food Industry Applications
The YR02306 Rotary Evaporator finds its niche in the food industry, particularly in flavor extraction and food processing. By enabling gentle evaporation of volatile compounds, it helps in retaining the integrity of flavors while concentrating extracts like essential oils or aromas.
Food scientists can utilize the YR02306 to develop new products, as it supports both batch and continuous processes, thus providing versatility in production. Furthermore, the low operating noise and efficient performance of the YR02306 make it an ideal candidate for food laboratories where a quality work environment is necessary.
Veterinary Applications of the YR02306
In veterinary contexts, the YR02306 can be employed for developing pharmaceuticals and extracts used in animal treatments. The ability to accurately evaporate solvents while preserving the necessary properties of active ingredients is vital in this field.
Veterinary researchers can leverage the YR02306's capabilities for creating formulations that require precise concentration of active components, ensuring that the final product is effective and safe for animals. This rotary evaporator not only improves the efficiency of veterinary pharmaceutical production but also enhances the quality of the end products.
Educational Uses of the YR02306
The YR02306 Rotary Evaporator is an excellent educational tool in chemistry and engineering labs. It allows students to understand the principles of evaporation, distillation, and separation techniques in a practical setting.
By integrating the YR02306 into the curriculum, educators can foster hands-on learning experiences that illustrate important scientific concepts. The rotary evaporator's user-friendly interface and adjustable settings make it suitable for students, providing a safe yet effective environment for experiments in fluid dynamics and thermodynamics.
Frequently Asked Questions
What are the primary applications of the YR02306 Rotary Evaporator in industrial settings?
The YR02306 Rotary Evaporator is primarily used for solvent recovery, concentration of solutions, and distillation processes in industrial settings such as chemical manufacturing and pharmaceuticals.
How does the YR02306 ensure the integrity of sensitive samples in clinical laboratories?
The YR02306 utilizes precise temperature control, dual-seal technology, and a stable operating environment to protect sensitive samples from degradation or contamination during the evaporation process.
What are the benefits of using the YR02306 in the food industry?
The YR02306 allows for gentle evaporation which preserves the flavor integrity of extracts, making it ideal for flavor development and concentration while operating quietly and efficiently.
Can the YR02306 be used for veterinary pharmaceuticals?
Yes, the YR02306 is suitable for producing veterinary pharmaceuticals, allowing for precise concentration and formulation of active ingredients required for effective animal treatments.
How can the YR02306 enhance educational experiences in laboratories?
The YR02306 provides hands-on learning opportunities for students studying chemistry and engineering, illustrating evaporation and distillation principles in a practical, user-friendly manner.
What are the critical features of the YR02306 Rotary Evaporator?
The YR02306 features include a wide temperature range, adjustable evaporation flask angle, precise temperature control, and a motorized lift mechanism, making it adaptable for various applications.
Is the YR02306 easy to integrate into existing laboratory setups?
Yes, with a power supply range of 100V to 240V and a compact design, the YR02306 can be easily integrated into existing laboratory setups across various sectors.
