Description

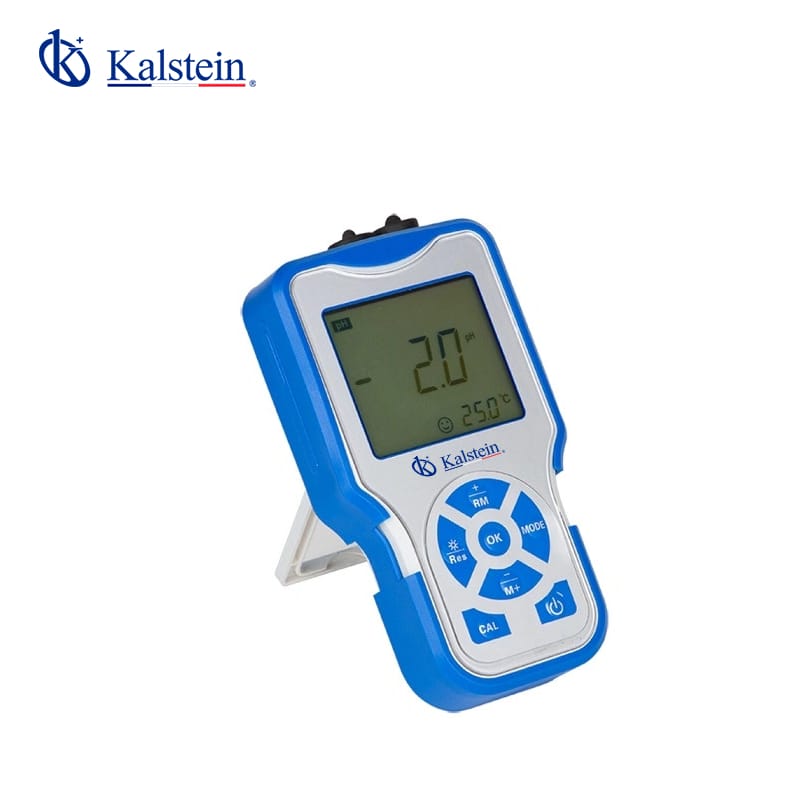

The YR01806 Pocket Conductivity Meter °C / °F is an advanced portable measurement device designed to simplify water quality analysis in various environments. Combining advanced technology and functionality, it features a large LCD display with white backlighting for optimal visibility even in low-light situations. With a smart microprocessor, it offers advanced functions such as automatic calibration, automatic temperature compensation (ATC), data storage, and alerts like low voltage warnings. Furthermore, it provides automatic recognition of pH buffer solutions and a wide measurement range to meet the precise demands of scientific and industrial applications.
Market Pricing
The YR01806 Pocket Conductivity Meter is positioned as an affordable solution in the portable measurement device market, with an average price range of 300 to 1100 USD. This pricing makes it attractive to users seeking precision without compromising their budget. For an exact price quote or to generate a personalized offer, visit our Kalstein Plus platform today.
Frequently Asked Questions
- How do I calibrate the YR01806 conductivity meter? The device automatically recognizes buffer solutions and provides calibration in 1, 2, or 3 points, according to European, American, and Chinese standards.
- What batteries are required? It requires two AA batteries for efficient operation.
- Is the product waterproof? Yes, it is IP57 rated, offering protection against dust and temporary water immersion.
Advantages and Disadvantages
Advantages: The YR01806 offers exceptional versatility with its ability to measure conductivity, TDS, salinity, and resistivity. Its 200-data-set storage capacity facilitates continuous analysis. Disadvantages: For some users, the number of batteries required may be a concern, although it is a minor inconvenience.
Field Use of the Product
The use of the YR01806 Pocket Conductivity Meter is straightforward: immerse the probe in the solution to be analyzed, and it quickly displays reliable results. This makes it ideal for field or laboratory analyses, even in humid areas, thanks to its IP57 certification.
Recommendations
To ensure optimal measurements, regular calibration is recommended, especially in cases of frequent environmental changes. Store the device in recommended ambient conditions (5 ~ 35 ºC and humidity ≤85%).
Features
- Large LCD display with backlighting.
- Integrated smart features.
- Multiple measurement ranges for diverse applications.
- Dustproof and waterproof (IP57).
- Powered by two AA batteries.
Technical Specifications
Model | YR01806 | |
pH
|
Measuring range | (-2.00~19.99)pH |
Resolution | 0.1/0.01 pH | |
Accuracy | Meter:±0.01pH; Overall: ±0.02pH | |
Input impedance | ≥1×1012 Ω | |
Stability | ±0.01 pH/3h | |
Temperature compensation | (0~100)ºC (Auto/manual) | |
mV
|
Measuring range | ±1999.9mV |
Resolution | 1mV | |
Accuracy | ±0.1% FS | |
Cond.
|
Measuring range
|
Conductivity: |
(0.00~19.99)μS/cm | ||
(20.0~199.9)μS/cm | ||
(200~1999)S/cm | ||
(2.00~19.99)mS/cm | ||
(20.0~199.9)mS/cm | ||
TDS:(0~100)g/L | ||
Salinity:(0~100)ppt | ||
Resistivity:(0~100)MΩ-cm | ||
Resolution | 0.01/0.1/1μS/cm; 0.01/0.1 mS/cm | |
Accuracy | ±1.0% FS, Overall:±1.5% FS | |
Temperature compensation | (0~100)ºC(Auto/manual) | |
Electrode constant | 0.1 / 1 / 10 cm-1 | |
Temp.
|
Measuring range | (0 ~ 100)ºC |
Resolution | 0.1ºC | |
Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
Other
|
Data storage | 200 sets |
Power | Two AA batteries (1.5V x2) | |
Ambient Temp. | 5 ~ 35 ºC | |
Ambient humidity | ≤85% | |
IP grade | IP57 Dustproof and waterproof | |
Dimensions/N.W. | (65×120×31)mm/180g | |
Shipping size/G.W. | (460×300×55)mm/1Kg |
