Description

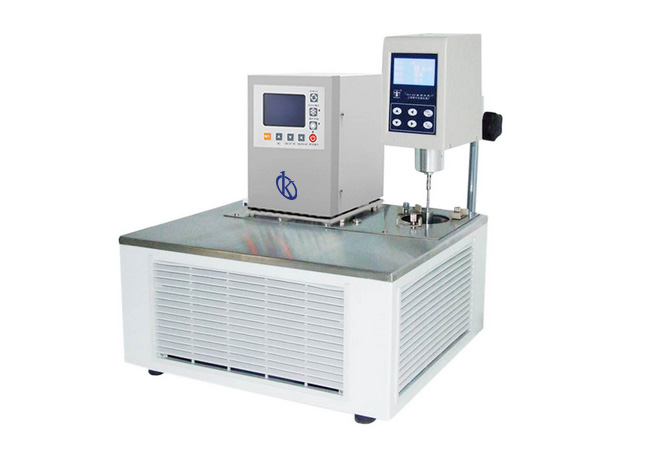

YR circulation bath is specially used for viscometers, high temperature control accuracy, low fluctuation.
Features
- YR Circulation bath is specially used for viscometers, high temperature control accuracy, low fluctuation
- Using high quality refrigeration compressor, fast cooling, fully sealed stirring motor, low noise, long serving life.
- LCD Display can show parameters clearly
- It has sensor broken protection, prevent malfunction caused by dry burning
- Special round opening for placing 500 – 250 ml tall beaker
- The bath also has external circulation, which can direct the controlled liquid to the external thermostatic cup
| Model | YR04985 | |
| Specification | Ø75 x 180mm | |
|
Performance
|
Temperature Range | -5 ~99.9°C |
| Temperature Resolution | 0.1°C | |
| Temperature Accuracy | ±0.1°C | |
| Temperature Fluctuation | ±0.2°C | |
|
Structure
|
Inner Chamber | High quality Steel plate material |
| Outer Case | Corrosion resistant 304 Stainless Steel | |
| Rated Power | 1 000W | |
| Temperature Control Mode | PID | |
|
Controller
|
Temperature Setting Mode | Touch Button Setting |
| Temperature Display | 3 Digital led display | |
| Heating Method | U-shaped heating tuve | |
| Additional Function | Deviation correction, menú key lock, power off compensation, power off memory, PID adjustable | |
| Sensor | Thermistor | |
| Safety Device | Over-temperature alarm, short circuit protection, overheat protection, sound-light alarm | |
|
Specification
|
Inner (WxDxH) (mm) | 280 x 140 x 180 |
| Exterior (WxDxH) (mm) | 400 x 400 x 420 | |
| Packing (WxDxH) (mm) | 260 x 460 x 450 | |
| Capacity | 6 Lts | |
| Cover Aperture | 75mm | |
| Cover Material | 304 Stainless Steel | |
| Inner Lid Numbere | One | |
| Net Weight (Kg) | 3.2 Kg | |
| Gross Weigh (Kg) | 5.6 Kg | |
